10. Verify the location of the Mobile platform and drill the appropriate number of mounting
holes for installation. The holes and slots may be used for stabilizing the unit on the
roof top.

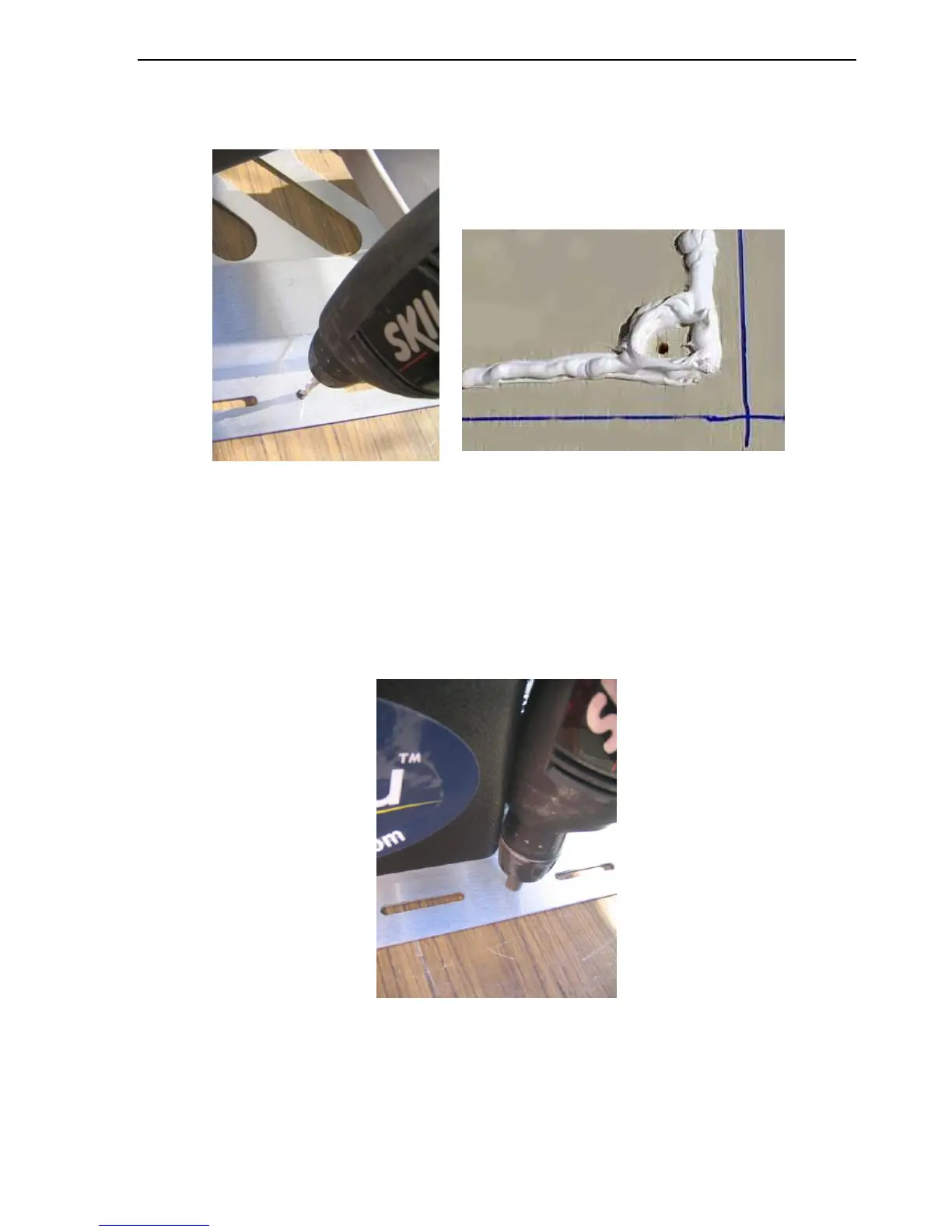

Fig. 15: Drilling the pilot holes and caulking the mounting holes on the roof
11. Remove the Mobile platform from the roof and caulk the mounting holes.
12. Ensuring the proper front/back orientation of the Mobile platform, lower the iNetVu®
system back over the pilot holes.
13. Insert the mounting bolts and torque them to 9-10 ft. lbs.
14. Apply a small quantity of good quality caulk to the bolt heads.
Fig. 16: Torque-down the mounting screws
