5. Attach Gas Spring Brackets to each side of the Reflector (See Fig 35)
a. Ensure that the Ball Joint Stud faces outwards (away from the centre of the
Reflector).
b. Align the brackets in the mounting holes
c. Insert and tighten the two (2) screws.
6. Remove the clips from the Ball Joints at the ends of the Gas Springs and place aside.

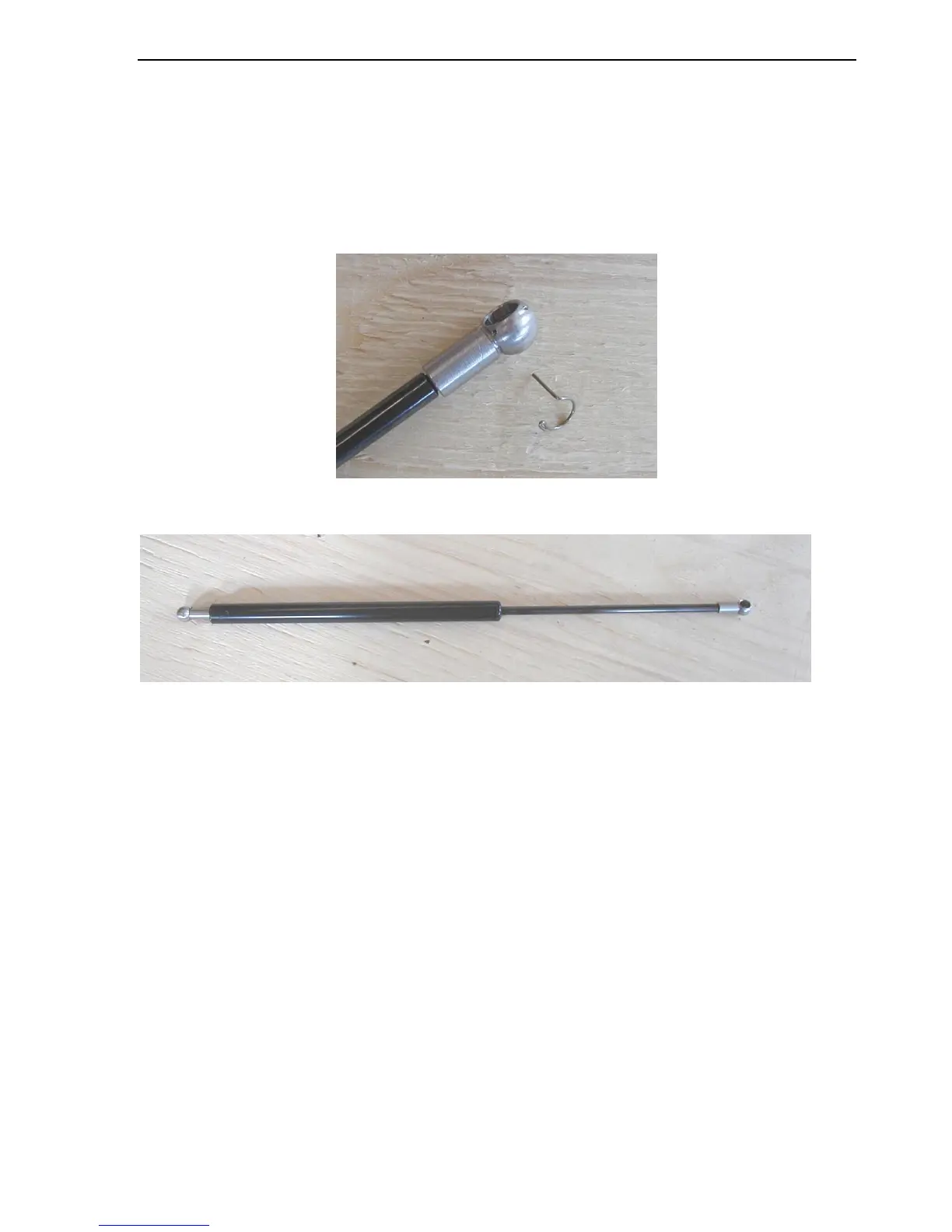

Fig. 35: Removed Clip from Ball Joints
Fig. 36: Gas Shock Spring
