iNetVu
®
Mobile Installation Manual Page 50 of 93
7. Snap-on the thicker end of the Gas Spring to the Reflector’s Gas Spring Brackets.
Once this end is snapped into place, re-insert clip.

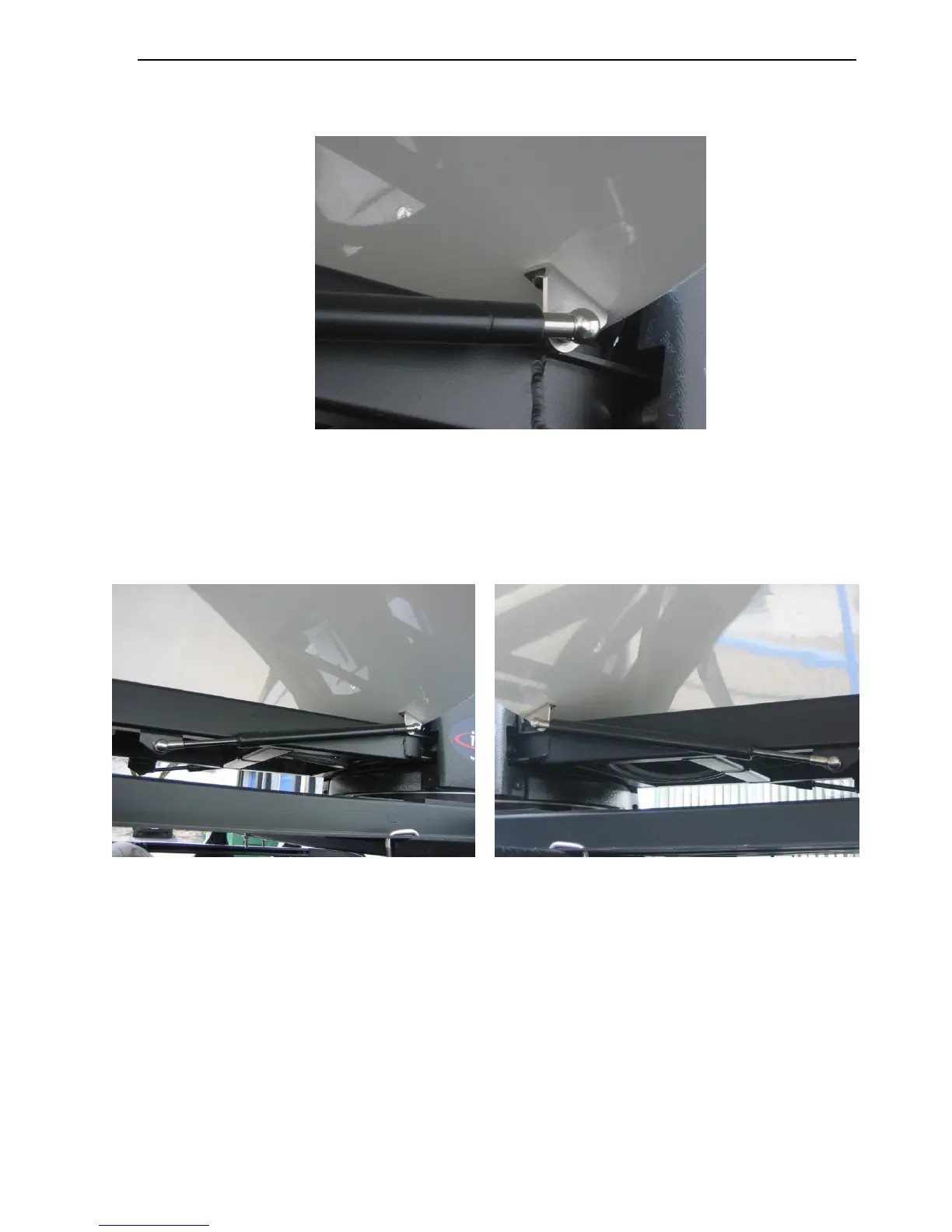

Fig. 37: Bracket and thick end of Gas Spring Installed
8. By hand, compress the Gas Spring, and snap-on the thinner end of the Gas Spring to
the Gas Spring Brackets on the Mobile Platform. Once this end is snapped into place,
re-insert clip.
Fig. 38: Gas Springs Installed on both sides of feed arm
9. Repeat steps 7 and 8 for both gas springs.
10. Congratulations! The 1.5m Reflector has been successfully installed on to an iNetVu
®
1500 Mobile Platform.
