iNetVu
®
Mobile Installation Manual Page 83 of 93

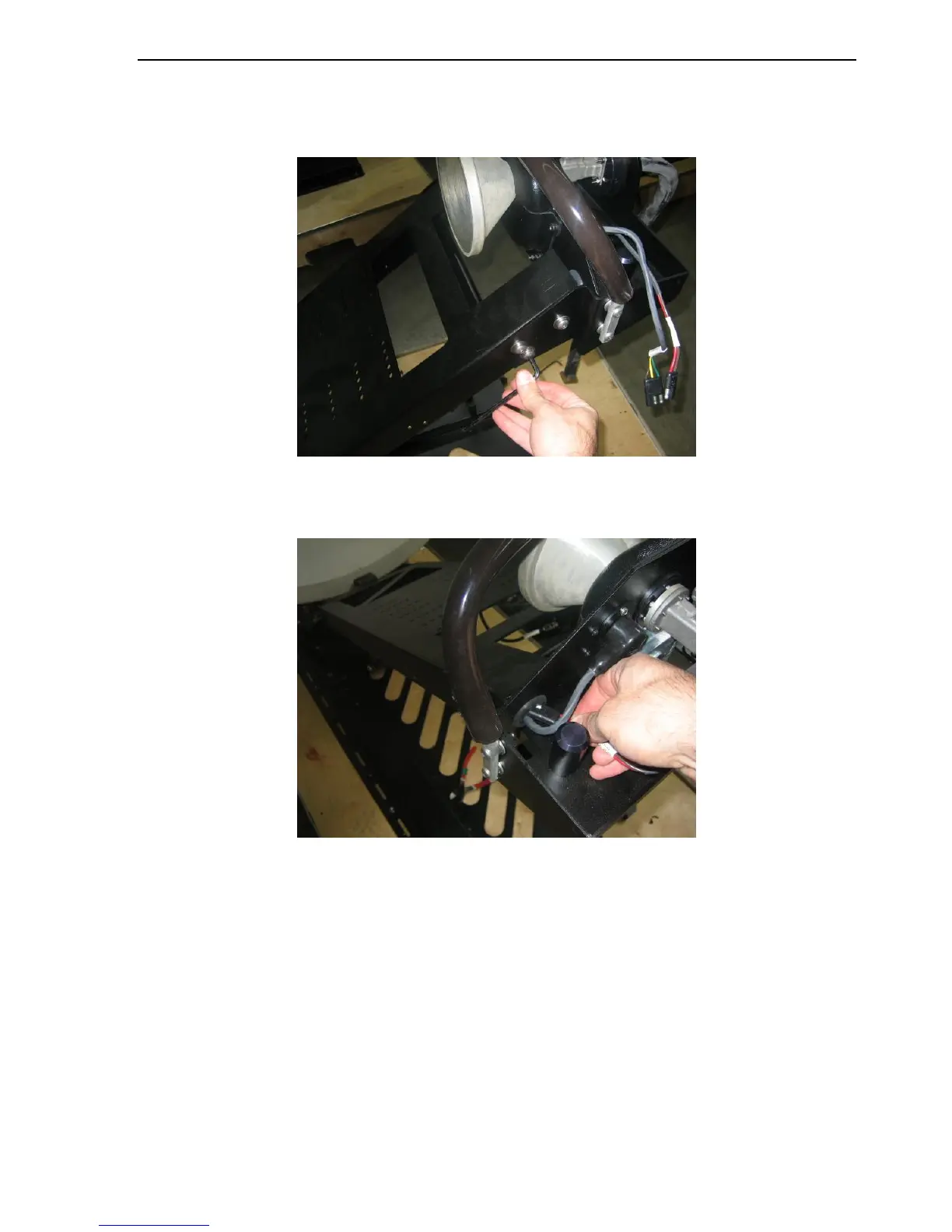

8) Attach the new polarization cage assembly to the feedarm using the 3/16” Allen screws
and rerun the RX coax cable through the polarization cage assembly in same area it was
removed.
9) Run the polarization motor and polarization potentiometer cables through the provided
hole on the polarization cage to the underside of the feedarm.
10) Attach the polarization motor, and polarization potentiometer cables to the internal wiring
harness under the feedarm. The internal wires should be labeled according to their
proper component.
