iNetVu
®
Mobile Installation Manual Page 92 of 93

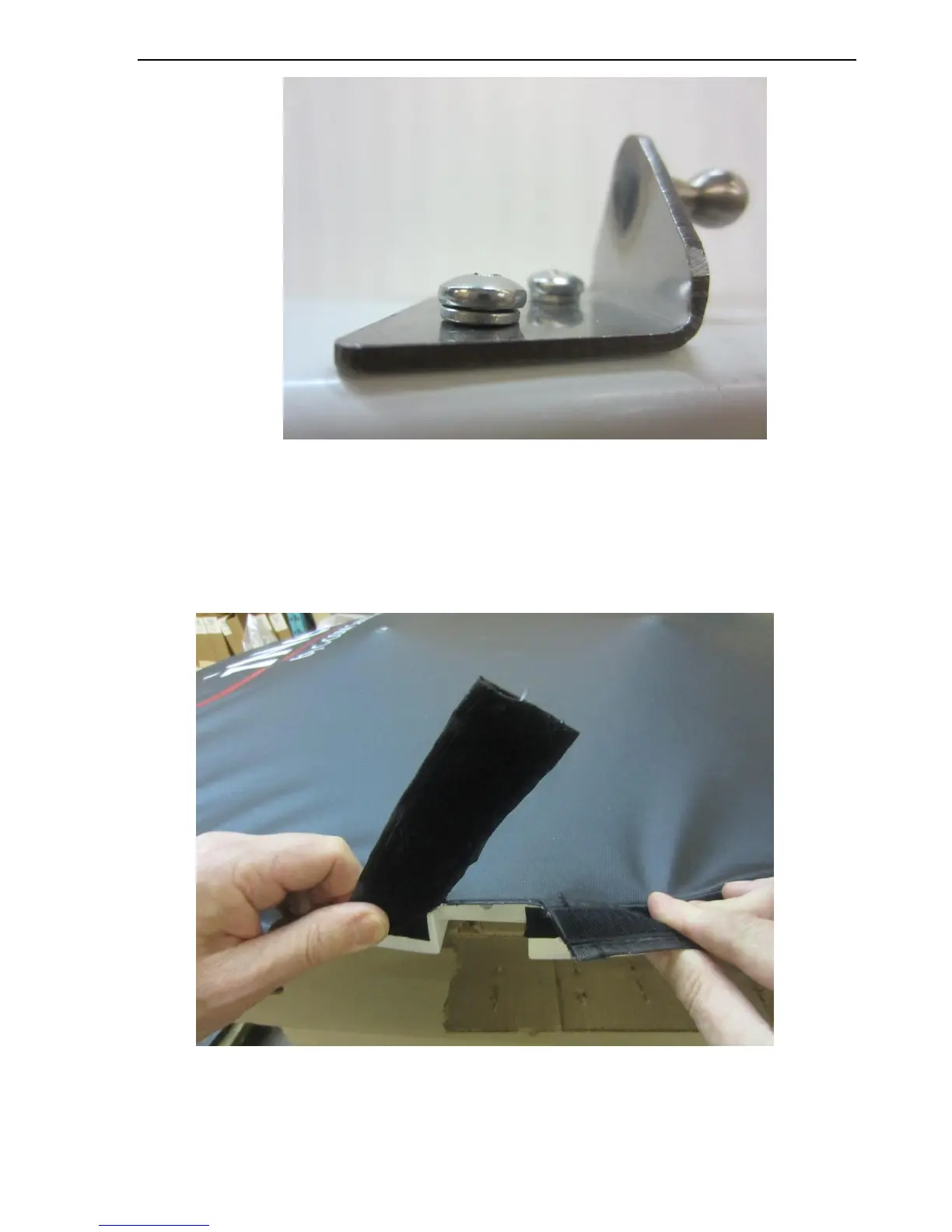

Fig. 79: Incorrect installation of Mounting Bracket Assy
9. Re-attach the Reflector Back Cover to the Reflector, leaving the strap at the bottom open.
