Setting up
Projection distance

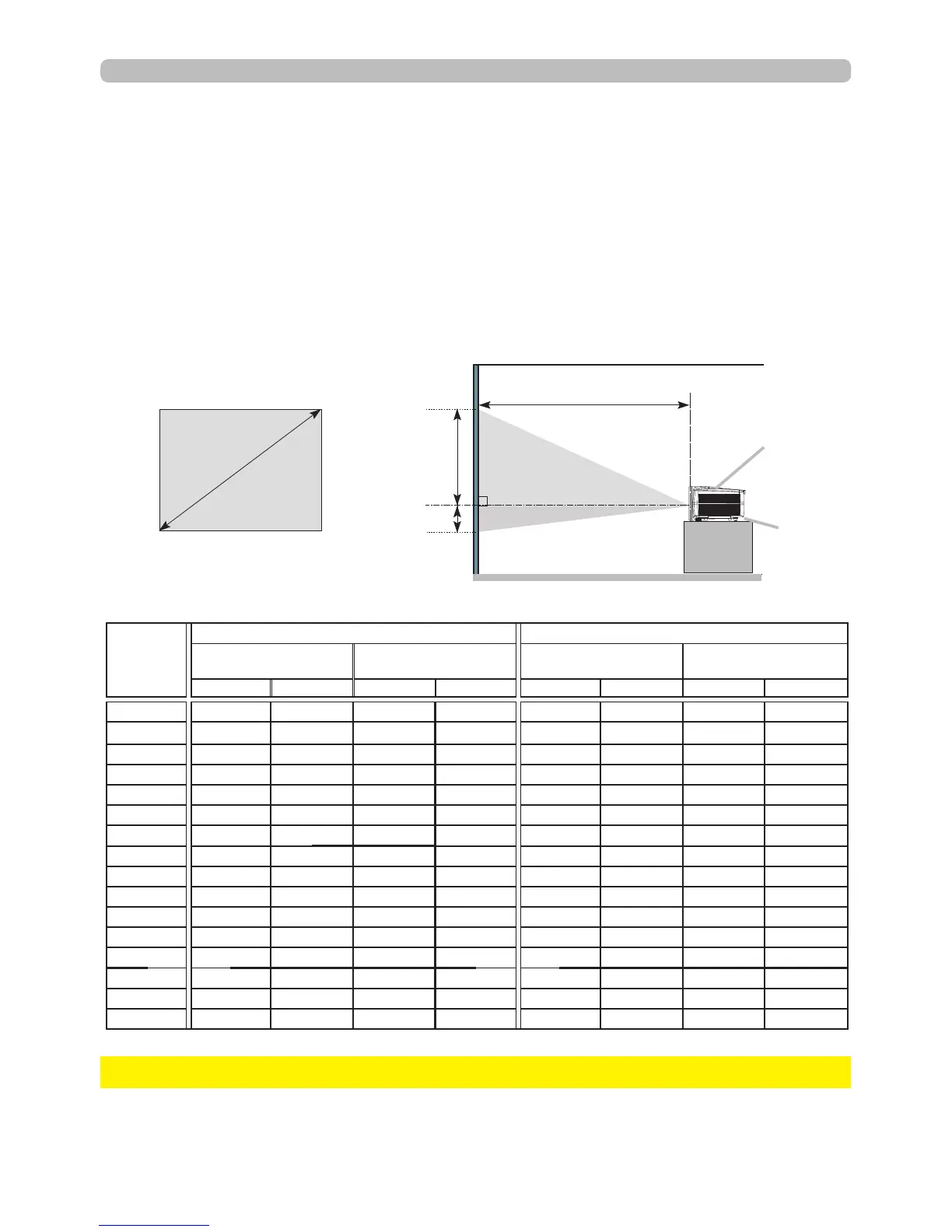

Refer to the following to arrange the projector and your screen. The values shown in the
following table were calculated for the model IN5542/IN5542c with the standard lens unit
LENS-068 that is adjusted to the center position. See the lens unit user's manual for your
specic situation. The values differ for every combination of the projector and the lens unit.
(a) Screen
size
[inch (m)]
4 : 3 screen 16 : 9 screen
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
min. max. down
up
min. max. down up
40 (1.0) 1.7 (66) 2.3 (89)
-23 (-9)
84
(33)
1.3 (53) 1.8 (72)
-33 (-13) 83 (33)
60 (1.5) 2.6 (103) 3.5 (136)
-34 (-13) 125 (49)
2.1 (83) 2.8 (110) -49 (-19) 124 (49)
70 (1.8) 3.1 (121) 4.0 (159)
-40 (-16)
146 (58) 2.5 (98) 3.3 (129) -58 (-23) 145 (57)
80 (2.0) 3.5 (139) 4.6 (183)
-45 (-18)
167 (66) 2.9 (112) 3.8 (148) -66 (-26) 165 (65)
90 (2.3) 4.0 (157) 5.2 (206)
-51 (-20)
188 (74) 3.2 (127) 4.3 (168) -74 (-29) 186 (73)
100 (2.5) 4.4 (175 5.8 (230)
-56 (-22)
209 (82) 3.6 (142) 4.7 (187) -82 (-32) 207 (81)
120 (3.0) 5.4 (211 7.0 (277)
-68 (-27)
251 (99) 4.4 (172) 5.7 (225) -99 (-39) 248 (98)
150 (3.8) 6.7 (266 8.8 (347)
-85 (-33)
313 (123) 5.5 (216) 7.2 (283) -123 (-49) 310 (122)
200 (5.1) 9.0 (356 11.8 (464)
-113 (-44)
418 (164) 7.4 (290) 9.6 (379) -164 (-65) 414 (163)
250 (6.4) 11.3 (447 14.8 (582)
-141 (-56)
522 (206) 9.2 (364) 12.0 (474) -206 (-81) 517 (204)
300 (7.6) 13.6 (537 17.8 (699)
-169 (-67)
627 (247) 11.1 (438) 14.5 (570) -247 (-97) 620 (244)
350 (8.9) 15.9 (628 20.7 (816)
-198 (-78)
731
(288) 13.0 (512) 16.9 (666)
-288 (-113) 724 (285)
400 (10.2) 18.2 (718 23.7 (934)
-226 (-89)
835 (329) 14.9 (586) 19.4 (762) -329 (-130) 827 (326)
500 (12.7) 22.8 (899 29.7 (1168)
-282 (-111)
1044
(411) 18.6 (734) 24.2 (954)
-411 (-162) 1034 (407)
600 (15.2) 27.4 (1081 35.6 (1403)
-339 (-133)
1253
(493)
22.4 (882) 29.1 (1145) -493 (-194) 1241 (488)
700 (17.8) 32.0 (1262 41.6 (1638)
-395 (-156)
1462
(576)
26.2 (1030) 34.0 (1337)
-576 (-227) 1447 (570)
(a)
(b)
(c) up
(c) down
* The values shown in the table are calculated for a full size screen: 1024×768
(a) Screen size (diagonal)
(b) Projection distance (±10%)
(c) Screen height (±10%), when the vertical lens shift is set full upward.
Projector top
Projector bottom
(Installation side)
►Do not use a polarized screen, since it can cause a red image.
NOTICE
