If the belts are worn or damaged, they should be replaced. This is a simple
procedure, and is carried out as follows:
WARNING!
Do not try to disassemble
Do not attempt to disassemble the validator
head or Note Float module – trying to do this
could cause personal injury and will damage the
unit beyond repair.

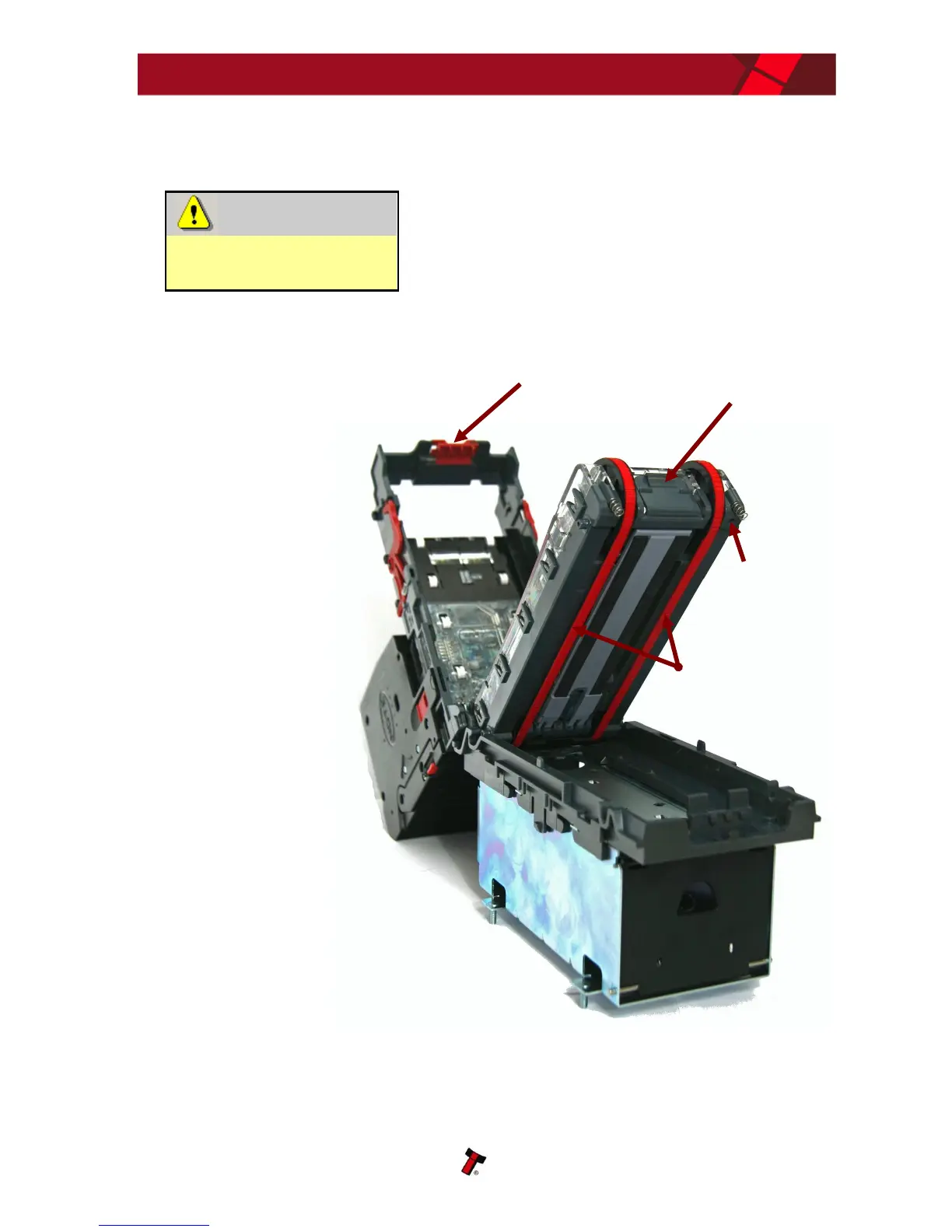

 Open the top of
the unit using the
Release catch
 Release the
lozenge by gently
pressing the
Lozenge release
catch
 Remove and
place the lozenge
on a clean dry
surface
 Press in the large
wheels to release
the belt tension
and then remove
the belts, sliding
them off the
smallest wheels
first
 Replace the belts
by fitting them
over the lozenge,
largest wheels
first
 Reassemble and
close the unit
Lozenge
release
catch
Drive belts
Release catch
Lozenge
