1 Commissioning Tools
1.1 LED Operating Panel
Dimensions
The following figures show the outline and installation dimensions of the LED
operating panel.

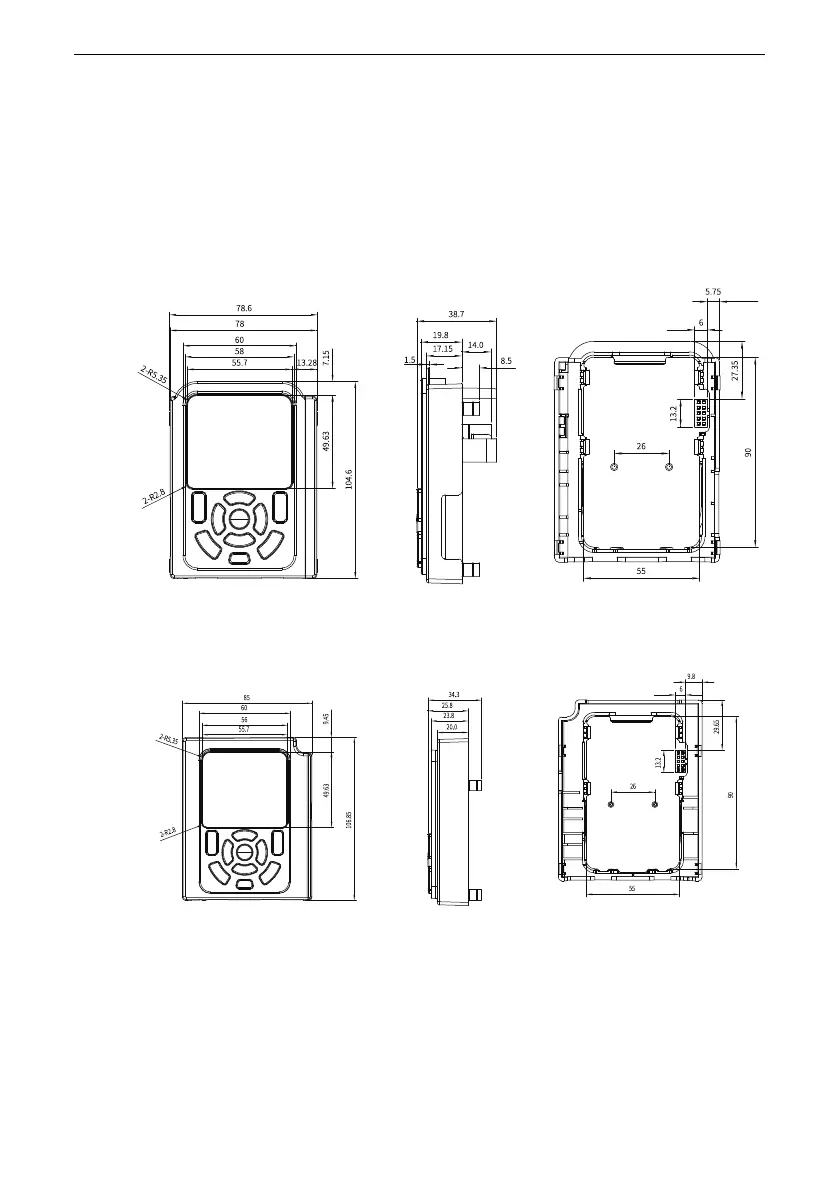

Figure 1‑1 Outline and installation dimensions of LED operating panel for T1 to T4 models
(mm)
Figure 1‑2 Outline and installation dimensions of LED operating panel for T5 to T12 models
(mm)
Components
The LED operating panel can be used to view the operating status and fault
information, set parameters, and so on. The following figure shows the operating
panel.
