Chapter: Installation
46
M1
0-1
73
13-EN

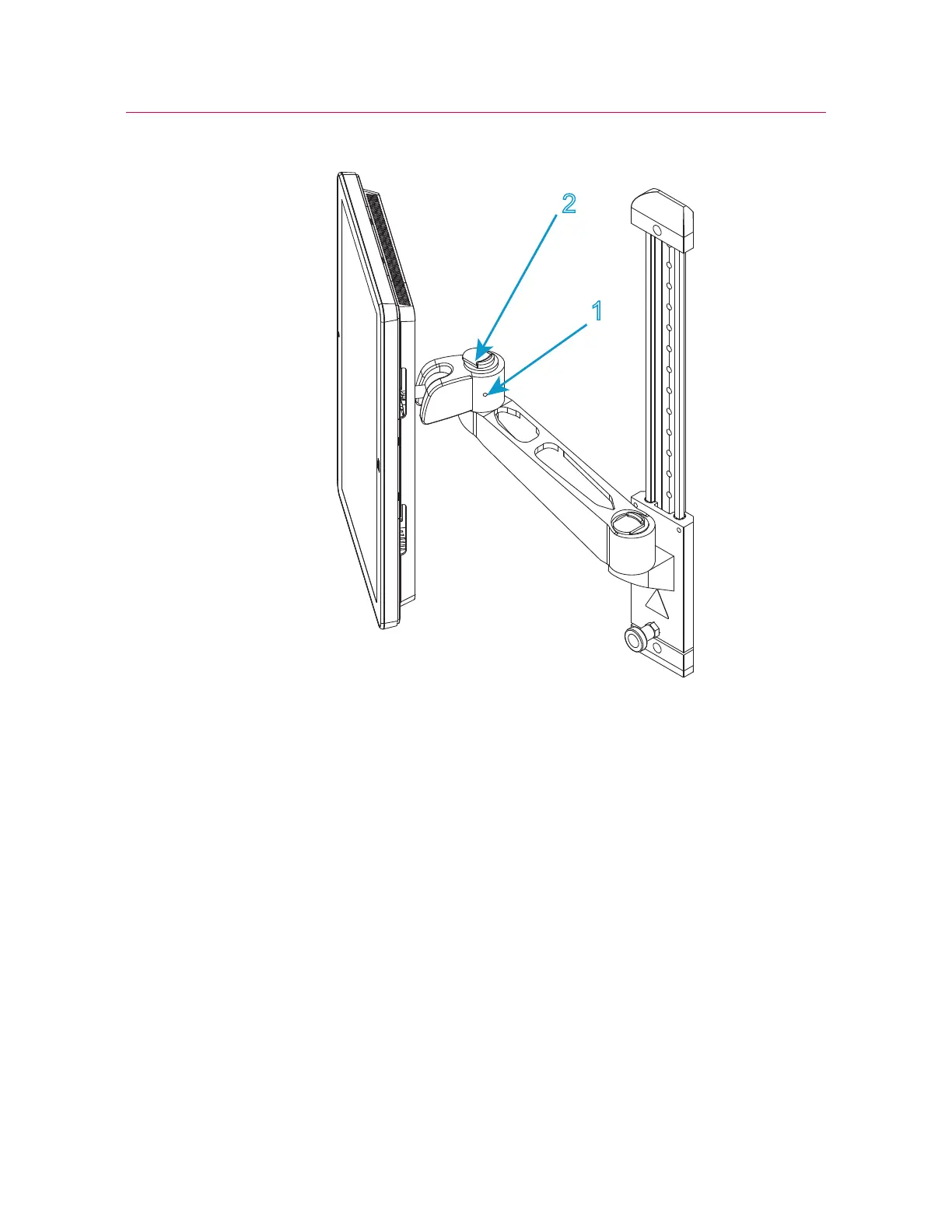

Figure 10. Mounting arm
3.
If necessar
y
, loosen th
e set scre
w on the side
of the “elbow” on the mounting arm (1
in
Figure
1
0
on page
46
).
4.
Operate the release mechanism on t
op of the “elbow” (2 in
Figure
1
0
on page
46
)
and lif
t the Bluehill
®
Operator Dashboar
d clear of the mounting arm (
Figure
1
1
on
page
47
).
1
2
45
47
