Connections
En-18
If you select the input selector button, the signal from
the component connected to the assigned jack is
played.
• Before making any AV connections, read the
manuals supplied with your AV components.
• Push plugs in all the way to make good connections
(loose connections can cause noise or
malfunctions).
• To prevent interference, keep audio and video
cables away from power cords and speaker cables.
Connections

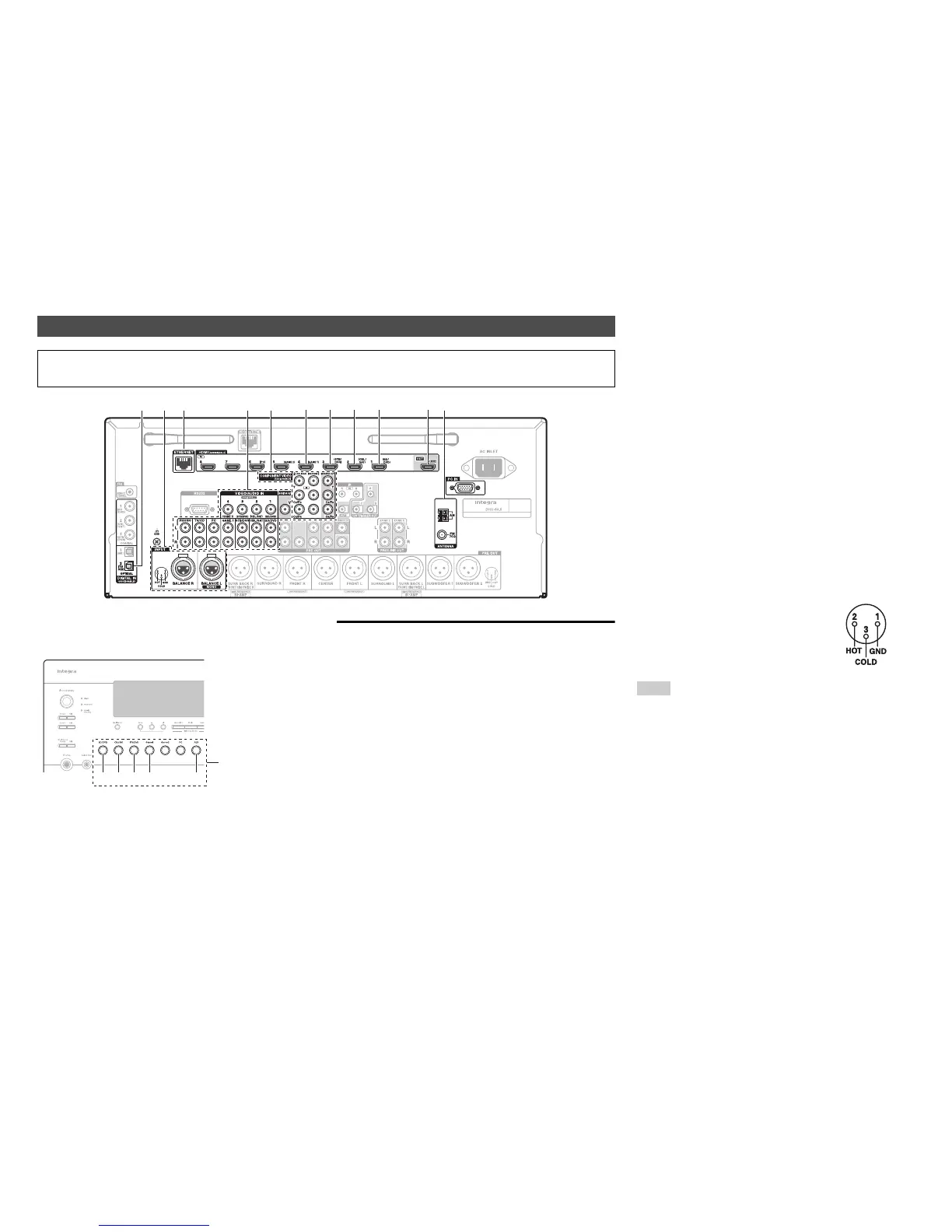

Connecting the TV/AV components
Before connecting the power cord, connect all of your speakers and AV components. To display the setup
menu on the TV screen, connecting the TV to HDMI OUT is required.
ABCDE HGLF
J
I
BC
DE
K
Input selector
buttons
A
Use this jack to connect to the HDMI input of the TV.
If your TV doesn’t support Audio Return Channel
(ARC)
*1
, you need to connect an optical digital cable
together with the HDMI cable to jack
F
.
Another TV can be connected to the
HDBaseT(TM) port by using TIA/EIA568B (both
ends) and CAT5e (or higher category)
compatible straight cable. We recommend an
STP cable. Connect the AV controller to your TV
using an HDBaseT™-enabled device. Refer to
your devices’ instruction manual for details.
*1
ARC is the function that carries the audio signal
from the TV to jack A. With ARC, a single HDMI
cable can connect the TV and the AV controller.
B
Use this jack to connect to your Blu-ray Disc/DVD
player, etc.
C
Use this jack to connect to the Satellite/cable set-
top box, etc.
Tip
• To listen to the audio of a component connected via HDMI
through your TV’s speakers, enable “HDMI Through”
(
➔ page 77) and set the AV controller to standby mode.
•
In the case of Blu-ray Disc/DVD players, if no sound is output
despite following the above-mentioned procedure, set your
Blu-ray Disc/DVD player’s HDMI audio settings to PCM.
• Connect a turntable (MM) that has a built-in phono preamp
to TV/CD IN, or connect it to PHONO IN with the phono
preamp turned off. If your turntable (MM) doesn’t have a
phono preamp, connect it to PHONO IN. If your turntable
has a moving coil (MC) type cartridge, you’ll need a
commercially available MC head amp or MC transformer to
connect to PHONO IN. See your turntable’s manual for
details. If your turntable has a ground wire, connect it to the
AV controller’s GND screw. With some turntables,
connecting the ground wire may produce an audible hum. If
this happens, disconnect it.
D
Use this jack to connect to the set top box/digital
video recorder, etc.
E
Use this jack to connect to the game consoles, etc.
G
Use this port to connect to a LAN port on a router
so the AV controller can be connected to your
home network.
H
Use jack and terminal here to connect the
supplied FM antenna and AM loop antenna.
I
Use this jack to make connections using an
analog audio cable.
With this connection, you can also enjoy analog
audio from external components while you are in
Zone 2/3.
J
Use this jack to make connections using a
component video cable.
K
Use this jack to connect to the camcorder/MHL-
enabled mobile device, etc.
L
Use this jack to connect to the CD player, etc.
*2
To select the balanced input,
see “Audio Selector”
(
➔
page 73
). The AV
controller’s balanced
INPUT
jacks are wired as shown.
To Next Page
