Advanced Operations
En-82
Multi Zone
In addition to the main listening room, you can also enjoy playback in the other room, or as we call Multi Zone.
And, you can select a different source for each room.
Connecting the Zone Speakers to an Additional Amplifier
This setup allows 7.1-channel playback in your main listening room and 2-channel stereo playback in Zone 2/3.
Note
• With the default settings, the Zone 2/3 volume must be set on the Zone 2/3 amplifier. If your Zone 2/3 amplifier has no volume
control, change the setting so that you can set the Zone 2/3 volume on the AV controller. See “Multi Zone” (➔ page 76).

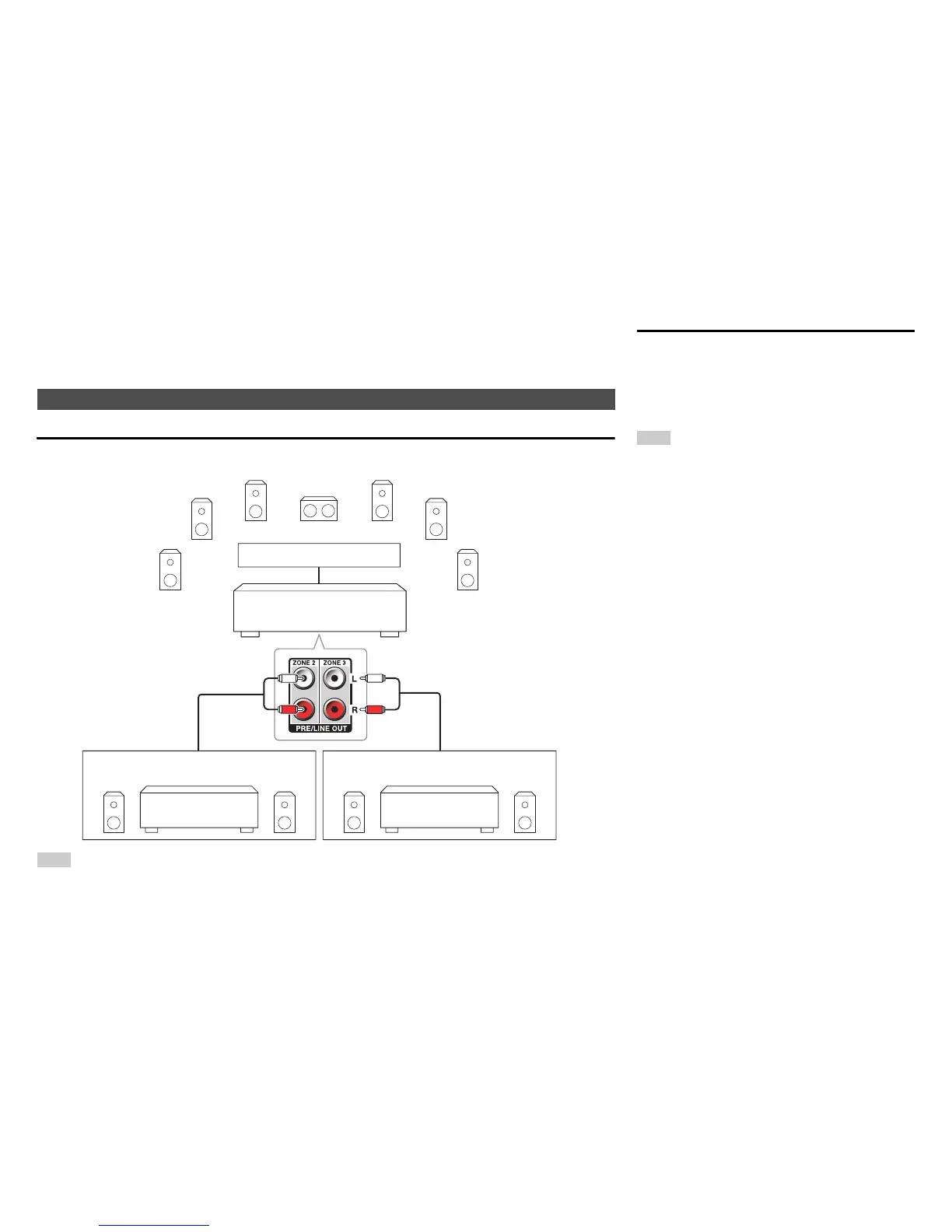

Making Multi Zone Connections
Main room
Zone 2
Receiver/
integrated amp
Receiver/
integrated amp
Zone 3
Multichannel power amp
AV controller
Zone 2 Video Output
By connecting the TV used in Zone 2 and the
HDBaseT(TM) port on the AV controller with
TIA/EIA568B (both ends) and CAT5e (or higher
category) compatible straight cable, you can enjoy
the audio and video via HDMI on the TV in Zone 2 at
most 100 meters away from the AV controller.
Tip
• Connect the AV controller to your TV using an HDBaseT™-
enabled device. Refer to your devices’ instruction manual
for details.
• If you use HDBaseT(TM) in Zone 2, make sure to set
“Zone 2 Monitor Out” to “HDBaseT(TM)” (➔ page 60).
• Video and audio signals from an HDMI input will be output
to HDBaseT(TM).
• The information of connected component appears on a TV
in Zone 2 by pressing Display.
