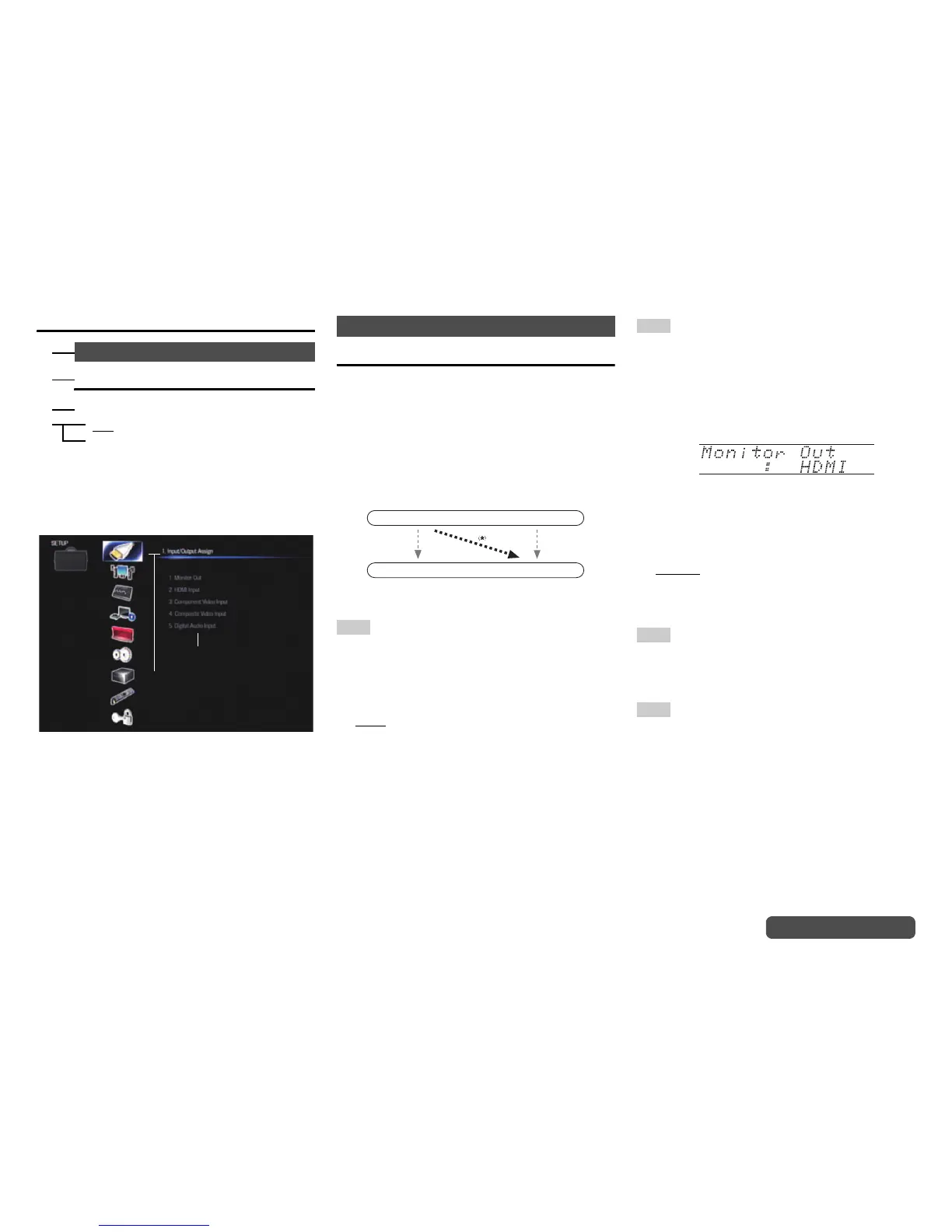

Advanced Operations
En-60
Operating procedure (➔ page 59)
Explanatory Notes
a Main Menu
b Sub Menu
c Setting target
d Setting options (default setting underlined)
Monitor Out
On the “Monitor Out” settings, you can select
whether or not to have the video sources’ images
output through the HDMI/HDBaseT™ output.
If you connect your TV to HDMI/HDBaseT output,
“Monitor Out” setting is automatically set and
composite video and component video sources are
upconverted
*
and output.
Note
• See “The video and audio signal flow” (➔ page 20) for
charts showing how the “Monitor Out” and “Resolution”
settings affect the video signal flow through the AV
controller.
■ Monitor Out
` HDMI
:
Select this if your TV is connected to HDMI OUT.
` HDBaseT(TM):
Select this if your TV is connected to
HDBaseT(TM).
` Both:
Select this if your TVs are connected to HDMI
OUT and HDBaseT(TM). Video signals are
output from both HDMI and HDBaseT outputs at
the resolution supported by both TVs.
Note
• The “HDMI Through” setting is only available for the HDMI
OUT jack (➔ page 77).
Operating on the AV controller
■ Zone 2 Monitor Out
` Not Use
` HDBaseT(TM)
When this setting is enabled, the TV connected to
HDBaseT(TM) can be used as the TV of Zone 2.
Tip
• On the connected component, select the mode in which the
delay between the video and audio does not occur much if
the video signal delay occurs during the playback on the
video component connected to the AV controller.
Note
• This setting cannot be selected if the “Monitor Out” setting
is set to “HDBaseT(TM)” or “Both”.
• When this setting is set to “HDBaseT(TM)” and “GAME2” is
selected as the input source for Zone 2, if this setting is
changed to “Not Use”, the input source for Zone 2 will be
changed to “Zone 2 Selector: Source” (➔ page 83).
Speaker Configuration
■ Subwoofer
` Yes
` No
2. Speaker Setup
a
b
d
c
Main Menu
Sub Menu
1. Input/Output Assign
IN
OUT
Composite video,
component video
HDMI
HDMI/HDBaseT
Composite video,
component video
1
Press Monitor Out on the front panel.
The current setting is displayed.
2
Press Monitor Out on the AV controller
repeatedly to select:
` HDMI, HDBaseT or Both.
To Next Page
