Advanced Operations
En-83
See “Multi Zone” (➔ page 76).

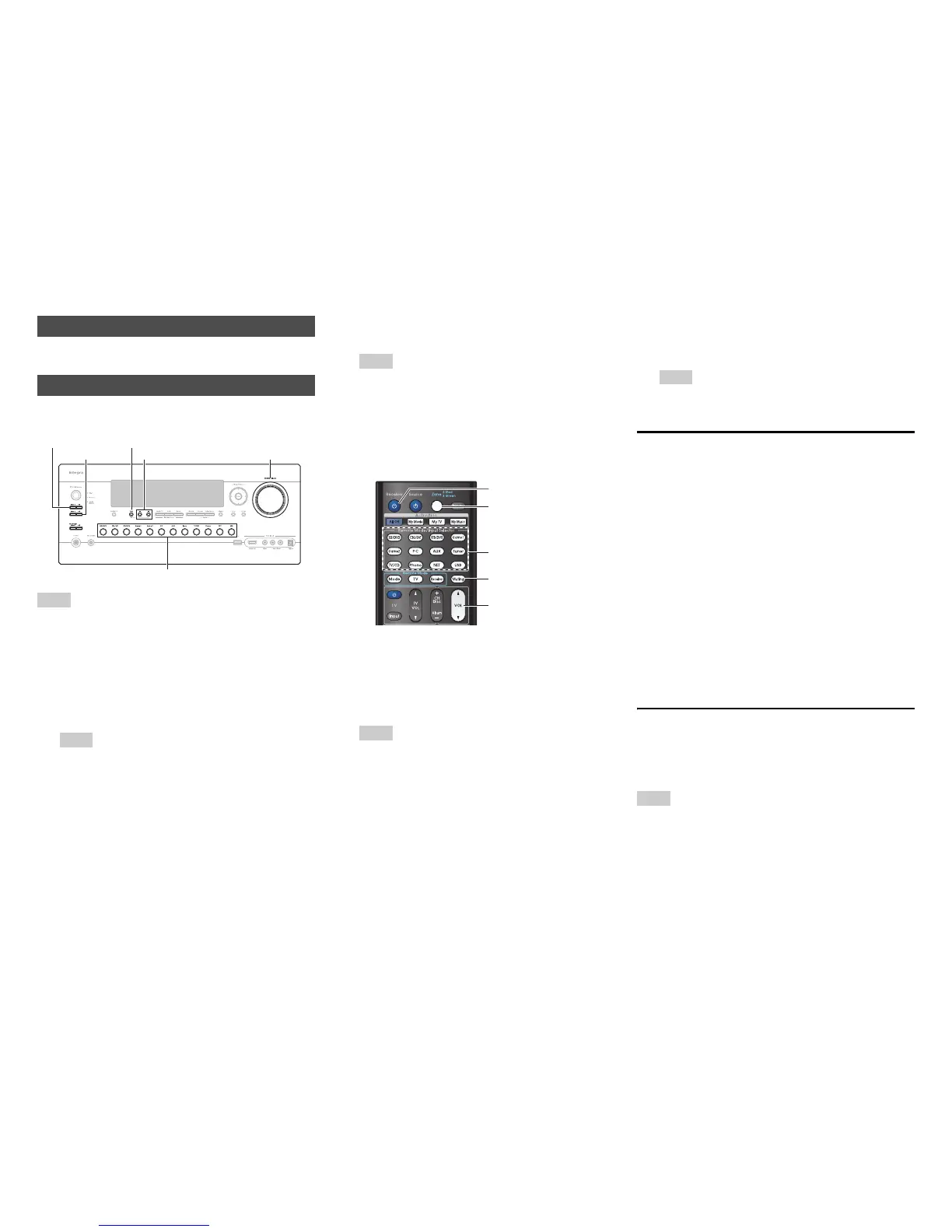

■ Operating on the AV controller
Tip
• The Whole House Mode function shares the input source of
main room with Multi Zone (➔ page 52).
■ Operating on the remote controller
To control Zone 2/3, you must press Zone on the
remote controller first.
Zone turns red when Zone 2 is on, and green when
Zone 3 is on.
Adjusting the Volume for Zones
■ Operating on the remote controller
■ Operating on the AV controller
If your Zone 2/3 speakers are connected to a receiver
or integrated amplifier in Zone 2/3, use its volume
control to adjust the volume.
Muting Zones
■ Operating on the remote controller
Tip
• To unmute, press Zone followed by Muting again. Zones
can also be unmuted by adjusting the volume.
Setting the Zone 2/3 Out
Controlling Multi Zone Components
1
To turn on Zone 2/3 and select an input source,
press Zone 2 or Zone 3 followed by an input
selector button within 8 seconds.
Zone 2/3 turns on, the Z2 or Z3 indicator lights on
the AV controller’s display.
Tip
• The corresponding trigger output goes high (+12 V).
To select AM or FM, press Zone 2 or Zone 3 and
the Tuner input selector repeatedly.
To select the same source as the main room’s,
press Zone 2 or Zone 3 twice. “Zone 2 Selector:
Source” or “Zone 3 Selector: Source” appears
on the AV controller’s display.
Input selector buttons
Zone 2, Off
Zone 3, Off
Tone
Master Volume
–, +
2
To turn off Zone 2/3, press Off for each Zone.
The zone is turned off.
Tip
• The corresponding trigger output goes low (0 volts).
1
Press Zone repeatedly, then point the remote
controller at the AV controller and press
8Receiver.
Zone 2/3 turns on, the Z2 or Z3 indicator lights on
the AV controller’s display.
Tip
• The corresponding trigger output goes high (+12 V).
2
To select an input source for Zone 2/3, press
Zone repeatedly, followed by an Input Selector
button.
To select AM or FM, press Zone and the Tuner
input selector repeatedly.
8Receiver
Muting
VOLq/w
Zone
Input selector buttons
3
To turn off Zone 2/3, press Zone repeatedly,
followed by 8Receiver.
The zone is turned off.
Tip
• The corresponding trigger output goes low (0 volts).
1
Press Zone repeatedly.
2
Use VOL q/w.
1
Press Zone 2 or Zone 3 (the Z2/Z3 indicator on
the AV controller’s display flashes).
2
Use Master Volume control within 8 seconds.
1
Press Zone repeatedly, and then press Muting.
