Safety Information and Introduction
En-9
See “Connecting the AV Controller” for connection
(➔ pages 12 to 23).
a uREMOTE CONTROL jack
b ETHERNET port
c RS232 port
Terminal for control.
d Wireless antenna
When the AV controller is connected to the
network by wireless, adjust the position of the
antenna (➔ pages 30, 34).

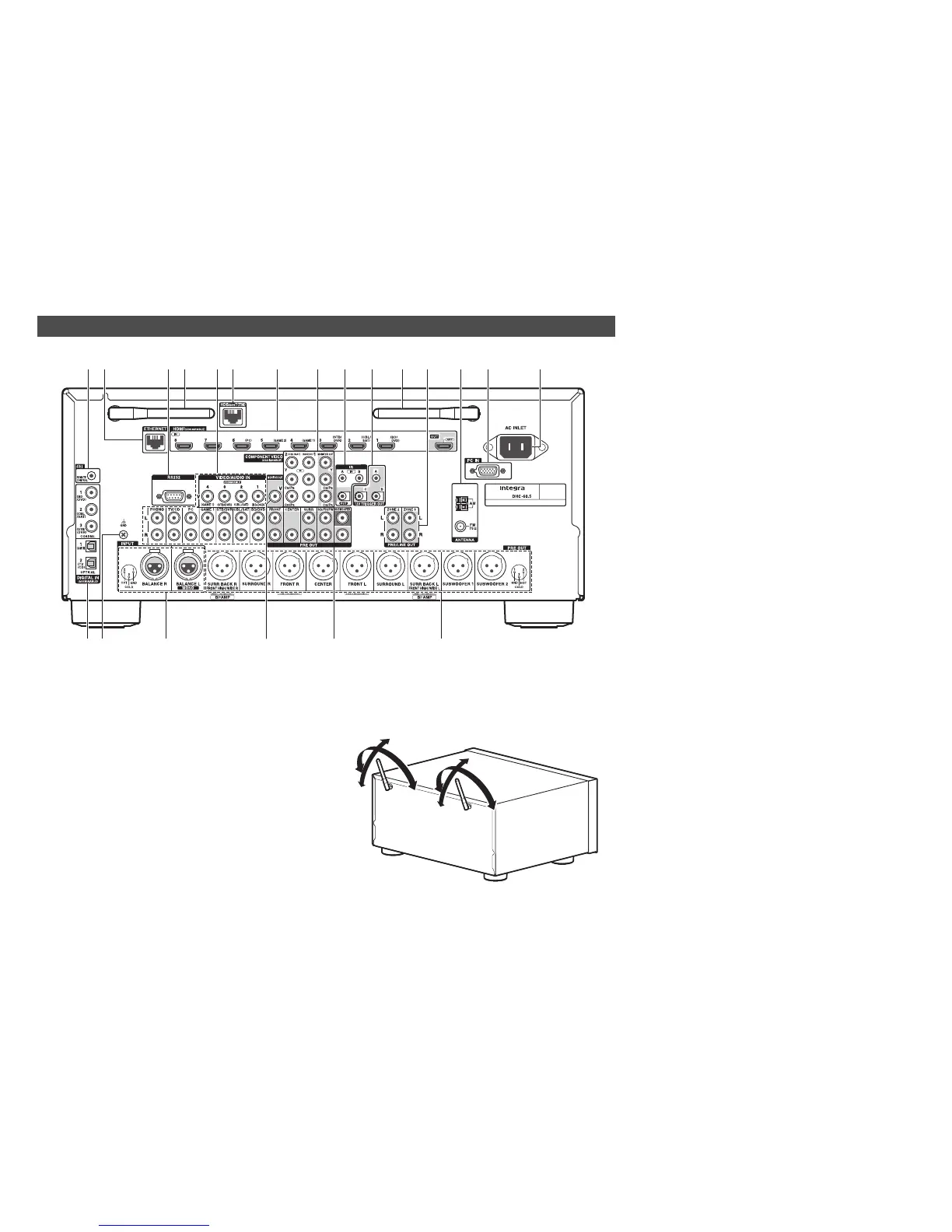

Rear Panel
o qpsrt
aec
d d l mbfhgij nk
90°
90°
180°
180°
e Composite video and analog audio jacks
(BD/DVD IN, CBL/SAT IN, STB/DVR IN, GAME 1
IN, PC IN, TV/CD IN, PHONO IN)
f HDBaseT(TM) port (Custom installer use only)
The sticker is placed on this port when purchased.
Remove the sticker before use. Do not connect
this port and an Ethernet port on the network
devices.
g HDMI IN and HDMI OUT jacks
h COMPONENT VIDEO IN and MONITOR OUT
jacks
i IR IN A/B and OUT jacks
j 12V TRIGGER OUT A/B/C jacks
k ZONE 2 and ZONE 3 PRE/LINE OUT jacks
l FM ANTENNA jack and AM ANTENNA terminal
m PC IN jack
n AC INLET
o DIGITAL IN COAXIAL and OPTICAL jacks
p GND screw
q INPUT jacks (BALANCE L/R)
r MONITOR OUT V jack
s PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R, SB/FH/FW
L/R, SUBWOOFER)
*
SB···Surround Back, FH···Front High, FW···Front Wide
t PRE OUT jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK/FRONT HIGH/WIDE L/R,
SUBWOOFER 1, SUBWOOFER 2)
To Next Page
