Intellian v100GX Installation And Operation Manual

v100 – Marine Satellite Communication System
12

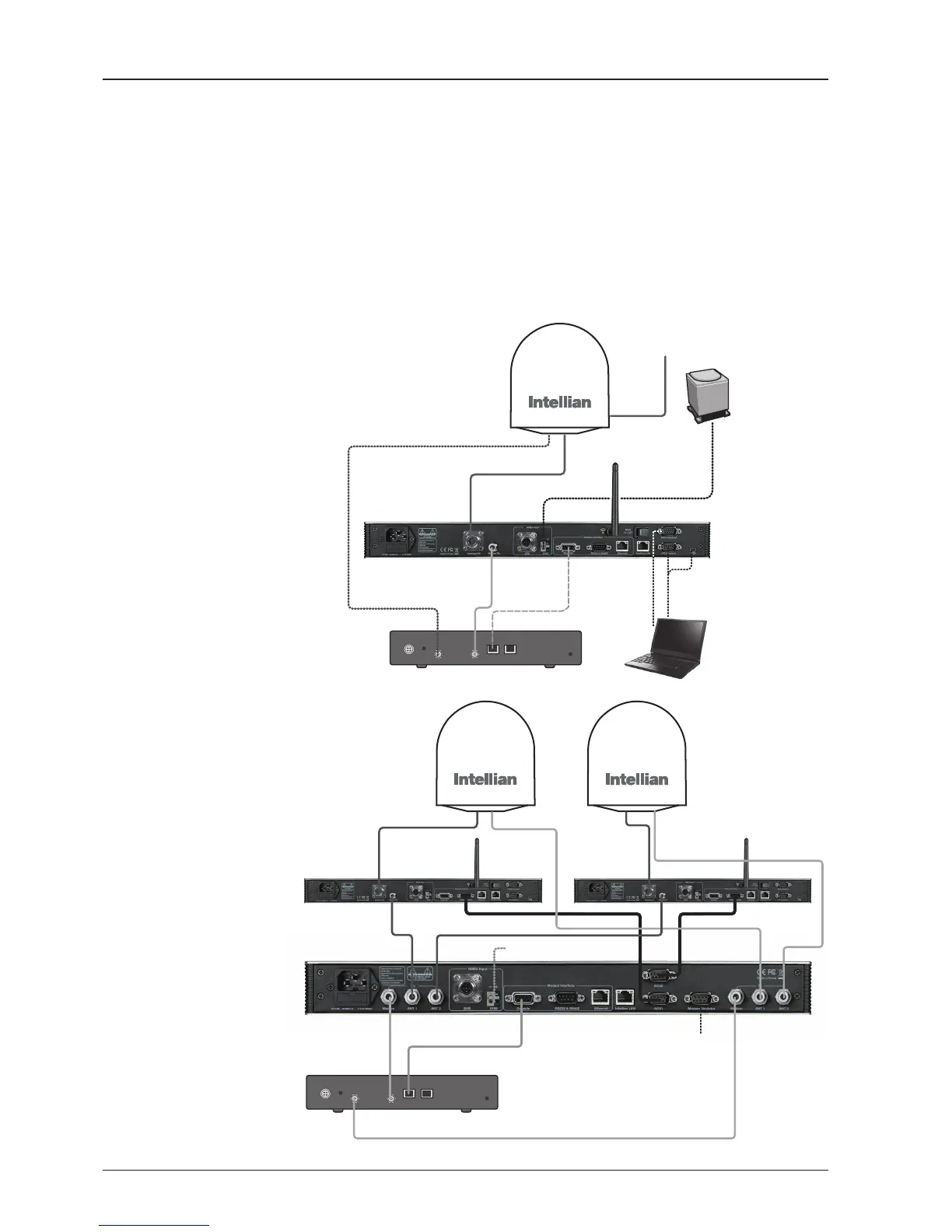

System Conguration
For your satellite communication system to work properly, the system will have to
be connected with all of the provided components as shown in the gure below.
Separate purchase of a satellite modem, ship’s gyrocompass, and Intellian Dual
VSAT Mediator may be required.
Basic System
Configuration
Dual System
Configuration
AC 100 ~ 240V
(50~60Hz, 1A)
AC 100 ~ 240V
(50~60Hz, 4A)
Ship’s Gyrocompass
(Not supplied)
Ship’s Gyrocompass
(Not supplied)
Modem Tx
Modem Rx
Modem Rx 2Modem Rx 1
Modem Rx
Modem Tx
Modem
Interface
Modem
Interface
Modem Tx
Antenna Rx
Antenna Rx 1
Antenna Rx 2 Antenna Tx 2
Antenna Tx 1
NMEA
Antenna Control Unit
Antenna Control Unit 1
Mediator
Antenna Control Unit 2
Satellite Modem
(Not supplied)
Satellite Modem
(Not supplied)
BUC
Interface
PC
Interface
PC
PC
AC 100 ~ 240V
(50~60Hz)
