Intellian v100GX - Mounting the Radome; RF Cable Connections

v100 – Marine Satellite Communication System
28
Cable Entry
Hatch
Radome Bottom
Radome Hatch
ø44.5cm (17.5”)
BOW

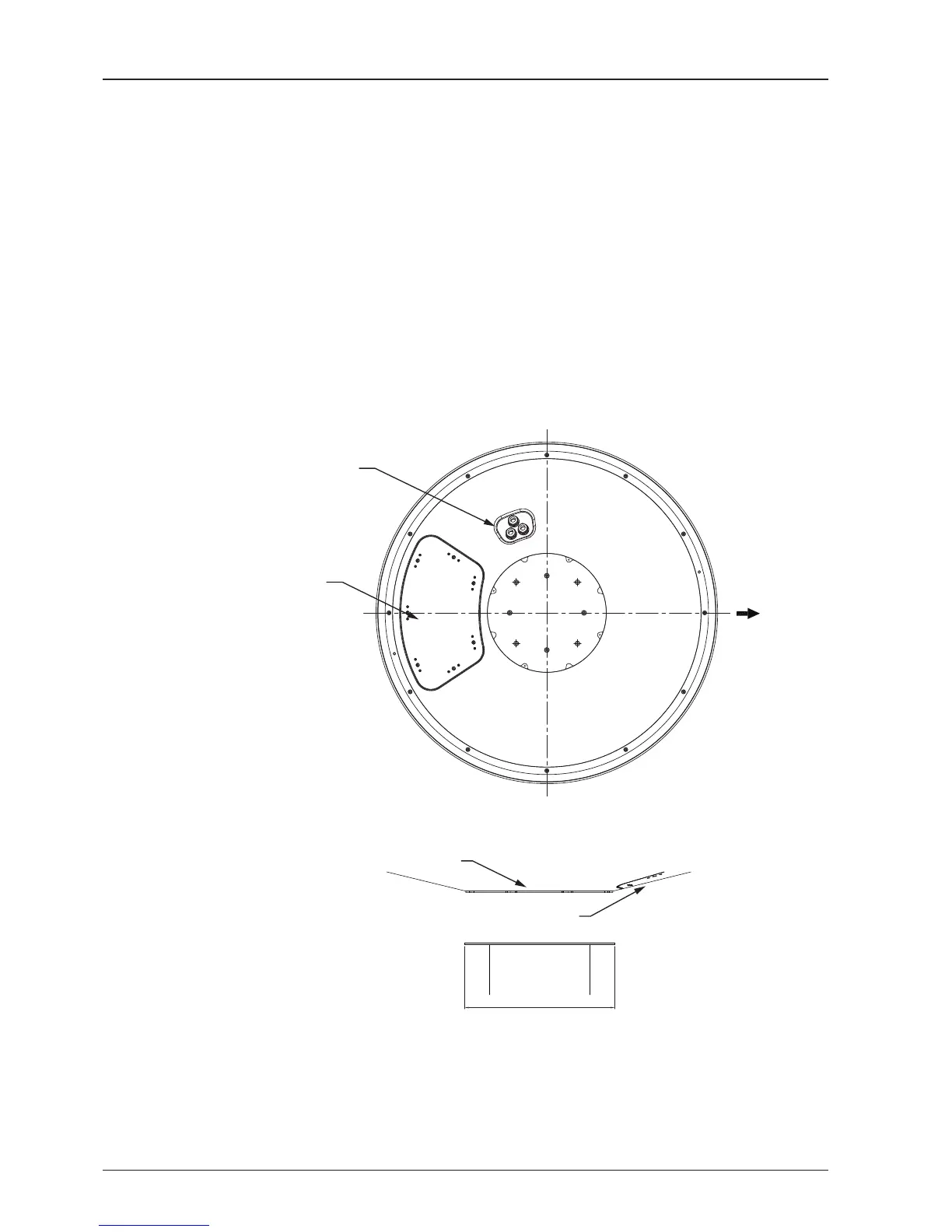

Antenna Mounting Templates
The mounting holes must be in the exact same place as shown in the diagram
below.
Bow direction
