Appendix B: Modem Connection
Integrated with iDirect INFINIT5000

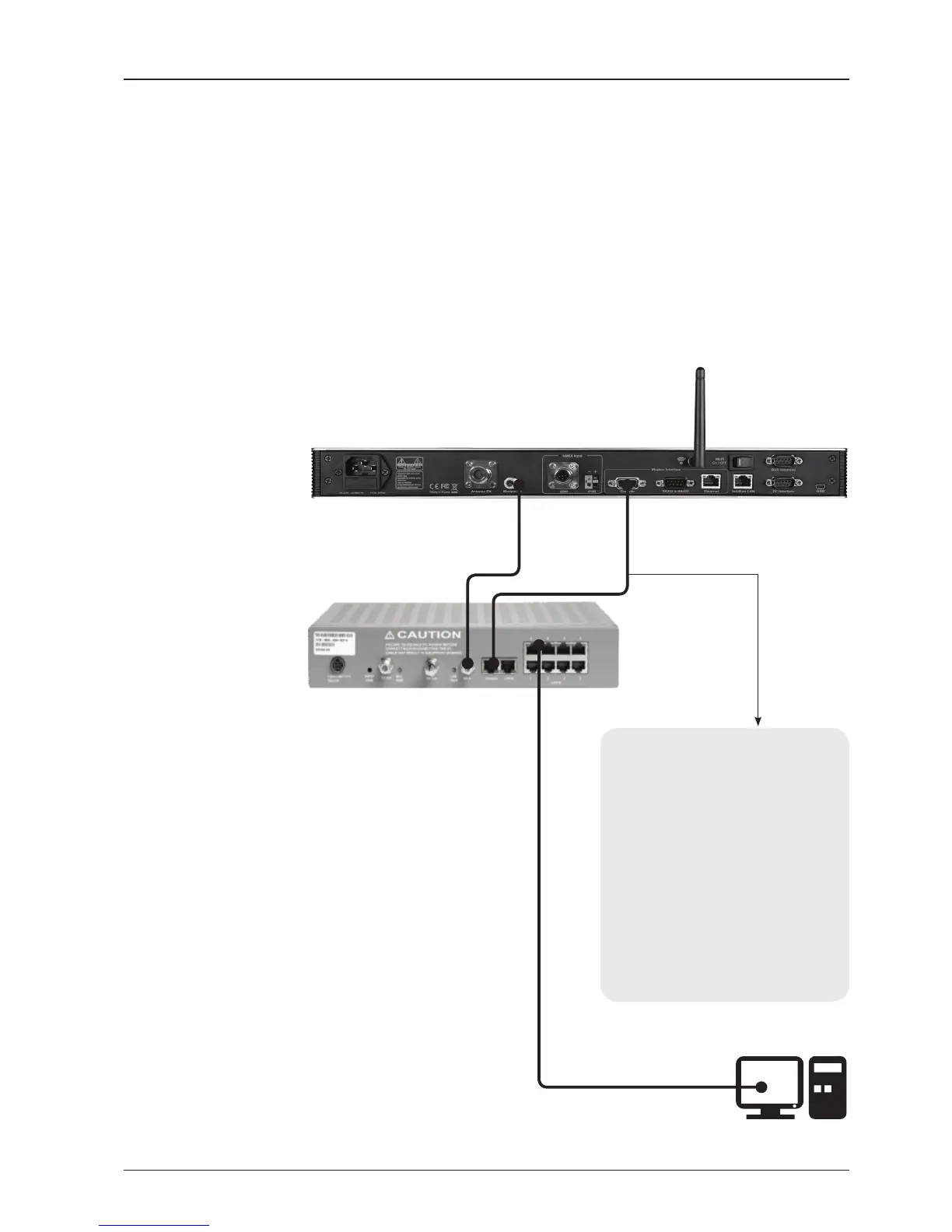

• iDirect Modem interface through the Console Port
Modem Rx Modem Interface
iDirect INFINITI 5000
Antenna Control Unit
Internet / Email
Interface Protocol
• GPS OUT +
• GPS OUT -
• External Lock
• TX Mute
Interface cable is supplied
with the antenna.
