Intellian v100GX - Secure the RF Cables

v100 – Marine Satellite Communication System
30
Mounting plate
Min. 1cm(0.4”)
Max. 3cm(1.2”)
Support Pedestal
Appr. ø25.4cm(10”)
Min 60cm(24”)
Max 150cm(60”)
Position the Radome
The radome should be positioned with the BOW marker aligned as closely as
possible to the ship’s centerline.

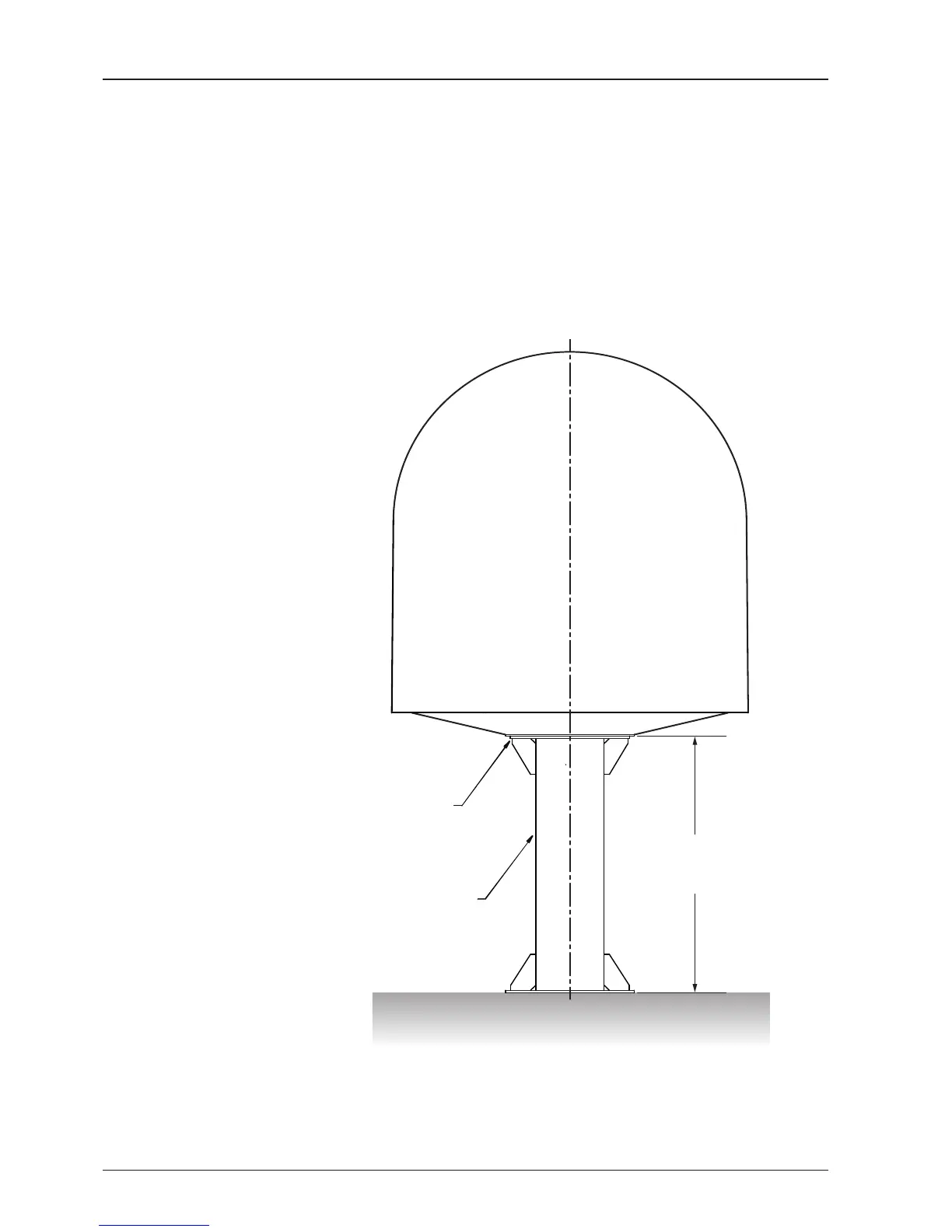

Recommended size of the
support pedestal
