Intellian v100GX Installation And Operation Manual

149
APPENDIX

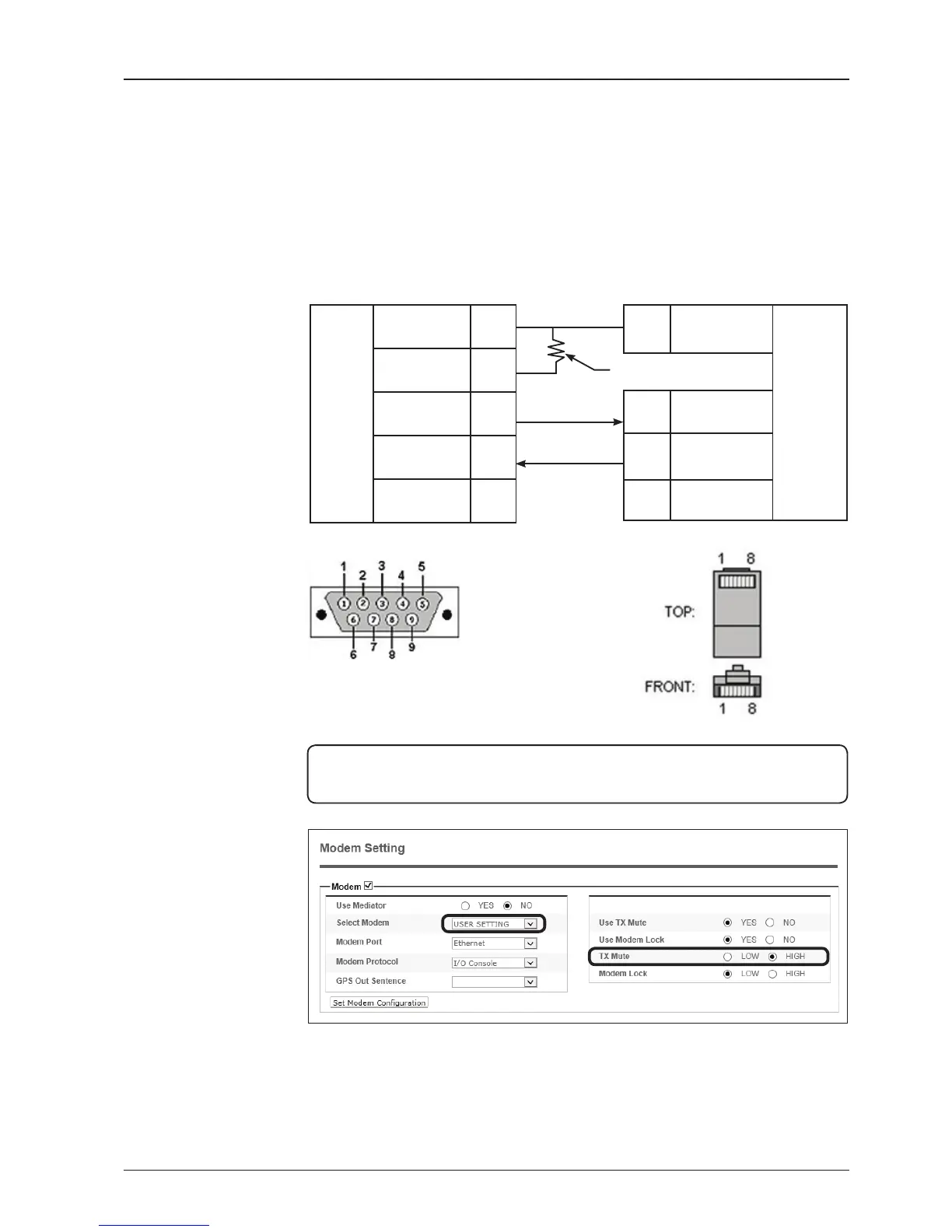

DSUB
9 PIN
MALE
TX MUTE 4
+5V 6
GPS+ 2
RX LOCK 3
GND 1
7 TX MUTE
RJ-45
MALE
PLUG
6 GPS+
2 RX LOCK
4 GND
ACU Console Modem Console Port
Insert 5k Ω Pin#4 & 6
5kΩ
NOTE: The TX Mute parameter of iDirect I/O conguration needs to be changed from
Low to High. Go to the Modem Setting on a left side bar after opening the Aptus Web,
and change the TX Mute parameter as seen in the below.
