Intellinet 561426 - Port Mirroring; Port Speed Limit

13
24-Port Gigabit Ethernet PoE+ Web-Managed Switch with
4 Gigabit Combo Base-T/SFP Ports
User Manual
Item Description
Aggregate port number This is the link aggregation group (LAG) number
Select the port to join the aggregate port Select the member ports that belong to this LAG

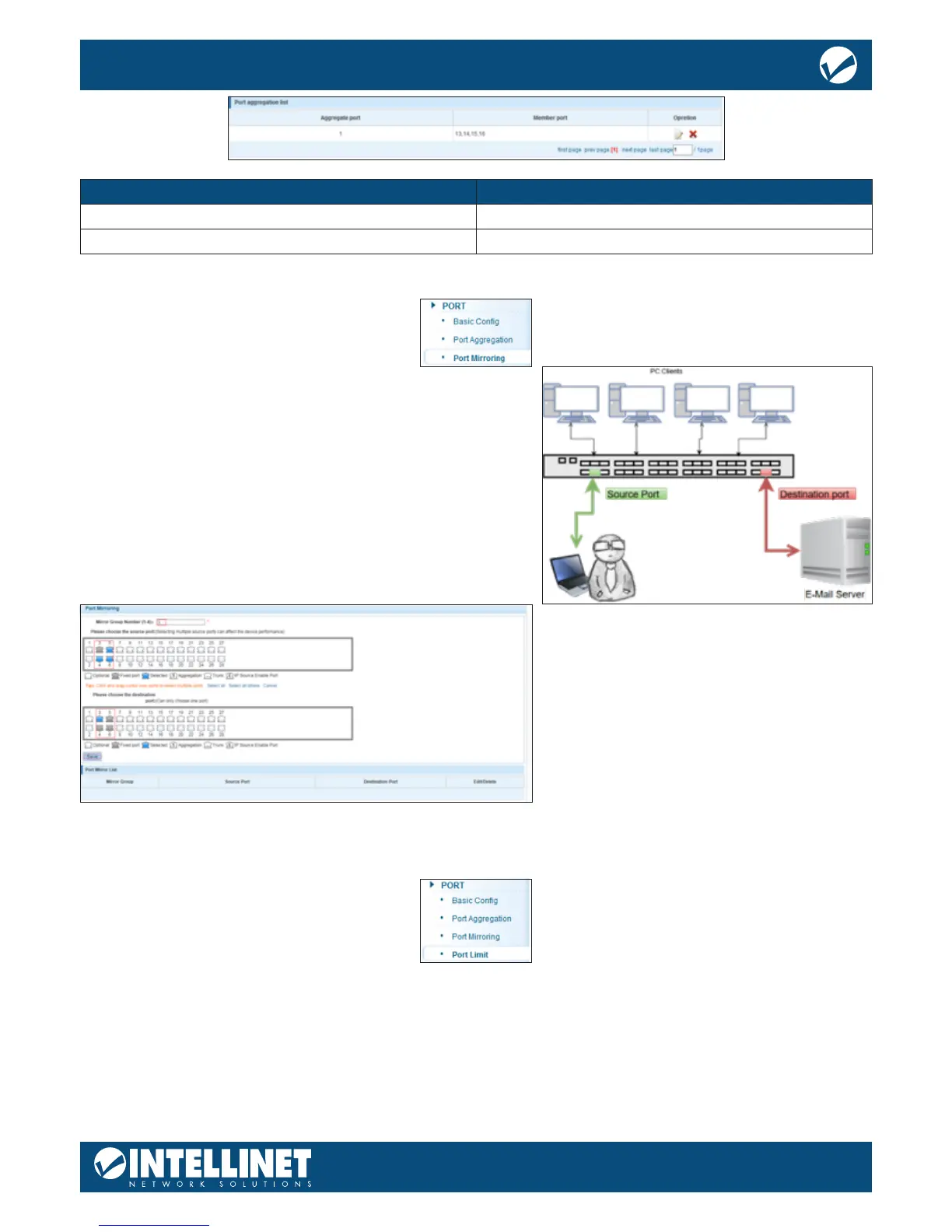

PORT MIRRORING
Port mirroring is the ability of a network switch to send a
copy of network packets seen on a switch port or ports to a
network-monitoring device connected to another switch port
(i.e., a computer equipped with a packet snier utility). The
switch provides up to four groups for port-mirroring settings.
The example below shows setting up one mirror group where
all trac occurring on ports 4, 5 and 6 is being mirrored to
port 3.
PORT SPEED LIMIT
This feature allows you to limit the data rates for a particular port on the Intellinet Network Solutions switch.
When the data rate exceeds user-congured values, the switch drops packets immediately. Rate limiting is
congured for two types of transmissions, which are ingress and egress. Ingress trac is received on any
given port (incoming, inbound, download or input speed), whereas egress trac is trac sent out (outgoing,
outbound, upload or output speed) to another network client.
