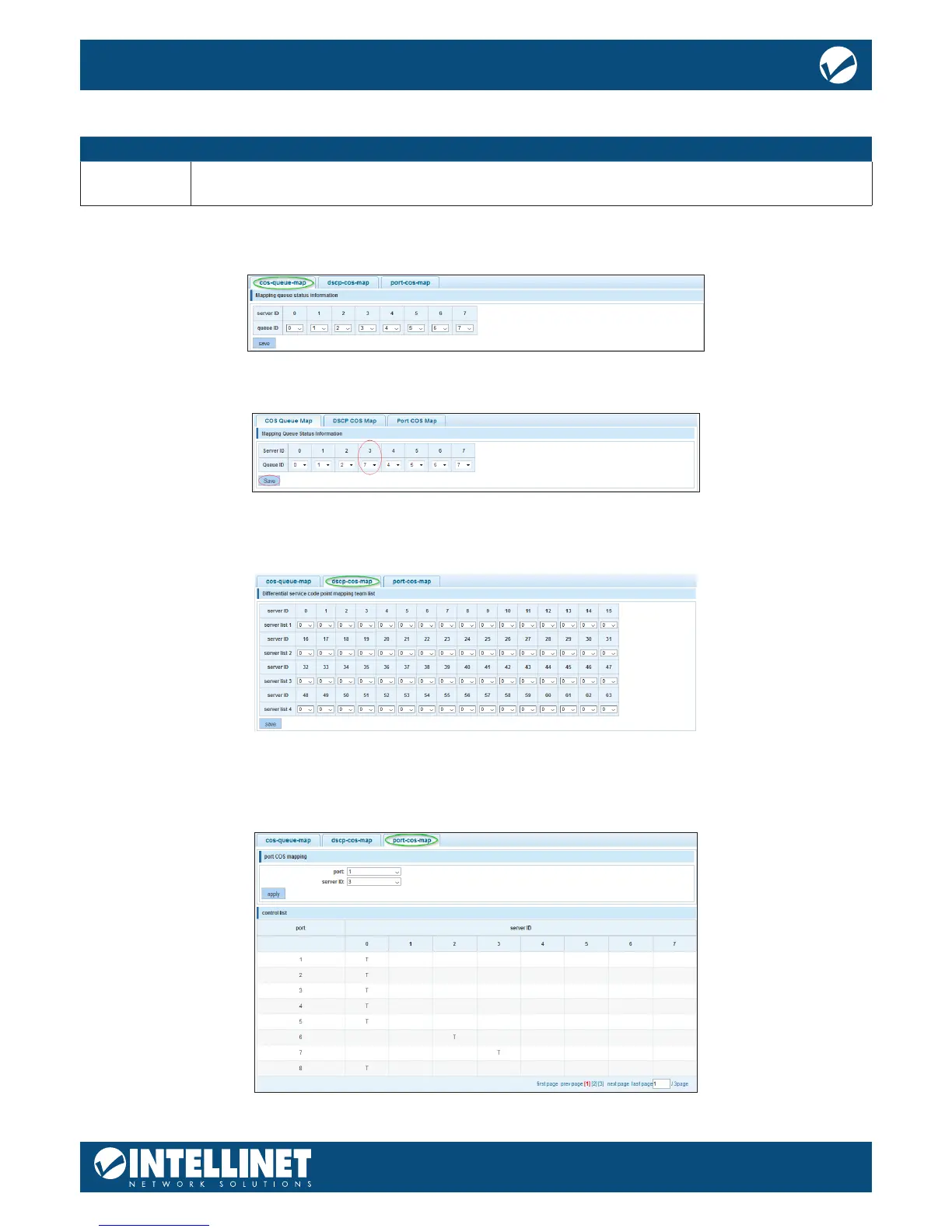

43
24-Port Gigabit Ethernet PoE+ Web-Managed Switch with
4 Gigabit Combo Base-T/SFP Ports
User Manual
QUEUE CONFIG
In this section, dene which priority algorithm you wish the Intellinet Network Solutions switch to utilize.
Item Description
Queue mode SP = Strict Priority, RR = Round Robin, WRR = Weighted Round Robin and WFQ = Weighted
Fair Queuing.
QUEUE MAPPING
COS QUEUE MAP
This page allows the network administrator to classify CoS settings to trac queues. The server ID represents
the CoS (Class of Server) ID.
DSCP COS MAP
This allows network managers to determine the output queue that is assigned per a specic DSCP eld. The
DSCP eld ID is represented by the server ID, and the QUEUE ID is listed as the server list on the screen.
PORT COS MAP
This page allows the network administrator to classify CoS settings to the physical ports on the Intellinet
Network Solutions switch. The server ID represents the CoS ID.
