24-Port Gigabit Ethernet PoE+ Web-Managed Switch with
4 Gigabit Combo Base-T/SFP Ports
User Manual
RACKMOUNT INSTALLATION IN 19” CABINET

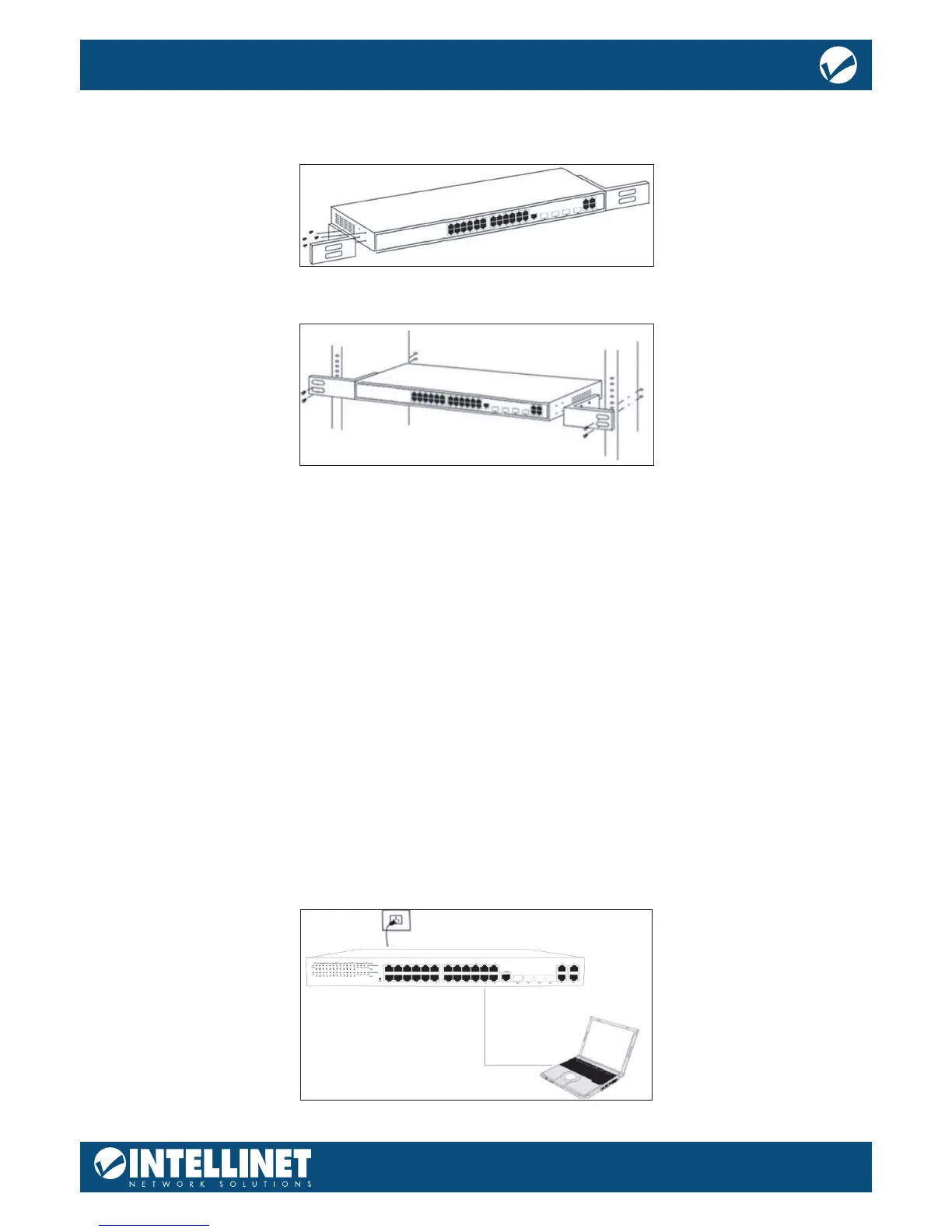

The switch can be mounted in an EIA standard-sized, 19-inch rack, which can be placed in a wiring closet
with other equipment. To install the switch, follow these steps:
Attach the mounting brackets on the switch’s side panels (one on each side) and secure them with the
screws provided.
Use the screws provided with the equipment rack to mount the switch on the rack and tighten it.
POWER ON THE SWITCH
The switch is powered on by connecting it to an outlet using the AC 100-240V 50/60Hz internal high-
performance power supply.
AC Electrical Outlet:
It is recommended to use a single-phase, three-wire receptacle with a neutral outlet or multifunctional
professional receptacle. Be sure to connect the metal ground connector to the grounding source on the
outlet.
AC Power Cord Connection:
Connect the AC power connector on the back panel of the switch to an external receptacle with the included
power cord, and then check that the power indicator is ON. When it is ON, the corresponding LED
is illuminated.
CONNECTION TO THE SWITCH
CONNECTING TO COMPUTER
Use standard Cat5e/6 Ethernet cables (UTP/STP) to connect the switch to end nodes as described below.
Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to
which they are connected.
The LNK/ACT/Speed LEDs for each port are illuminated when the link is available.
!
