D-0126440-A – 2020/08
VisualEyes™ 515/525 Instructions for Use - US Page 10

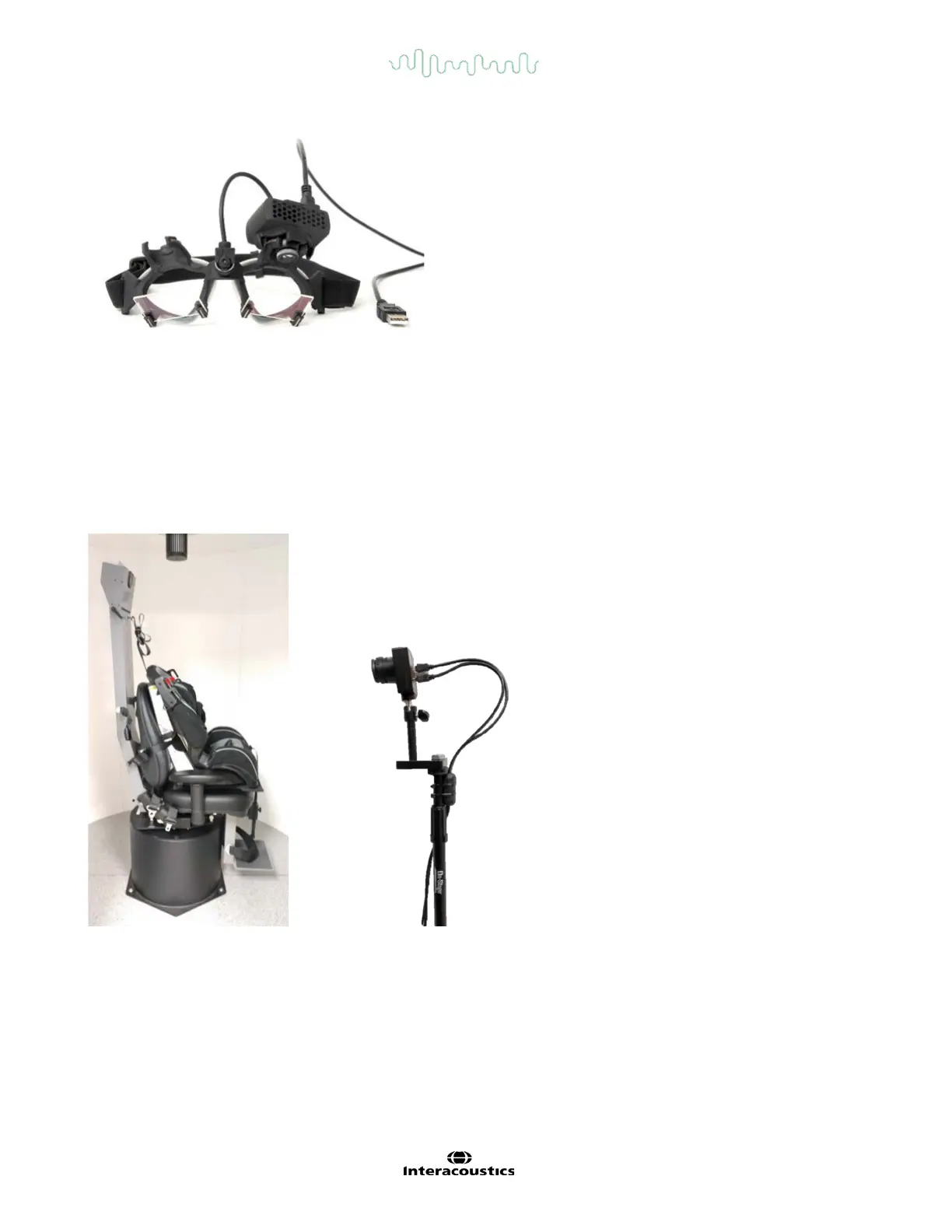

Figure 3.4-6 EyeSeeCam camera and goggle with built-in IMU.
3.4.7 Pediatric observation camera
The AT/C rotational chairs may be configured with the pediatric observation camera. The provided infant car
seat may be used for pediatric seating. This camera is mounted to a pole which fits into the bracket and sits on
the footrest. The patient observation camera connects to the camera ports on the back of the chair frame and
will observe the infant in the car seat (Refer to Figure 3.4-7).
Figure 3.4-7 Orion AT chair with infant seat (left) and pediatric observation camera (right)
