Interacoustics VisualEyes 515 - Auto Traverse and Comprehensive Chair Setup

D-0126440-A – 2020/08
VisualEyes™ 515/525 Instructions for Use - US Page 17

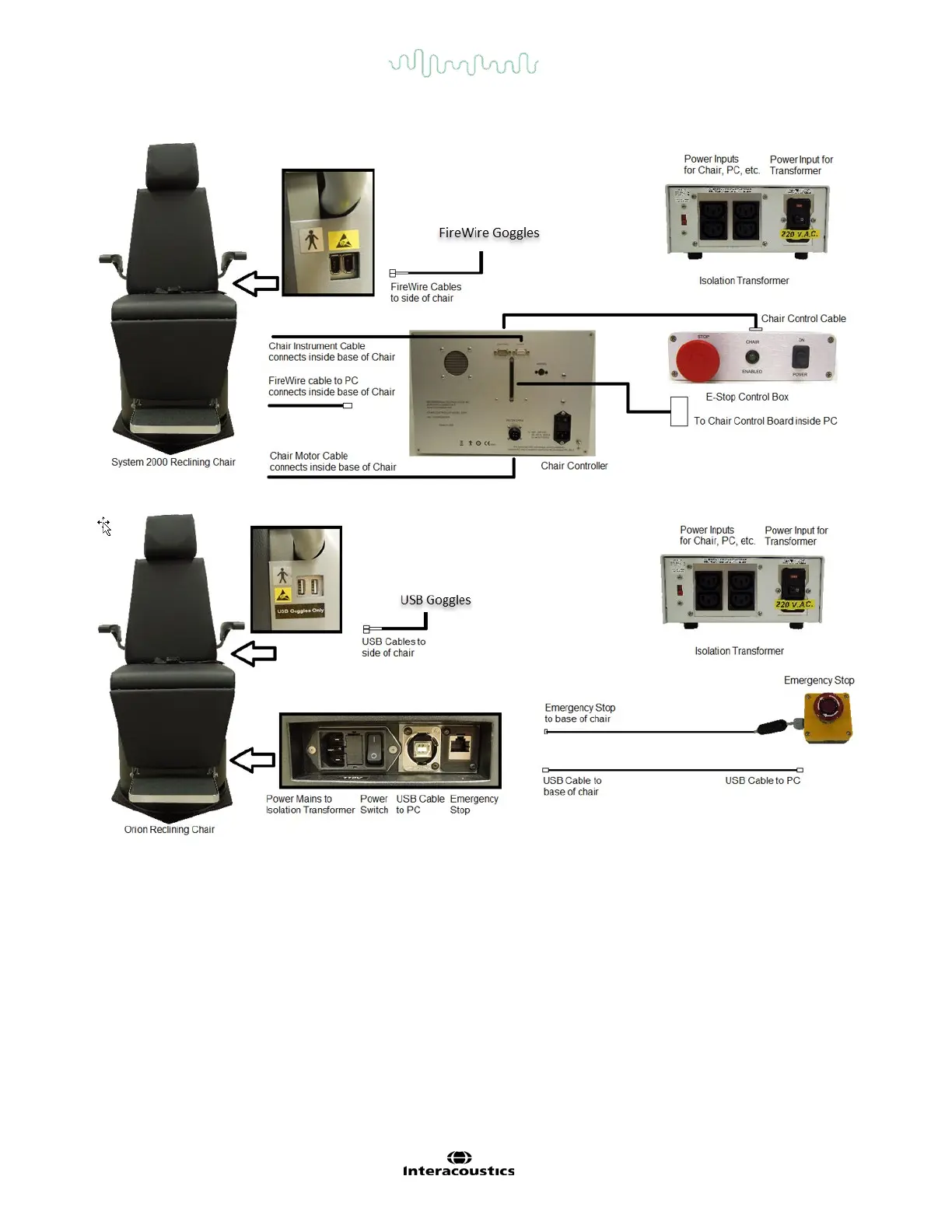

Figure 3.5-3 VisualEyes™ with System 2000 reclining chair
Figure 3.5-4 VisualEyes™ with Orion reclining chair
For complete installation instructions regarding the reclining rotational chairs, please refer to the NyDiag 200,
Orion and System 2000 rotary chair installation manuals.
3.5.4 Auto Traverse and Comprehensive chair setup
The VisualEyes
TM
System can be configured with Orion Auto Traverse/Comprehensive and System 2000 Auto
Traverse/Comprehensive chairs. Both the systems have 3 main components as vestibular booth, rotary chair
and equipment cart. These systems are configured in the same way except few variations. The pictorial
representations for these two different chair setups are shown below in the pictures Figure 3.5-5 (Orion AT/C)
and Figure 3.5-6 (System 2000 AT/C).
