Intermec EasyCoder 501 – Service Manual Ed. 7
58
Chapter 8 Print Unit
8.7 Printhead, cont.
EasyCoder 501 S, 501 E, and 501 SA:
8 dots/mm (203.2 dpi) printhead in left-hand position

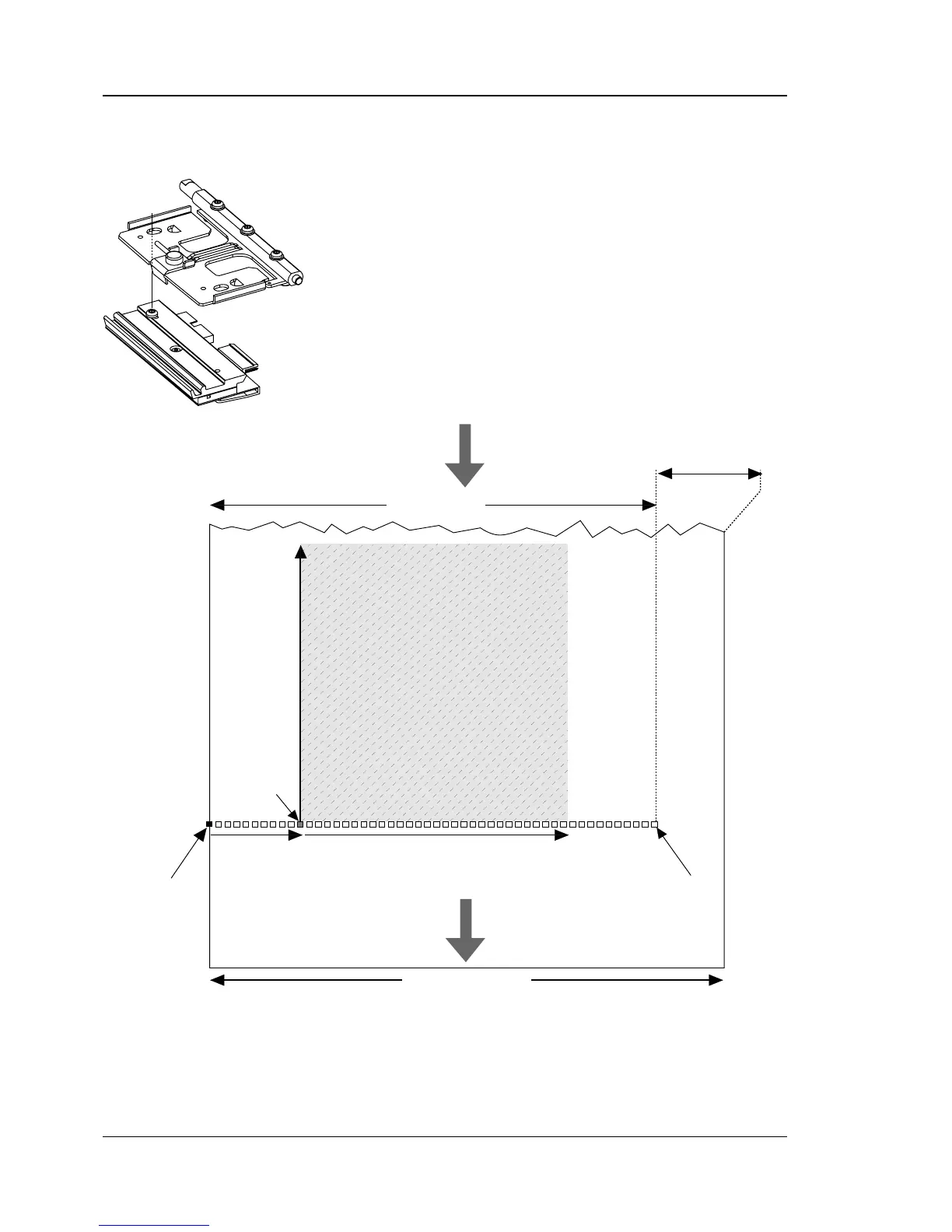

The 8 dots/mm printhead can be fi tted in two positions. When the
printhead is fi tted in the innermost, left-hand position (see illustra-
tion), dot No. 0 is aligned with the inner edge of the media. Since
the maximum print width is 104 mm (4.1 inches) and the maxi-
mum media width is 120 mm (4.7 inches), this leaves a margin
of at least 16 mm (0.6 inches) along the outer edge of the media,
where no printing can be performed.
FEED
DIRECTION
Dot 0
Dot-line
on printhead
X-start Width
Origin
Length
From
media supply
Dot 831
16 mm (0.63 in)
PRINT
WINDOW
PRINT
WINDOW
max. 120 mm (4.7 in)
104 mm (4.1 in)
