Intermec PM4I - Adjusting the Ribbon Break Shaft

Chapter 4 — Troubleshooting and Maintaining the Printer
104 PM4i Mid-Range Printer User’s Manual
Adjusting the Ribbon Break Shaft
If ribbon wrinkling occurs, you may need to adjust the alignment of
the front ribbon break shaft so that it runs parallel to the printhead
and the ribbon supply and rewind hubs.
To adjust the ribbon break shaft
• Using a slotted screwdriver, carefully turn the adjustment screw:
• If the ribbon tends to slide outward, turn the screw clockwise
(fw) to move the outer end of the break shaft forward.
• If the ribbon tends to slide inward, turn the screw
counterclockwise (bw) to move the outer end of the break
shaft backward.

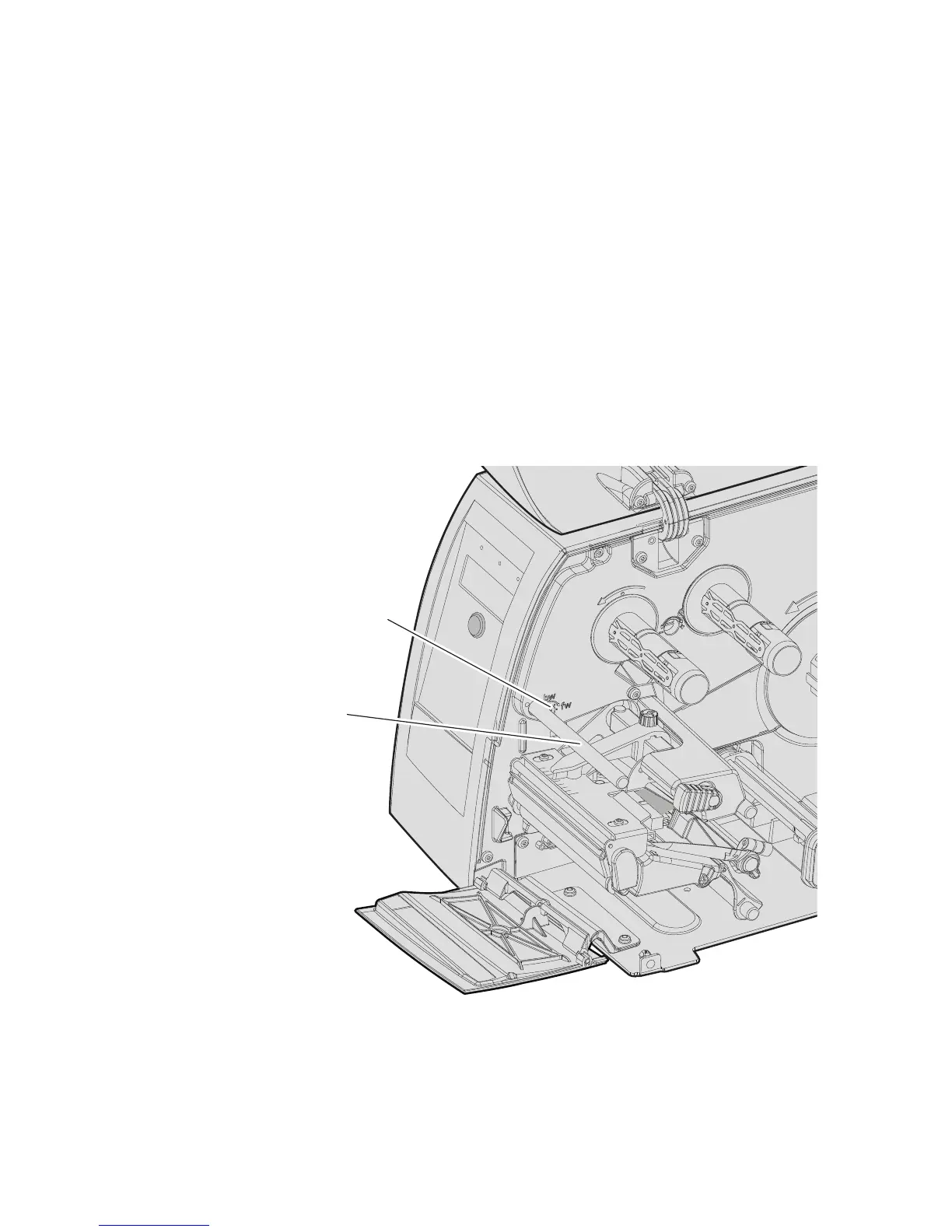

Adjustment
screw
Ribbon
break
shaft
