Version 2.4 (03/2020) Online
Translation of the original operating manual 15 of 54
Product information
3 Product information

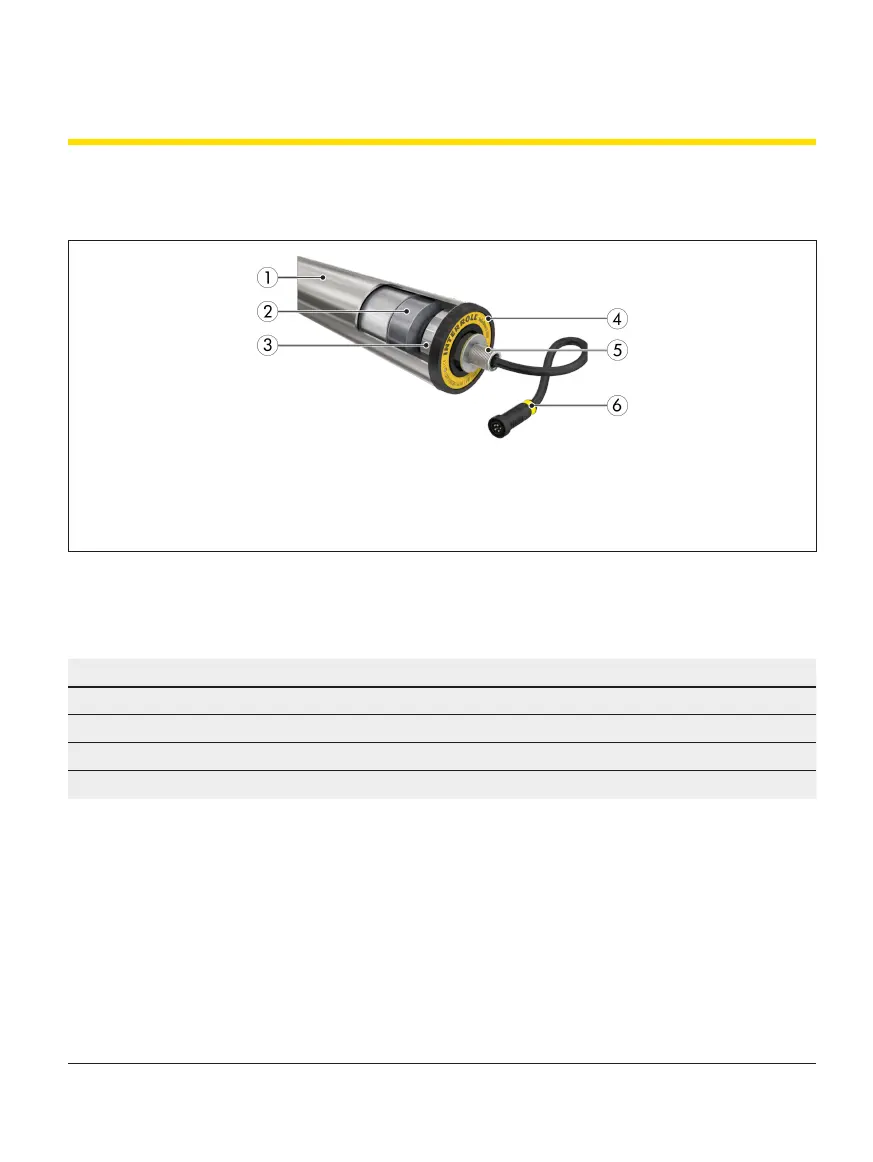

3.1 Components
1 Roller 4 Bearing seat with rating plate
2 Motor 5 Motor shaft
3 Bearing 6 Motor connector with colour ring and cable
Colour rings on the connectors
The motor connector features a colour ring in order to make the various versions of the RollerDrive EC5000 easily
distinguishable from one another.
Colour ring RollerDrive version
White Analogue interface, 24 V DC
Grey Bus interface, 24 V DC
Black Analogue interface, 48 V DC
Yellow Bus interface, 48 V DC
