Version 2.4 (03/2020) Online
Translation of the original operating manual 35 of 54
Product information
Analogue speed/start signal (pin 5)
Voltage range 0 to 24 V DC
Stop (zero motion hold) 0 to 2.3 V DC
Speed 2.3 V DC to 10 V DC
2.3 V = Minimum speed = 300 rpm
10 V = Maximum speed = 6900 rpm
Max. speed 10 V DC to 24 V DC
The conveyor speed results from the gear ratio and the voltage rating of the analogue speed signal.

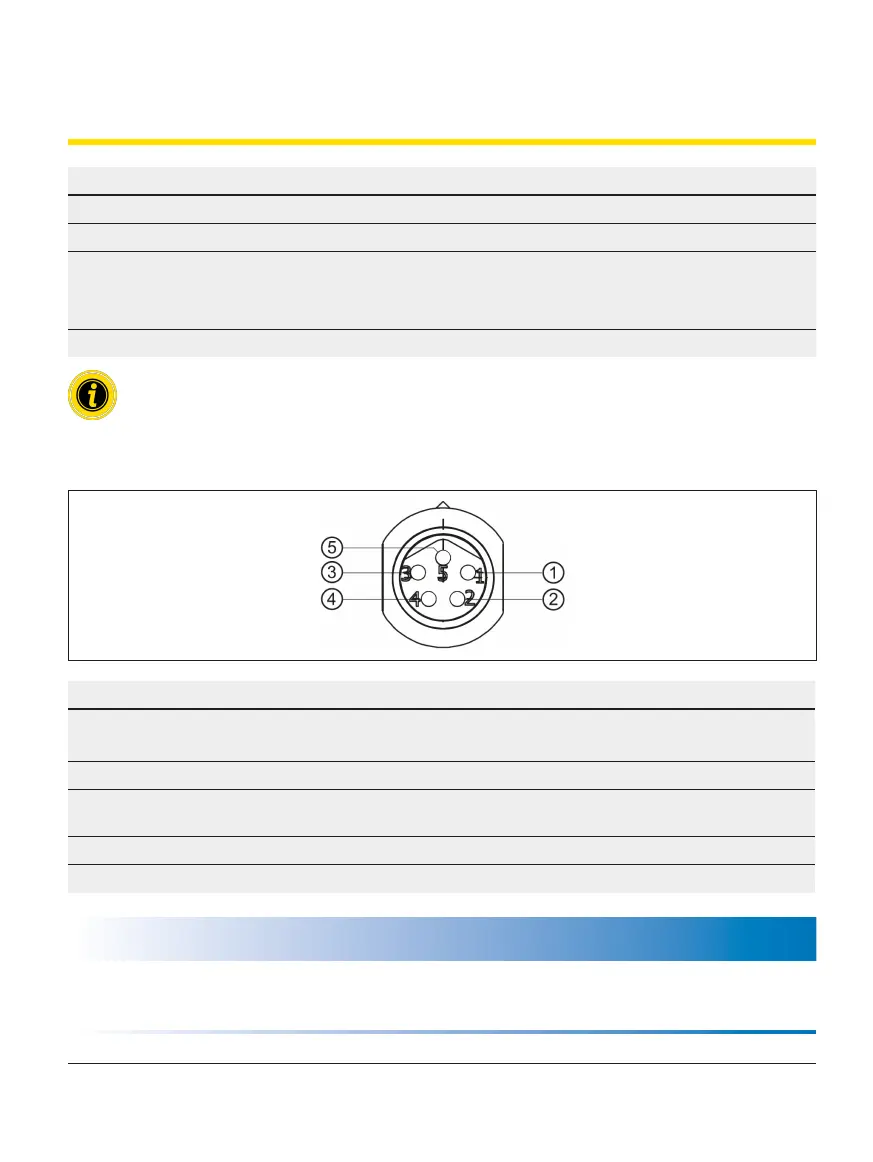

3.11 RollerDrive connector BI
Pin Colour Function Value
1 Brown Input of the power supply
(+)
Rated voltage:
Voltage range:
24 V DC
18 to 28 V DC
48 V DC
36 to 56 V DC
2 White CAN High
3 Blue Earth for power supply and
signal (-)
Earth
4 Black CAN Low
5 Grey Service manufacturer
NOTE
Connecting/disconnecting under voltage can destroy the RollerDrive EC5000 with bus interface
¾ The RollerDrive EC5000 BI is not hot-plug-compatible. Disconnect the power supply to connect/disconnect
the RollerDrive EC5000 BI.
