Intralox ThermoDrive - Clamping Fixture

2 SPLICING SYSTEM COMPONENTS
2-2
Belt Splicing System v.2.0
Clamping Fixture: All-metal fixture designed to
hold prepared belt ends in proper alignment
during melting; includes 8026/8050 Top
Clamp/Cut Guides and Crank Handle
NOTE
The 8026/8050 Top Clamp/Cut Guide set does not
provide correct pitch with metal lacing. Contact
Intralox with questions about metal lacing.
Carrying Handles: Plastic rounded parts used to
lift and carry the Clamping Fixture
Crank Handle: Removable, metal handle used to
open and close Grooved Decks; attaches to the
protruding shaft with retaining pin and tether
Frame edges: Curved, metal portion of the fix-
ture frame on the right and left of the Grooved
Decks designed to smooth belt movement onto
the decks
Clamping Fixture

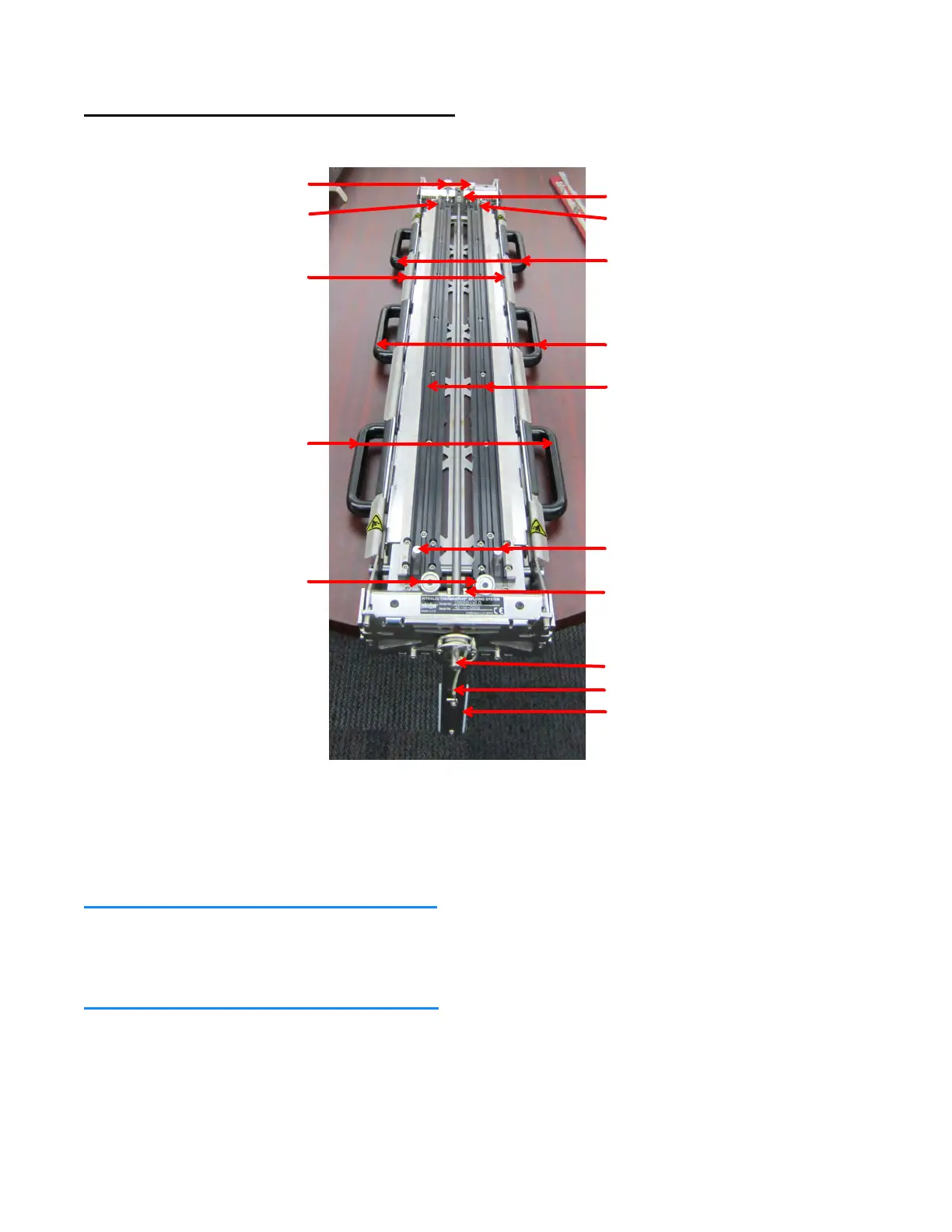

Figure 2C: Clamping Fixture
Wand Rest
(between decks)
Locating pin
Carrying handles
Carrying handles
Grooved Decks
Locating Pins
Wand Rest
(between decks;
barely visible)
Shaft
tether
Crank Handle
Pivoting Studs
(& thumb knobs)
Locating pin
Frame edge
Carrying handles
Pivoting Studs
(& thumb knobs)
