12 NUB TOP STYLE SPECIFICS
12-2
Belt Splicing System v.2.0
Use Silicone Spacers
Position Silicone Spacer strips between belt
nubs and the Cut Guides (or Grooved Decks, if
drive bars face up) during alignment.

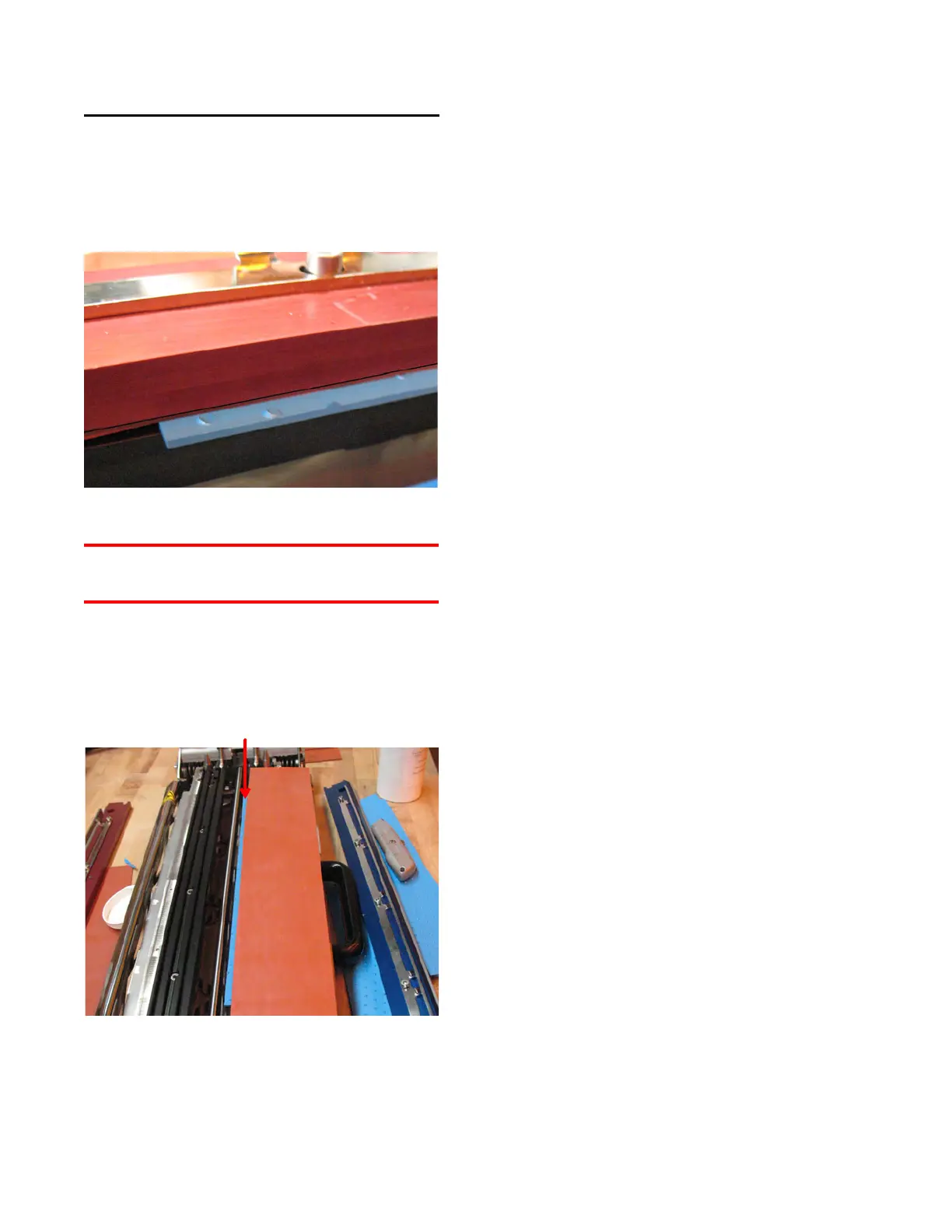

Figure 12D: Place Cut Guide on Silicone Spacer
Place Spacer strips on Belt Tabs, if used.
Ensure Spacer strips do not extend past
Grooved Deck edges. Spacer strips should not
contact the Heat Wand during splicing.
Figure 12E: Align Silicone Spacer with Deck edge
belt end extends past Deck edge
