7 TRIM & INSPECT THE BELT
7-4
Belt Splicing System v.2.0
When the belt is bent at the splice, the
splice has NO visible cracks or bubbles,
and no more than two (2) small pits.
To inspect the splice, pull the belt edges
together so the belt bends at the splice (as
though it was around a 4" sprocket),

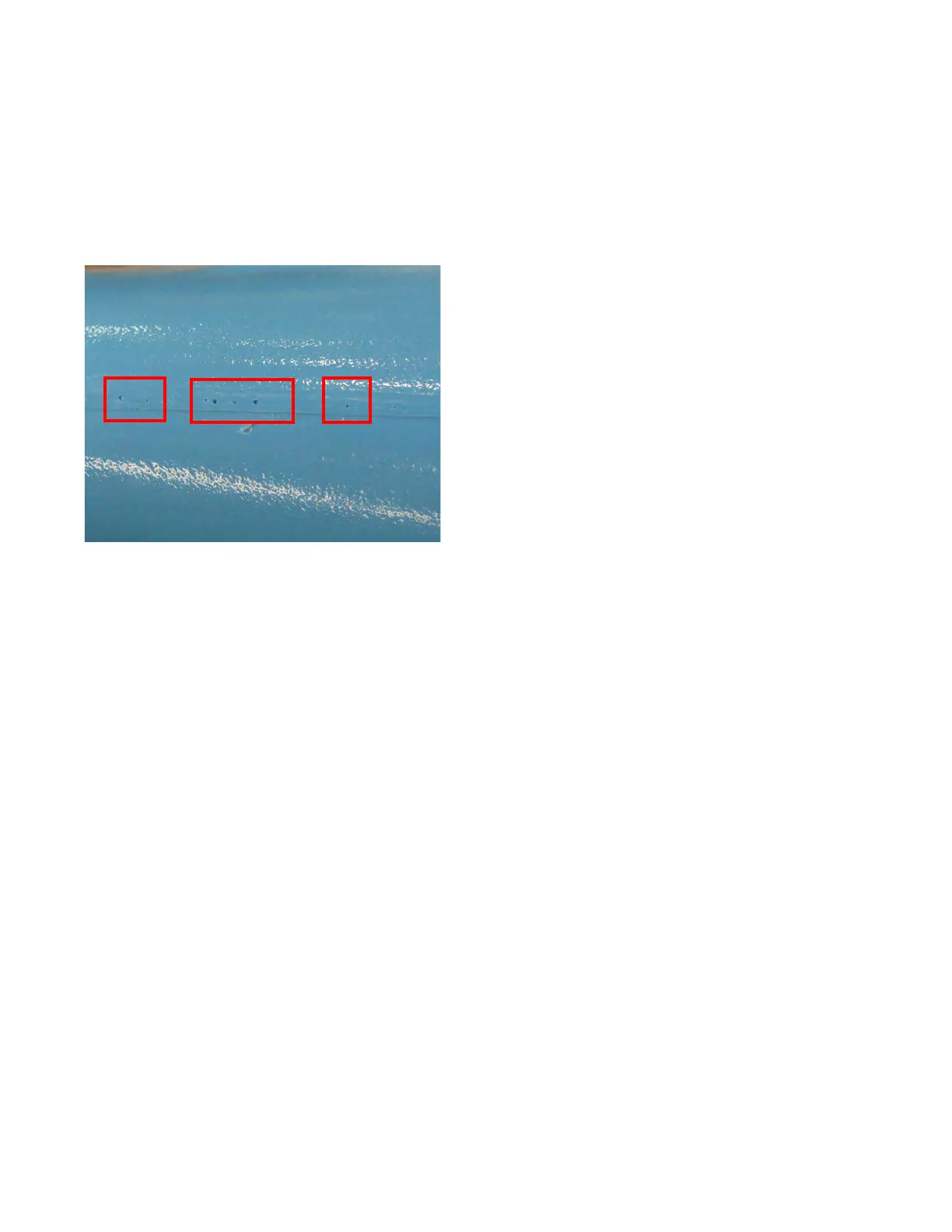

Figure 7J: Inspect for splice faults (e.g., bubbles
shown here)
FAIL: If the belt splice does NOT meet all
requirements, troubleshoot until all require-
ments are met. See TROUBLESHOOT on page
10-1.
PASS: When the belt meets all requirements,
return the belt to production and shut down the
Splicing System. See SHUT DOWN, COOL, &
PACK UP on page 8-1.
