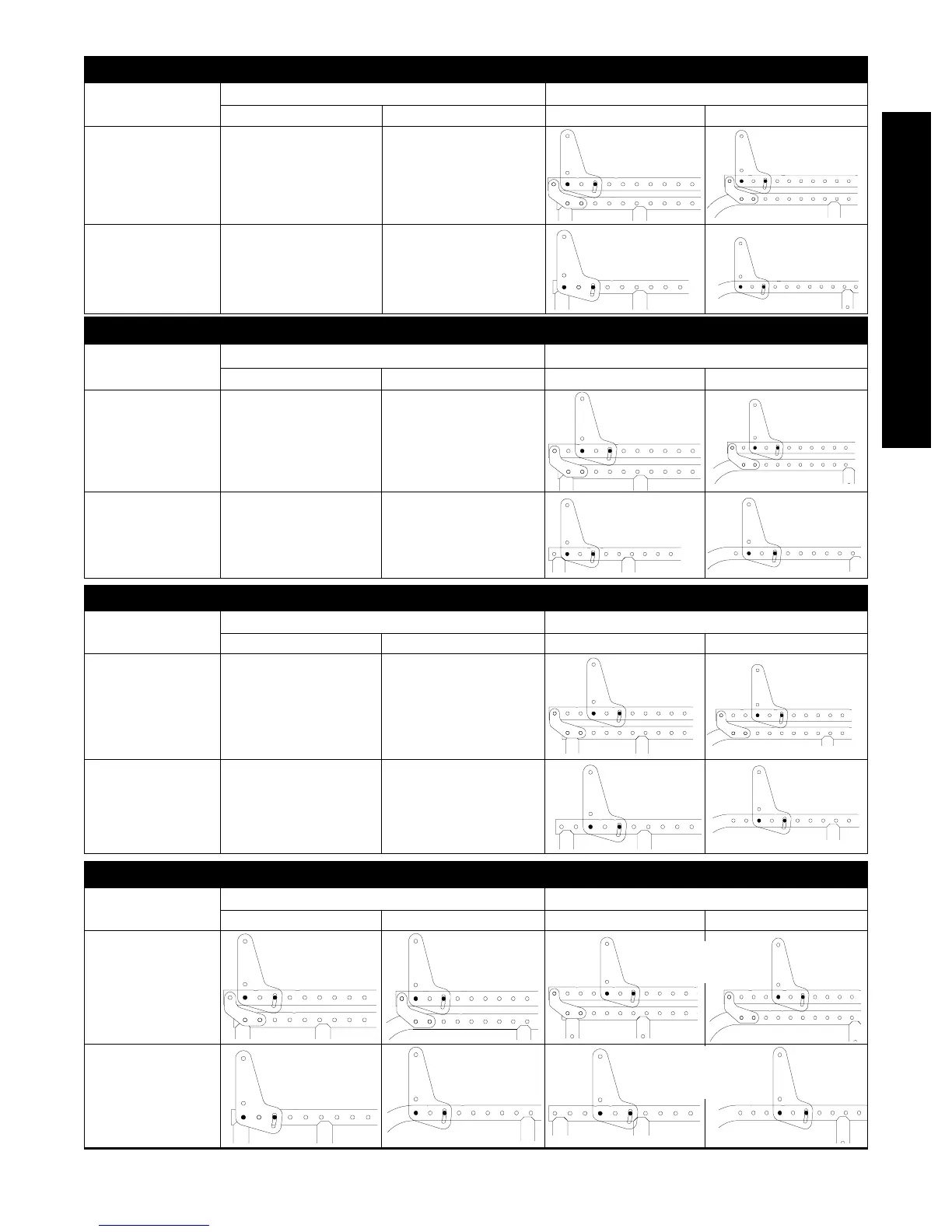

SEAT PROCEDURE 3
LONG FRAME POSITIONSSHORT FRAME POSITIONS
BACK POSITION FOR 13-INCH SEAT DEPTH
STANDARD
REVERSED
STANDARD
REVERSED
MINI-TILT
Mounting
Holes 7 & 9
Mounting
Holes 5 & 7
Mounting
Holes 7 & 9
Mounting
Holes 7 & 9
Mounting
Holes 7 & 9
Mounting
Holes 5 & 7
NON-MINI-TILT
LONG FRAME POSITIONSSHORT FRAME POSITIONS
BACK POSITION FOR 16-INCH SEAT DEPTH
REVERSEDSTANDARDREVERSEDSTANDARD
MINI-TILT
N/AN/A
Mounting
Holes 8 & 10
Mounting
Holes 8 & 10
NON-MINI-TILT
N/A N/A
Mounting
Holes 8 & 10
Mounting
Holes 8 & 10
BACK POSITION FOR 15-INCH SEAT DEPTH
LONG FRAME POSITIONSSHORT FRAME POSITIONS
STANDARD REVERSED STANDARD REVERSED
MINI-TILT
N/AN/A
Mounting
Holes 7 & 9
Mounting
Holes 7 & 9
N/A N/A
NON-MINI-TILT
Mounting
Holes 7 & 9
Mounting
Holes 7 & 9
BACK POSITION FOR 14-INCH SEAT DEPTH
LONG FRAME POSITIONSSHORT FRAME POSITIONS
STANDARD REVERSED
STANDARD
REVERSED
MINI-TILT
N/AN/A
Mounting
Holes 6 & 8
Mounting
Holes 6 & 8
N/A N/A
NON-MINI-TILT
Mounting
Holes 6 & 8
Mounting
Holes 6 & 8
