Ethernet/IP Communication
Step 7.
Confi rm INT as the selected data type
Step 8.
(Optional) Adjust the RPI time in the Connection tab
Click OK button to save your settings
Step 9.
Close the Select Module Type Window
Step 10.
OPC-2-ETHIG-IN device will be added to the project
Step 11.

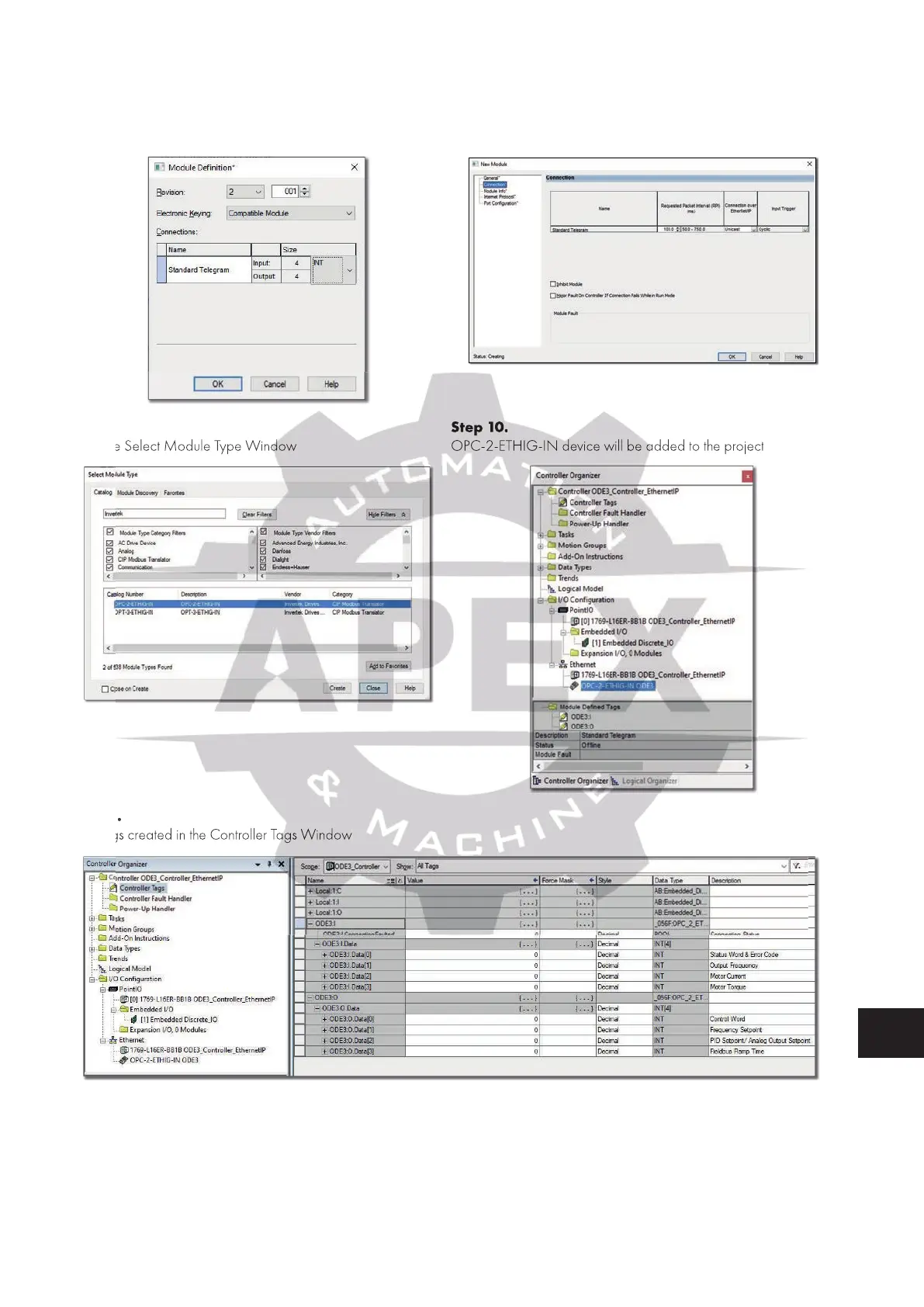

Drive tags created in the Controller Tags Window
Close the Select Module Type Window
Step 10.
OPC-2-ETHIG-IN device will be added to the project
Step 11.
Drive tags created in the Controller Tags Window
