Ethernet/IP Communication
8.6.3.2. ODE-3 Extended Status Information (4 Words In / 16 Words Out)
8.6.3.2.1. For use with OPT-2-ETHEG-IN (ODE-3 IP20 & IP66 Outdoor without Ethernet/IP interface) & OPT-
2-ETHIG-IN plug in option for Compact 2.

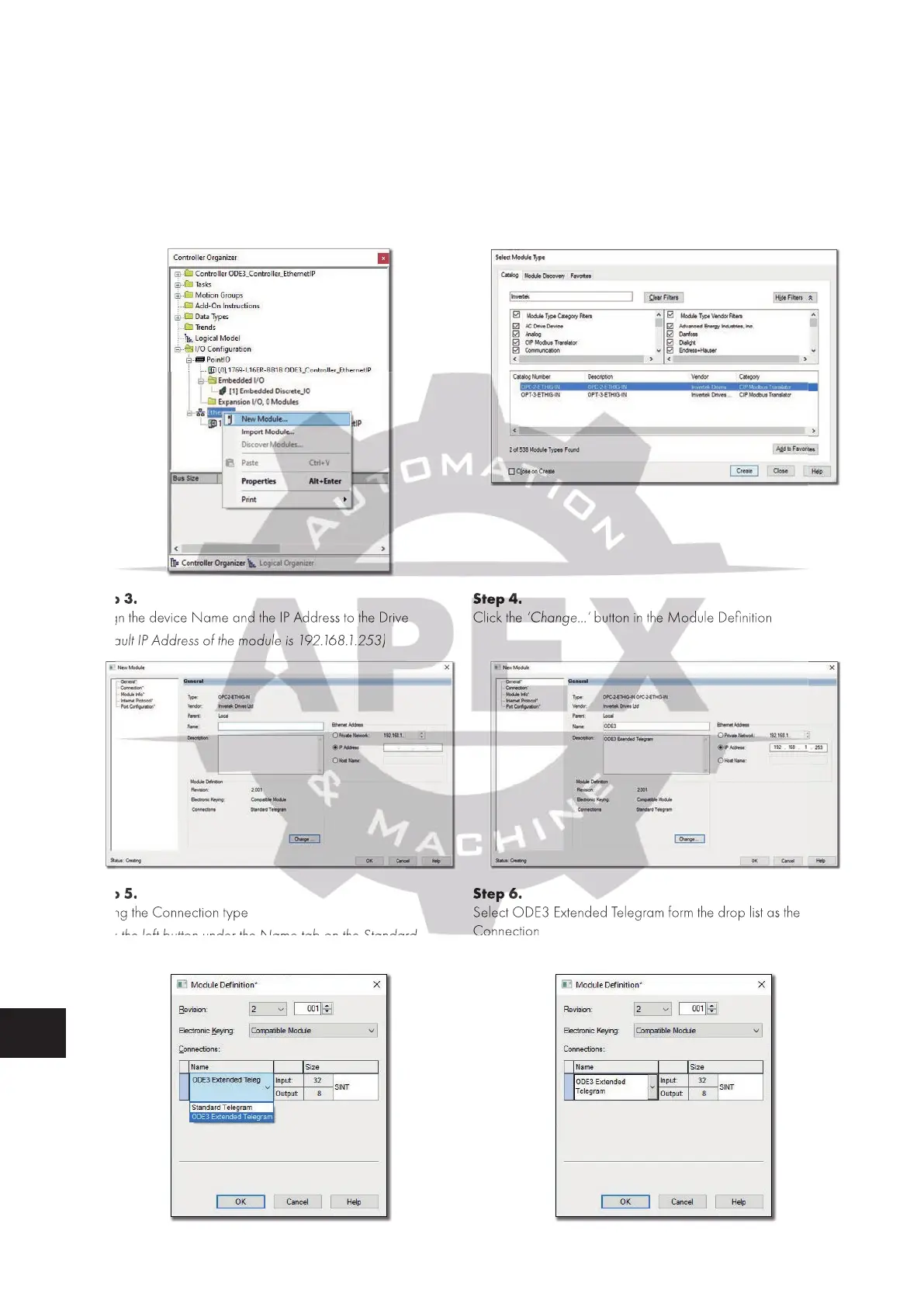

Step 1.
Add the New Module to the Ethernet/IP network
Click the right button on the Ethernet (under the I/O
Confi guration) and add the New Module
Step 2.
Search for Invertek devices in the Catalog View
Select the OPC-2-ETHIG-IN device from the list
Step 3.
Assign the device Name and the IP Address to the Drive
(Default IP Address of the module is 192.168.1.253)
Step 4.
Click the ‘Change…’ button in the Module Defi nition
Step 5.
Chang the Connection type
Click the left button under the Name tab on the Standard
Telegram fi eld
Step 6.
Select ODE3 Extended Telegram form the drop list as the
Connection
Step 3.
Assign the device Name and the IP Address to the Drive
(Default IP Address of the module is 192.168.1.253)
Step 4.
Click the
‘Change…’
button in the Module Defi nition
‘Change…’ button in the Module Defi nition‘Change…’
Step 5.
Chang the Connection type
Click the left button under the Name tab on the Standard
Step 6.
Select ODE3 Extended Telegram form the drop list as the
Connection
