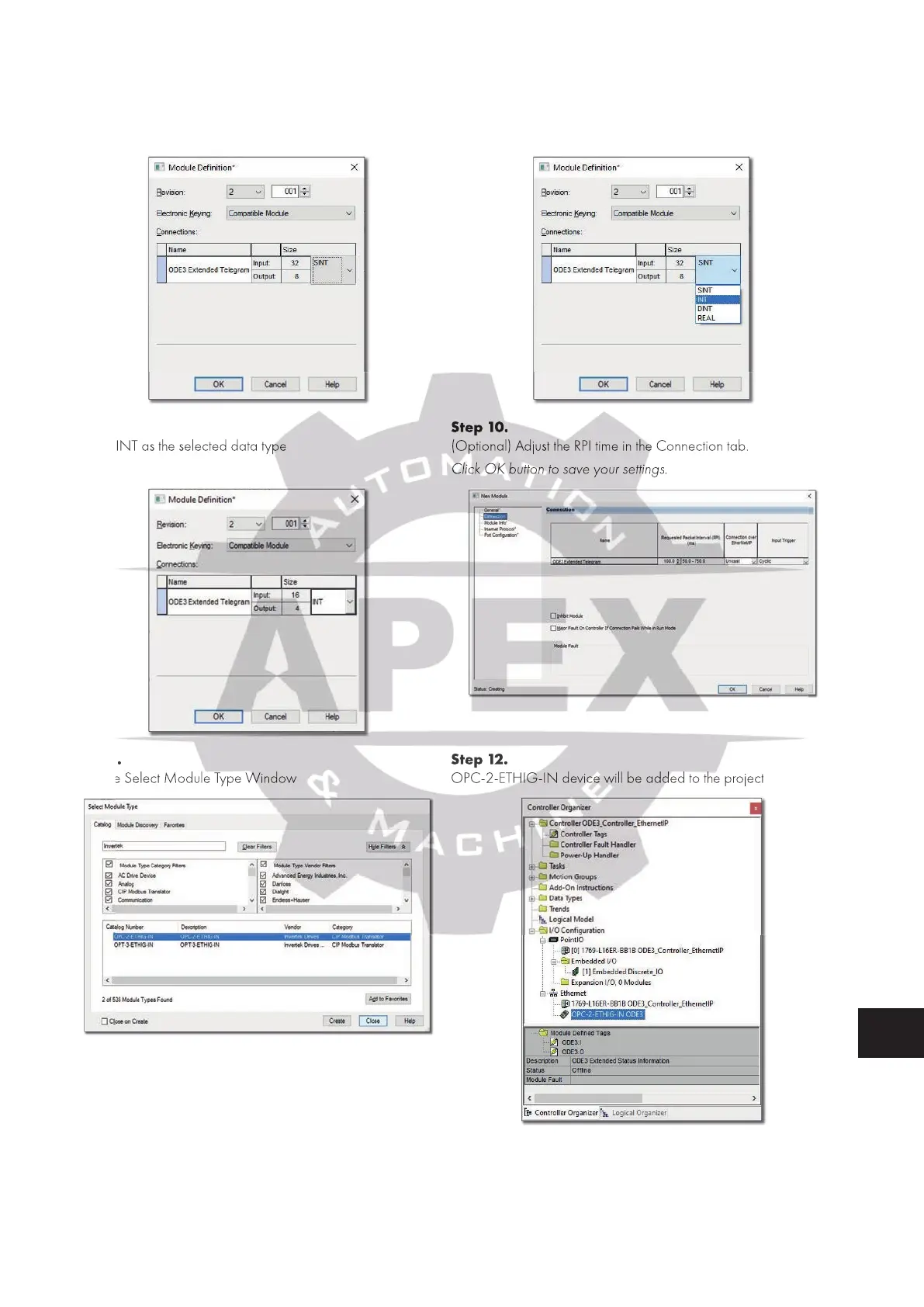

Ethernet/IP Communication
Step 7.
Change the data type
Click the left button on the SINT fi eld under the Size Tab
Step 8.
Select INT data type from the drop list
Step 9.
Confi rm INT as the selected data type
Step 10.
(Optional) Adjust the RPI time in the Connection tab.
Click OK button to save your settings.
Step 11.
Close the Select Module Type Window
Step 12.
OPC-2-ETHIG-IN device will be added to the project
Confi rm INT as the selected data type
Step 10.
(Optional) Adjust the RPI time in the Connection tab.
Click OK button to save your settings.
Step 11.
Close the Select Module Type Window
Step 12.
OPC-2-ETHIG-IN device will be added to the project
