Invertek Drives Optidrive E3 ODE-3 Series User Manual

Version 1.02 | Fieldbus Guide | 37www.invertekdrives.com
8
Ethernet/IP Communication
Confi guration for Assembly Instances and Size for Standard Telegram (4 Words In & 4 Words Out) are as below:
Device Settings
Data Type INT 16-bit
Address 1 -
Connection Parameters
Assembly Instance Size
Input 6 4
Output 1 4
Confi guration 2 0
NOTE
1. Assembly Instance is the Modbus Register number which can be found in the drive Parameter List / Programming guide document.
2. Device Address must be set to 1 and be equal to the drive local address.

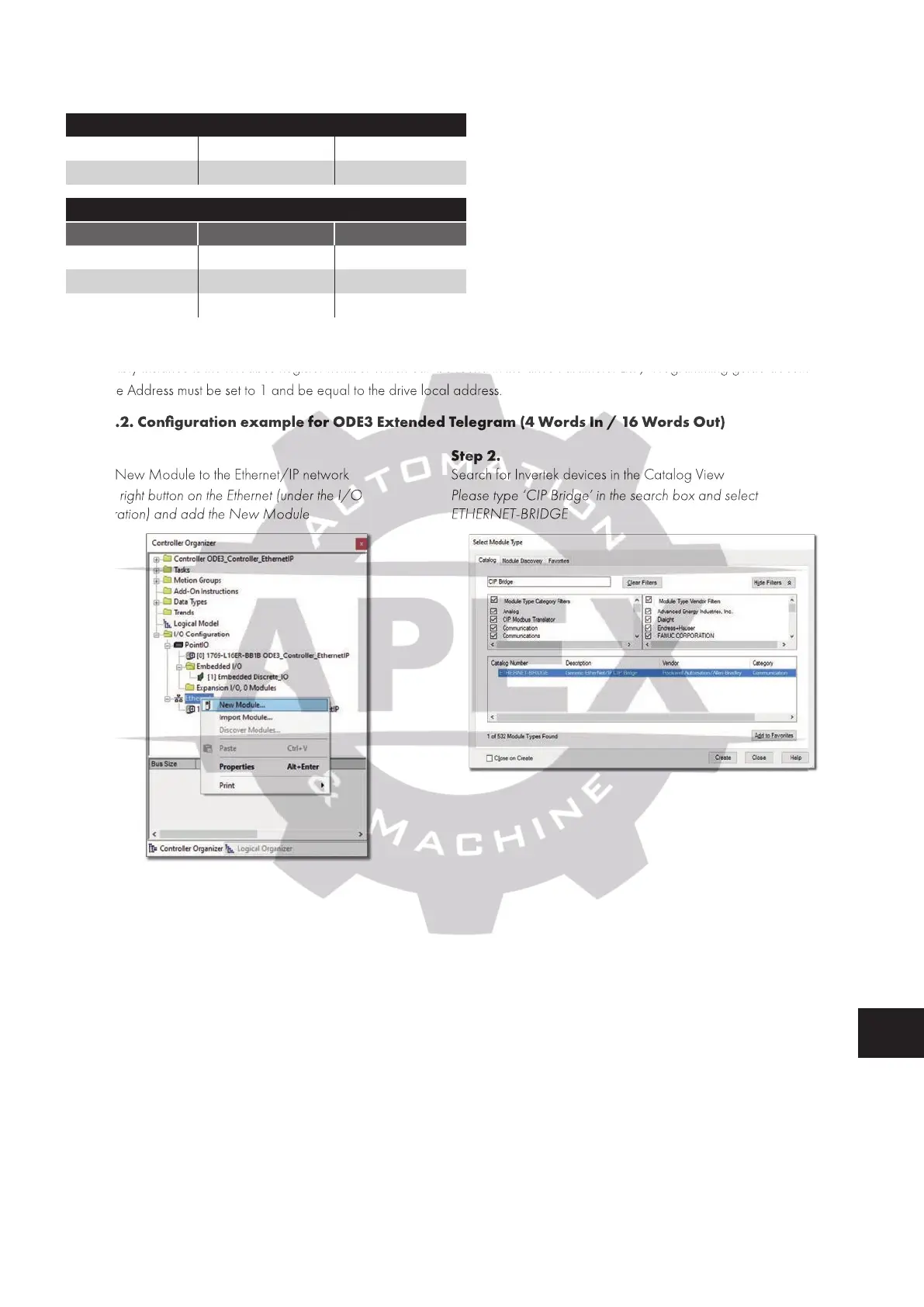

8.6.4.1.2. Confi guration example for ODE3 Extended Telegram (4 Words In / 16 Words Out)
Step 1.
Add the New Module to the Ethernet/IP network
Click the right button on the Ethernet (under the I/O
Confi guration) and add the New Module
Step 2.
Search for Invertek devices in the Catalog View
Please type ‘CIP Bridge’ in the search box and select
ETHERNET-BRIDGE
1. Assembly Instance is the Modbus Register number which can be found in the drive Parameter List / Programming guide document.
2. Device Address must be set to 1 and be equal to the drive local address.
8.6.4.1.2. Confi guration example for ODE3 Extended Telegram (4 Words In / 16 Words Out)
Add the New Module to the Ethernet/IP network
Click the right button on the Ethernet (under the I/O
Confi guration) and add the New Module
Step 2.
Search for Invertek devices in the Catalog View
Please type ‘CIP Bridge’ in the search box and select
ETHERNET-BRIDGE
