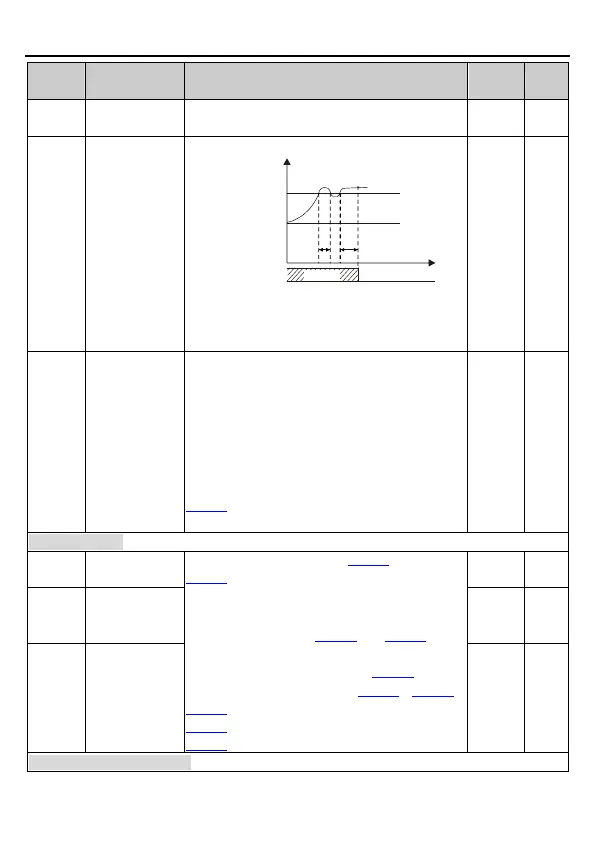

INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-89-
Function
code
Name
Description
Default
value
Modify
P11.14
Speed deviation
detection value
0.0–50.0%
10.0%
○
P11.15
Speed deviation
detection time
See the following figure.
Speed
Actual detection
value
Set detection
value
Time t
t1
t2
t2=P11.15
t1<t2, so the VFD continues running
dEu
Running Fault output
Setting range: 0.0–10.0s
0.5s
○
P11.16
Extension
function
selection
0x00–0x11
LED ones: Automatic frequency drop selection at
voltage drop
0: Invalid
1: Valid
LED tens: Second ACC/DEC time selection
0: Invalid
1: Valid. When the running frequency exceeds
P08.36, ACC/DEC time is switched to the
second ACC/DEC time.
0x00
○
P13 SM control
P13.13
Short circuit
braking current
When the VFD is starting, if P01.00=0, set
P13.14 to a non-zero value to begin short circuit
braking.
When the VFD is stopping, if the running
frequency is less than P01.09, set P13.15 to a
non-zero value to begin short-circuit braking and
then enter DC braking that lasts P01.12. (For
details, see the description of P01.09–P01.12.)
P13.13 setting range: 0.0–150.0% (VFD)
P13.14 setting range: 0.00–50.00s
P13.15 setting range: 0.00–50.00s
0.0%
○
P13.14
Hold time of
short circuit
braking at start
0.00s
○
P13.15
Hold time of
short circuit
braking at stop
0.00s
○
