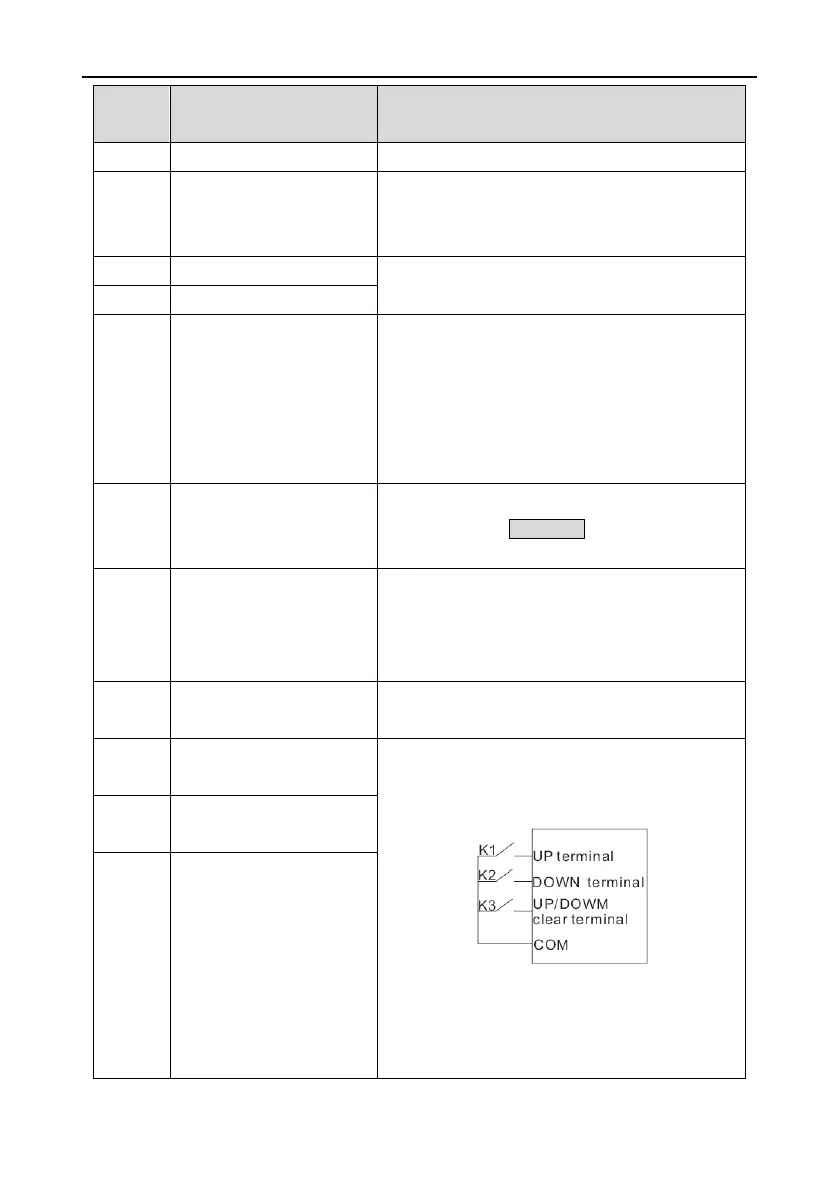

INVT Goodrive300-19 Series User Manual

Goodrive300-19 series open loop vector inverter special for hosit Basic operation instruction
-161-
Set
value
Function
Instruction
2
Reverse running (REV)
controlled by the external terminals.
3
3-wire running control
The terminal can determine the running mode of the
inverter is 3-wire control mode. Refer to P05.13 for
detailed instruction of 3-wire control mode.
4
Forward jogging
See P08.06, P08.07 and P08.08 for jogging
frequency, jogging ACC/DEC time.
5
Reverse jogging
6
Coast to stop
The inverter closes off the output. The motor is not
controlled by the inverter during the stopping. This
method is usually to be used when the load inertia is
big and it has no requirement to the stopping time.
It has the same meaning with the “coast to stop” in
P01.08 and usually used in remote control.
7
Fault reset
External fault reset. It has the same function with the
reset function of STOP/RST on the keypad. This
function can realize remote fault reset.
8
Operation pause
The inverter decelerates to stop. But all running
parameters are in the memory state. After the signal
disappears, the inverter will come back to the state
before stopping.
9
External fault input
When the external fault signal is sent to the inverter,
the inverter will report the fault and stop.
10
Frequency setting increasing
(UP)
This parameter is used to modify the increasing and
decreasing command during the external terminal
reference frequency.
Frequency setting clear terminal can cancel the
assistant channel frequency set by the internal
UP/DOWN of the inverter to make the reference
frequency restore to the frequency given by the main
11
Frequency setting
decreasing (DOWN)
12
Frequency setting clear
