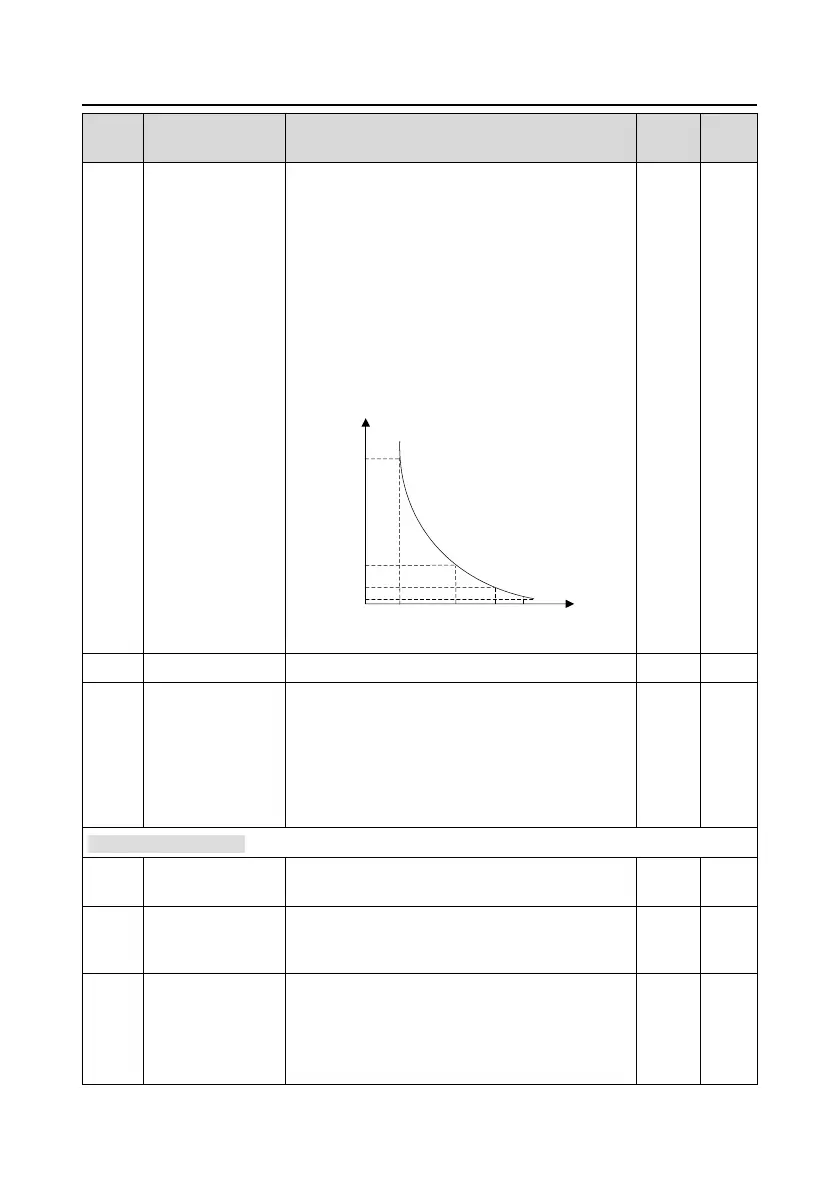

Goodrive35 Series Closed-loop Vector Control VFD Function parameters
111
Functio
n code
Name
Detailed instruction of parameters
Default
value
Modif
y
The smaller K is, the greater M is, and the more
likely protection is implemented.
When M=116%, protection is performed after motor
overload lasts for 1 hour; when M=150%, protection
is performed after motor overload lasts for 12
minutes; when M=180%, protection is performed
after motor overload lasts for 5 minutes; when
M=200%, protection is performed after motor
overload lasts for 60 seconds; and when M≥ 400%,
protection is performed immediately.
1
5
12
60
116%
200%
Time (min)
Motor overload
multiple
150% 180%
Setting range: 20.0%–120.0%
P12.28
Reserved
P12.29
Parameter display of
motor 2
0: Display according to the motor type: only the
parameters relative to the current motor type are
displayed for the convenient for the customers in this
mode.
1: All parameters are displayed: all parameters are
displayed in this mode.
0
○
P13 Group SM control
P13.00
Reduction coefficient
of source current
0.0–100.0% (rated current of the motor)
80.0%
◎
P13.01
Original pole test
mode
0: No test
1: High-frequency superposition (reserved)
2: Pulse superposition (reserved)
0
◎
P13.02
Source current 1
Source current is the positioning current of the
magnetic pole position. Source current 1 is valid
under the frequency point of current shifting.
Increasing the value can raise the starting torque.
Setting range: 0.0%–100.0% (rated current of the
20.0%
○
