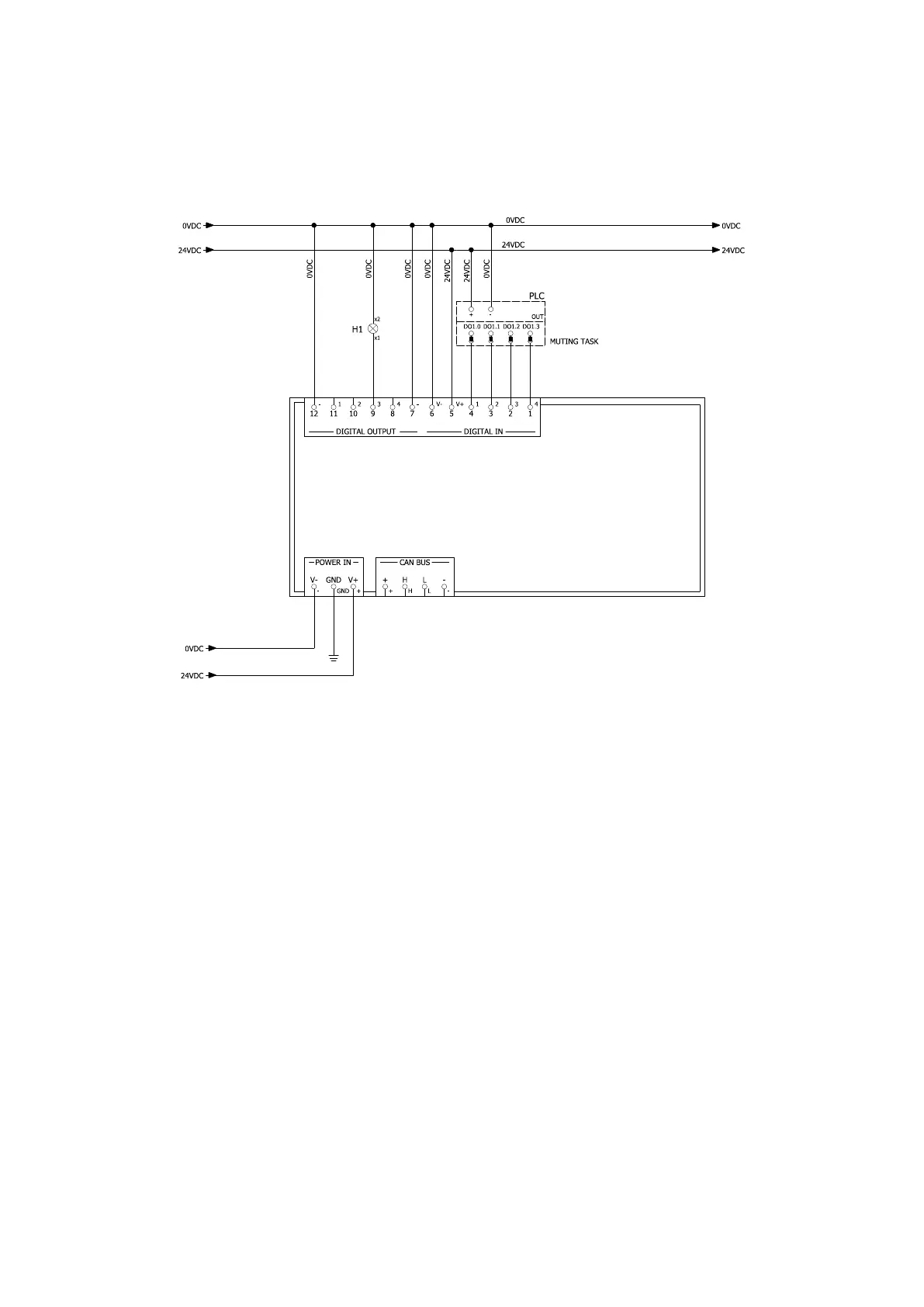

11.3.6 Connection of the muting input and output (two groups of sensors)
Note: the cables used for wiring the digital inputs must have a maximum length of 30 m (98.4 ft).
Digital I/Osettings (through the Inxpect Safety application)
Digital input #1 Muting group 1
Digital input #2 Muting group 2
Digital output #1 Not configured
Digital output #2 Not configured
Digital output #3 Muting enable feedback signal
Digital output #4 Not configured
