For S201A model:
For S203A model:

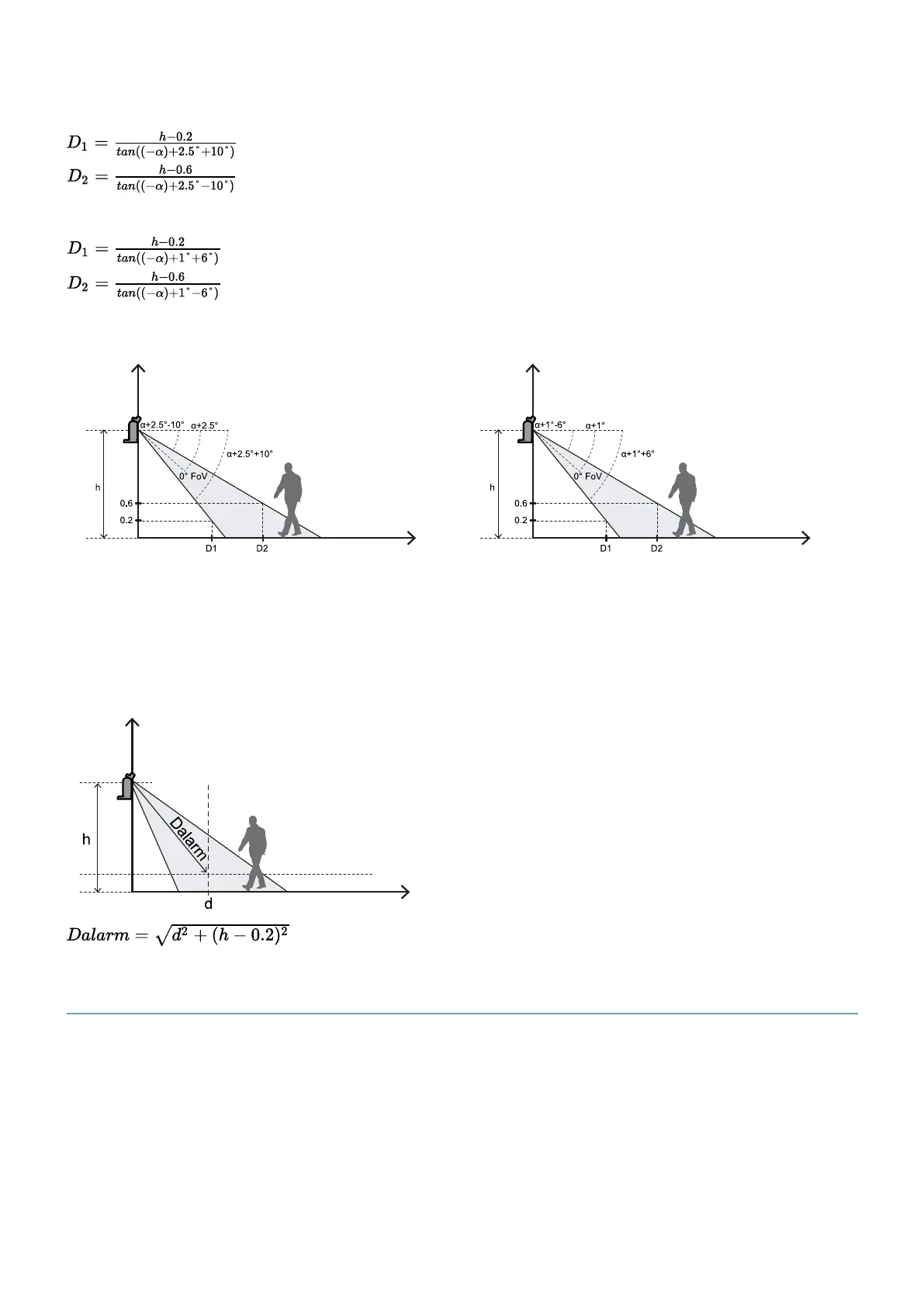

Below is an example for configuration 3, with D
1
=0.9 m and D
2
= 1.6 m.
S201A model S203A model
7.5.5 Calculate the real detection distance
The actual detection distance Dalarm is the value to be entered on the Configuration page of the Inxpect Safety
application.
Dalarm indicates the maximum distance between the sensor and the object to be detected.
7.6 Sensor position recommendations
7.6.1 For access detection function
Below are some recommendations for the sensor positioning for the access detection function:
l
If the distance between the ground and the bottom portion of the field of view is greater than 20 cm (7.9
in), take precautions to make sure that even a person entering the dangerous area below the volume
monitored by the field of view is still detected.
l
If the height above the ground is less than 20 cm (7.9 in), install the sensor with an inclination of minimum
10° upwards.
l
The installation height (from the ground to the center of the sensor) must be greater than or equal to 15 cm
(5.9 in).
