7. Sensor position
7.6.2 For access control of an entrance
Below are some recommendations for the sensor positioning if it is installed for controlling an entrance:
l
The installation height (from the ground to the center of the sensor) must be greater than or equal to 20 cm
(7.9 in).
l
The angular coverage must be 90°.
l
The inclination must be 40° upwards.
l
The rotation around the z-axis must be 90°.

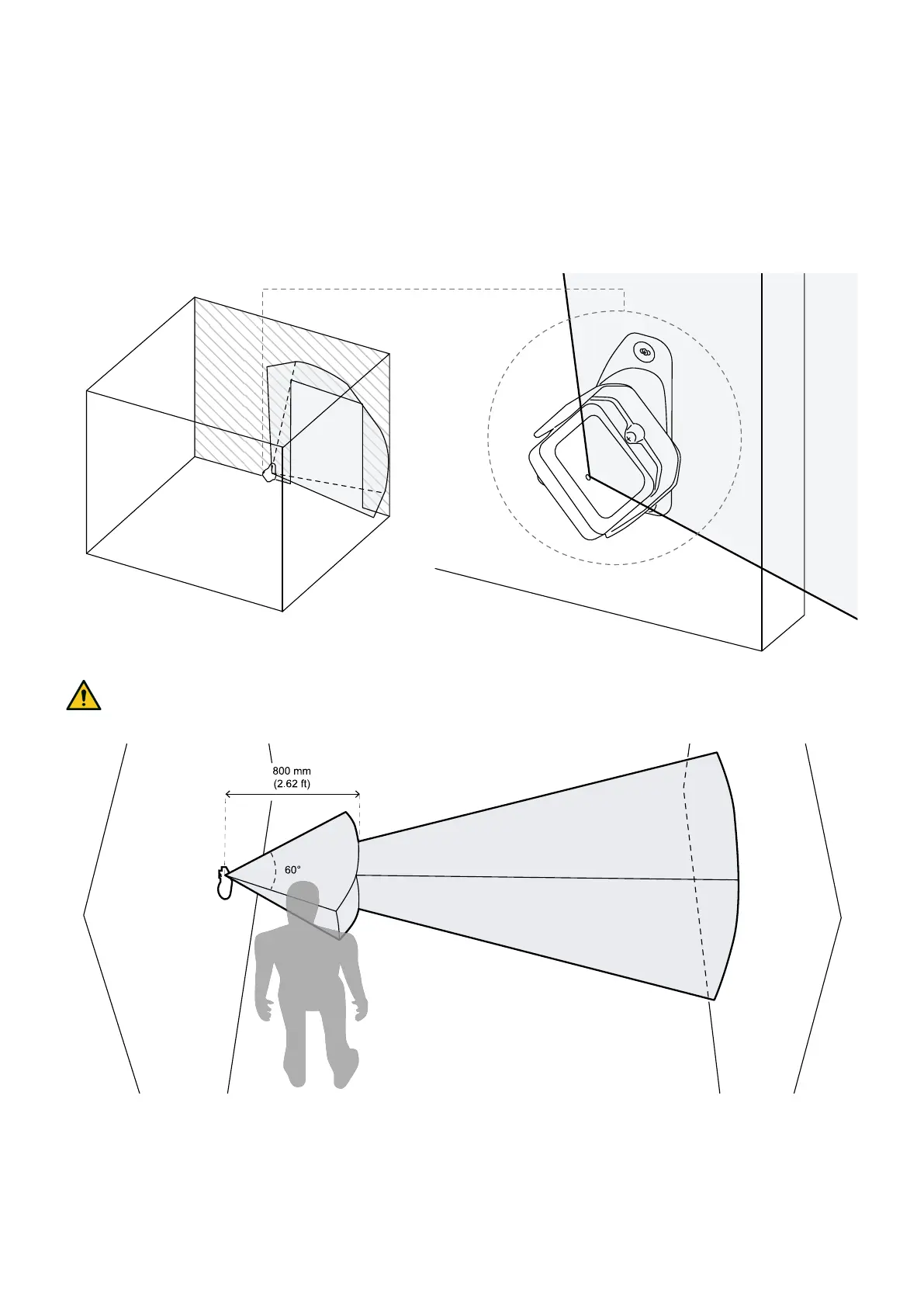

Below is an example:
WARNING! The angular coverage in the first 800 mm (31.5 in) of the field of view must be at least
60°. If this specification cannot be respected, take precautions to avoid the access of a human in the
first 800 mm (31.5 in) of the field of view.
7.6.3 For restart prevention function
Below are some recommendations for the sensor positioning for the restart prevention function:
l
The installation height (from the ground to the center of the sensor) must be greater than or equal to 15 cm
(5.9 in).
