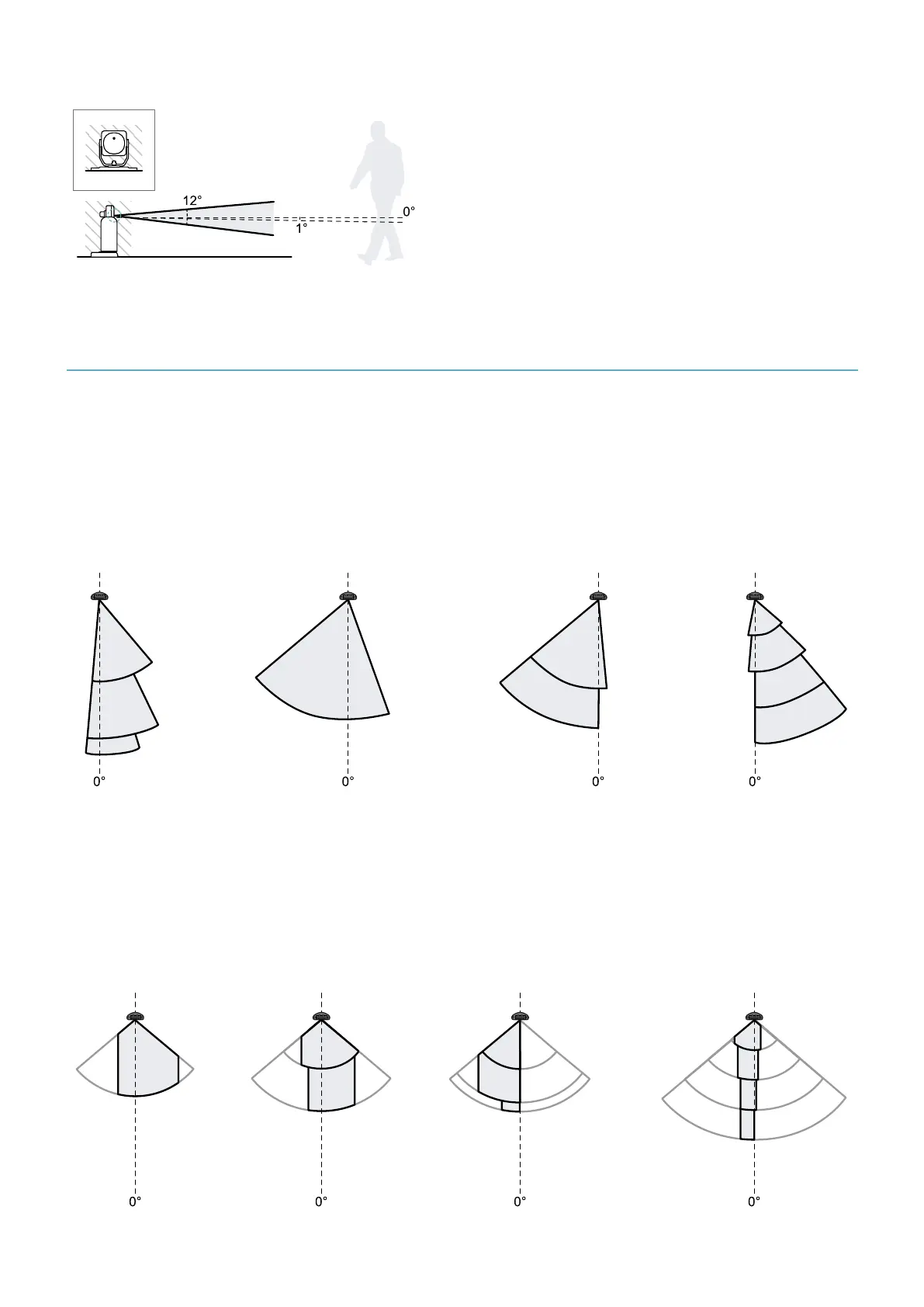

Side view with sensor inclination 0°.
7.3 Advanced field of view (5.x sensorsonly)
7.3.1 Introduction
For each sensor, two field of view shapes are available:
l
Classic
l
Corridor
7.3.2 Classic field of view
The classic shape allows you to choose the standard shape of the field of view and, if desired, to make it
asymmetric. Each detection field can have its own symmetric/asymmetric angular coverage.
Conditions:
l
The sensor axis must always be included in all the detection fields.
l
The angular coverage of each detection field must be wider than, or equal to, the angular coverage of the
following detection fields.
l
The minimum field of view width is 10°.
7.3.3 Corridor field of view
The corridor shape allows to customize the shape of the field of view. Starting from the standard shape with
maximum angular coverage, it is possible to crop it on the side with two flat surfaces parallel to the axis of the
sensor. Each detection field can have its own corridor width.
