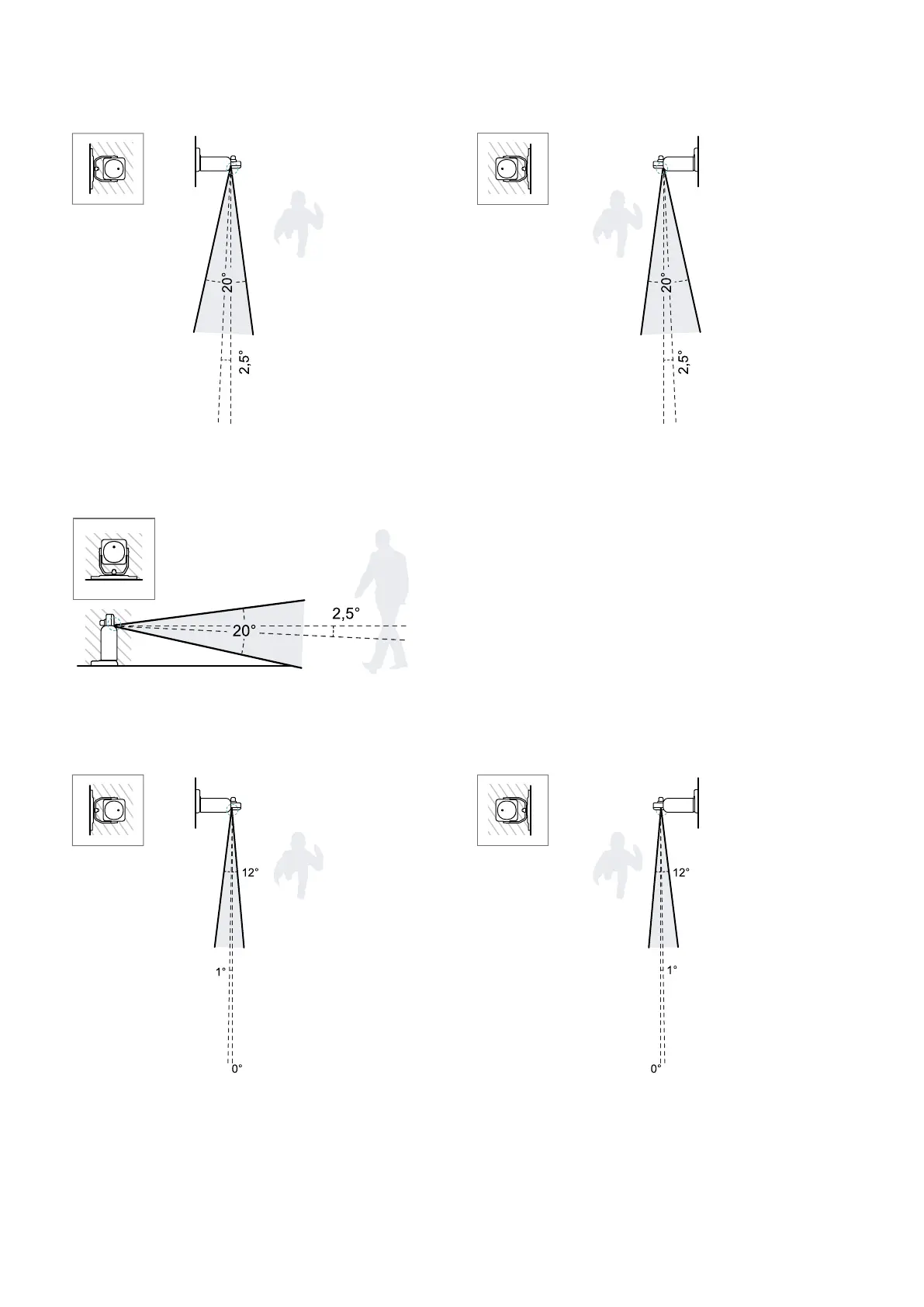

7. Sensor position
Offset 2.5°
Top view with sensor inclination 0°.
Top view with sensor inclination 0°.
Side view with sensor inclination 0°.
Offset 1°
Top view with sensor inclination 0°.
Top view with sensor inclination 0°.
