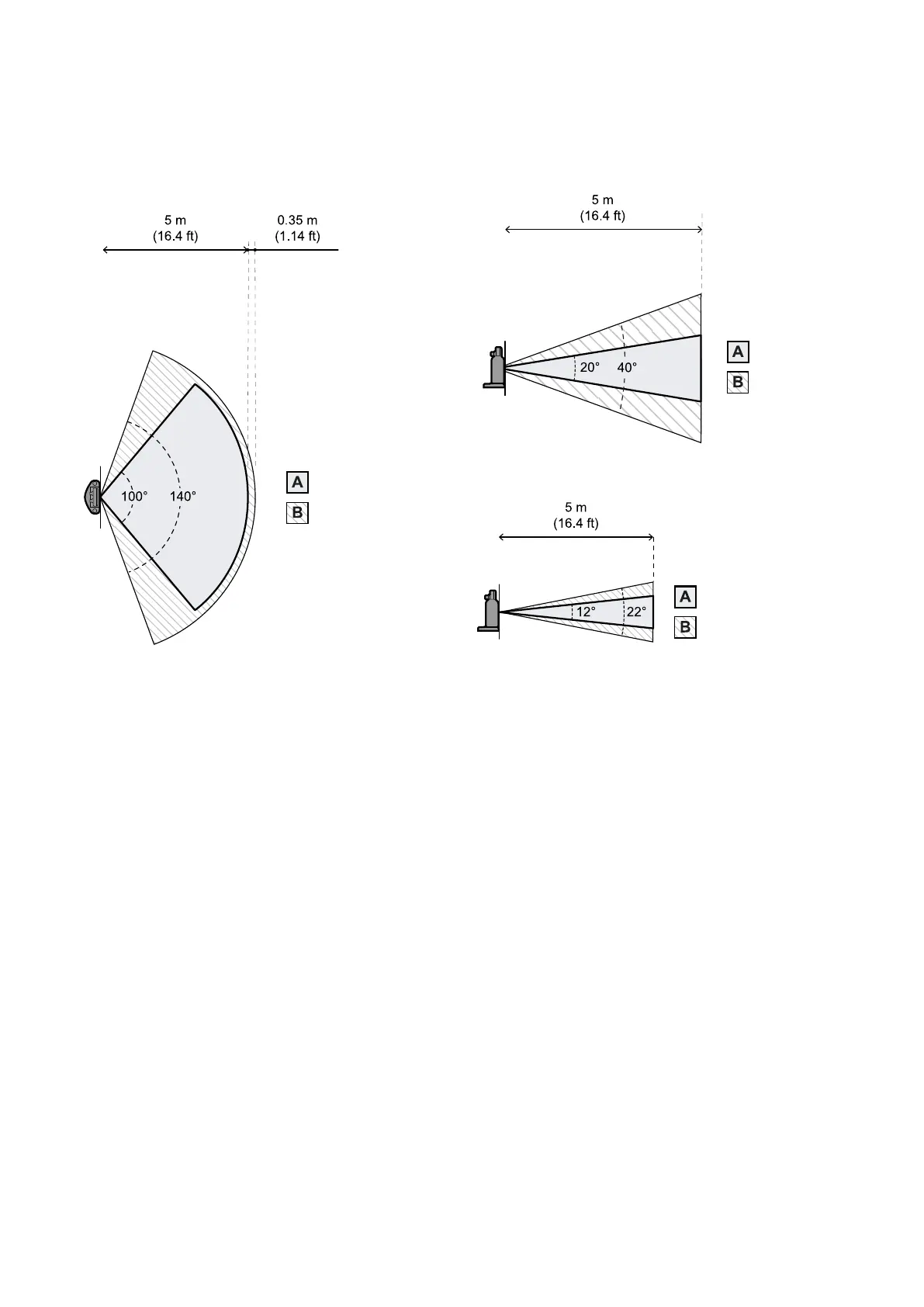

7.2.4 Dimensions for the restart prevention function
Note: the tolerance area dimensions described are related to the detection of humans.
The horizontal tolerance area is 40° greater than the angular coverage set.
Top view
Side view S201A model
Side view S203A model
7.2.5 Position of the field of view
The field of view is tilted of the following degrees:
l
2.5° for S201A model
l
1° for S203A model
To understand the actual position of the sensor field of view consider the LED position:
l
left with sensor LED on the right (with respect to the sensor center, facing the sensor)
l
right with sensor LED on the left (with respect to the sensor center, facing the sensor)
l
downward with sensor LED up
7. Sensor position
