8. Installation and use procedures

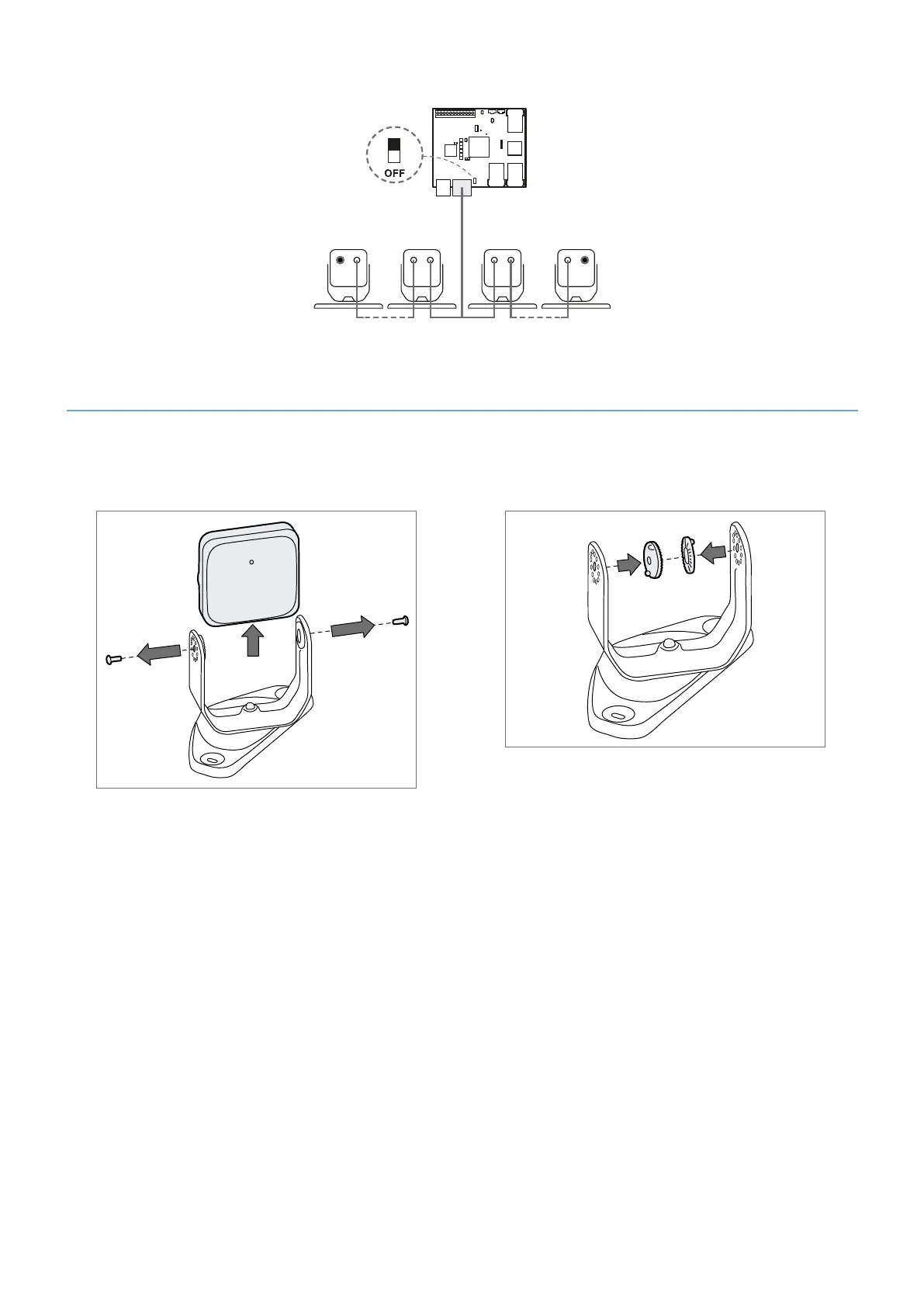

Chain with control unit inside the chain and two sensors with bus terminator
8.3 Set the sensor inclination with a 1° precision
8.3.1 Procedure
1. Remove the tamper-proof screws and remove
the sensor from the bracket.
2. Remove the internal adjustment ring from the
bracket.
