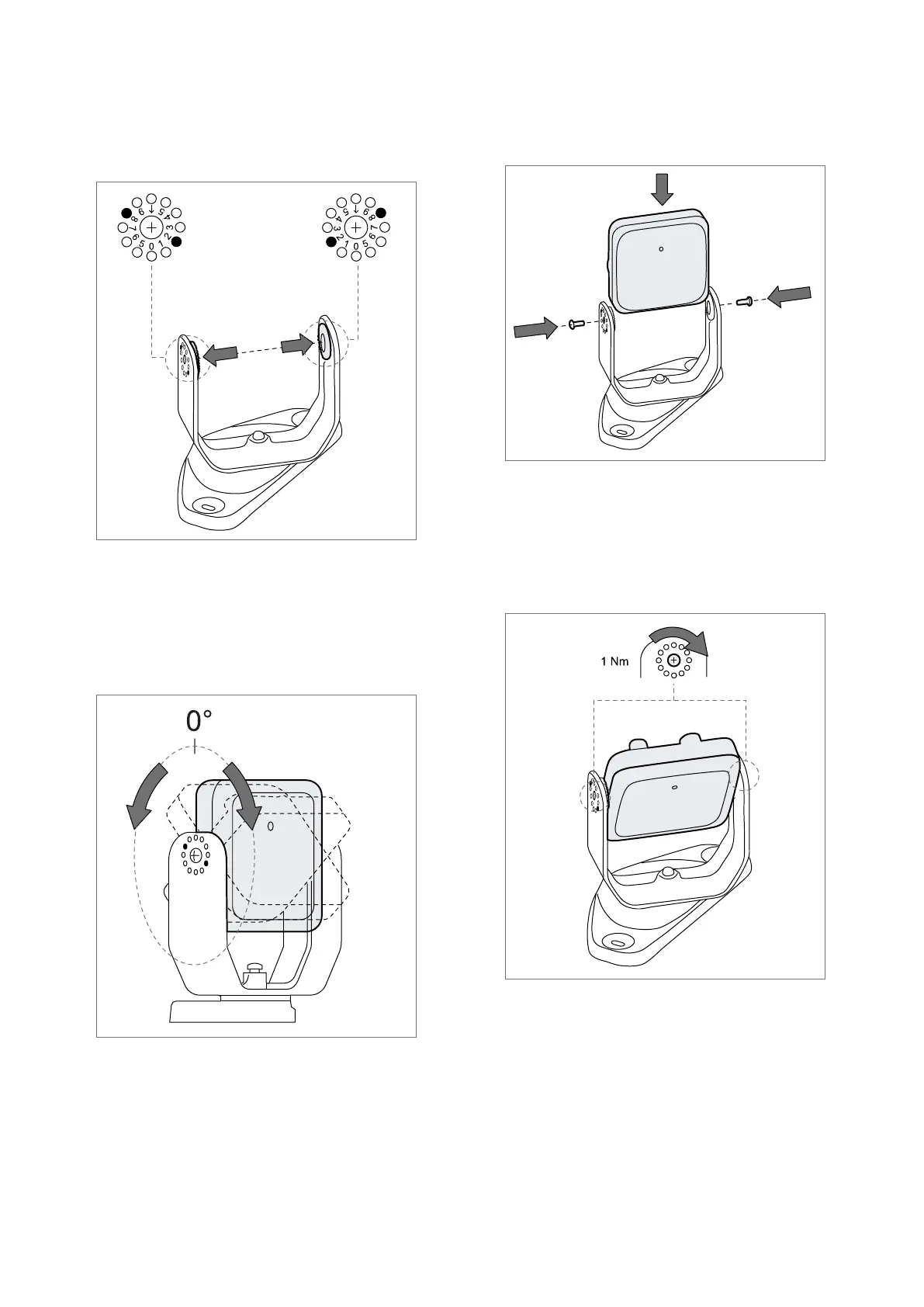

3. Reinsert the adjustment ring in the bracket

holes according to the unit value of the desired

inclination degrees (see "How to choose the

adjustment ring position" on the next page).

4. Insert the sensor and the tamper-proof screws

in the bracket (see "How to insert the sensor"

on the next page).

5. Tilt the sensor downward or upward the

number of notches corresponding to the tens

place value of the desired angle (for example,

for an inclination angle of +38°, the tens place

value is 3: tilt the sensor upward three

notches).

6. Tighten the screws.
