8. Installation and use procedures
8.3.2 How to choose the adjustment ring position

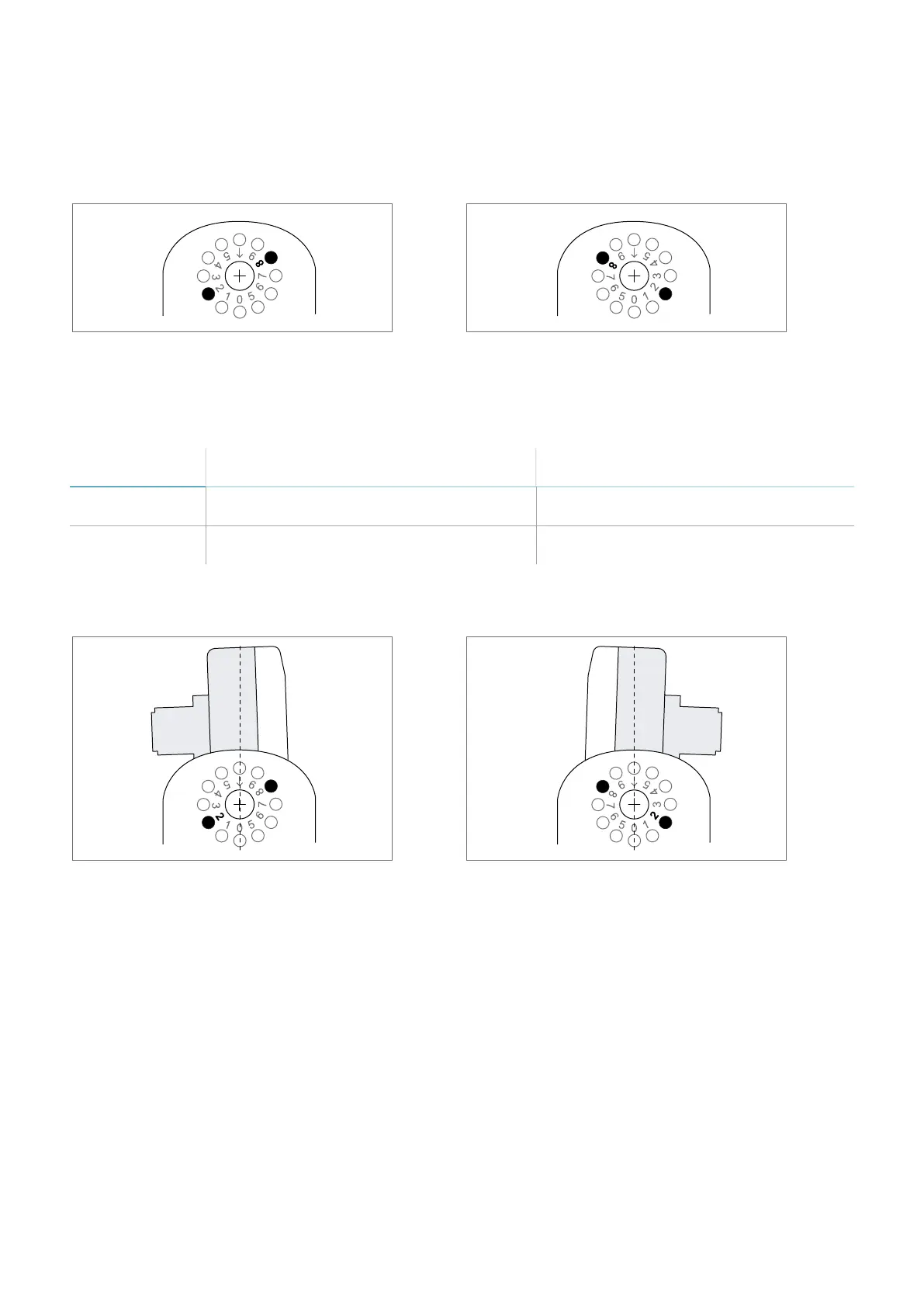

On both sides of the bracket, insert the adjustment ring in the hole corresponding to the desired degree unit
value (0-9°).
For example, for 8° (upward), +38° (upward) and -18° (downward) the unit value is always 8°:
Side 1 Side 2
8.3.3 How to insert the sensor
To insert the sensor in the bracket, take into account the following rules:
To tilt the
sensor...
...then insert the sensor as follows See
upward with the rear of the case facing the desired
angle
"Example 1 (upward): +62°" below
downward with the front of the case facing the desired
angle
"Example 2 (downward): -37°" on the next
page
Example 1 (upward): +62°
In this example, the rear of the case is facing the following angles: 1°, 2°, 3°, 4°, 5°.
Side 1
Side 2
