3.5.2 Comparison between 3.x sensors and 5.x sensors
Based on the firmware version, the sensors can be grouped as follows:
Model Type Configuration of the field of view
3.x
sensors
S201A -
l
detection field (from 1 to 4)
l
angular coverage
l
detection distance
5.x
sensors
S201A -W
l
detection field (from 1 to 4)
l
angular coverage
l
detection distance
l
classic and corridor shape, see "Advanced field of view (5.x sensorsonly)" on
page57.
S203A -W
3.5.3 Functions
The sensors perform the following functions:
l
Detect motion in their field of view.
l
Send the motion detection signal to the control unit through CAN bus.
l
Signal to the control unit through CAN bus the failures or faults detected on the sensor during diagnostics.
3.5.4 2-axes bracket

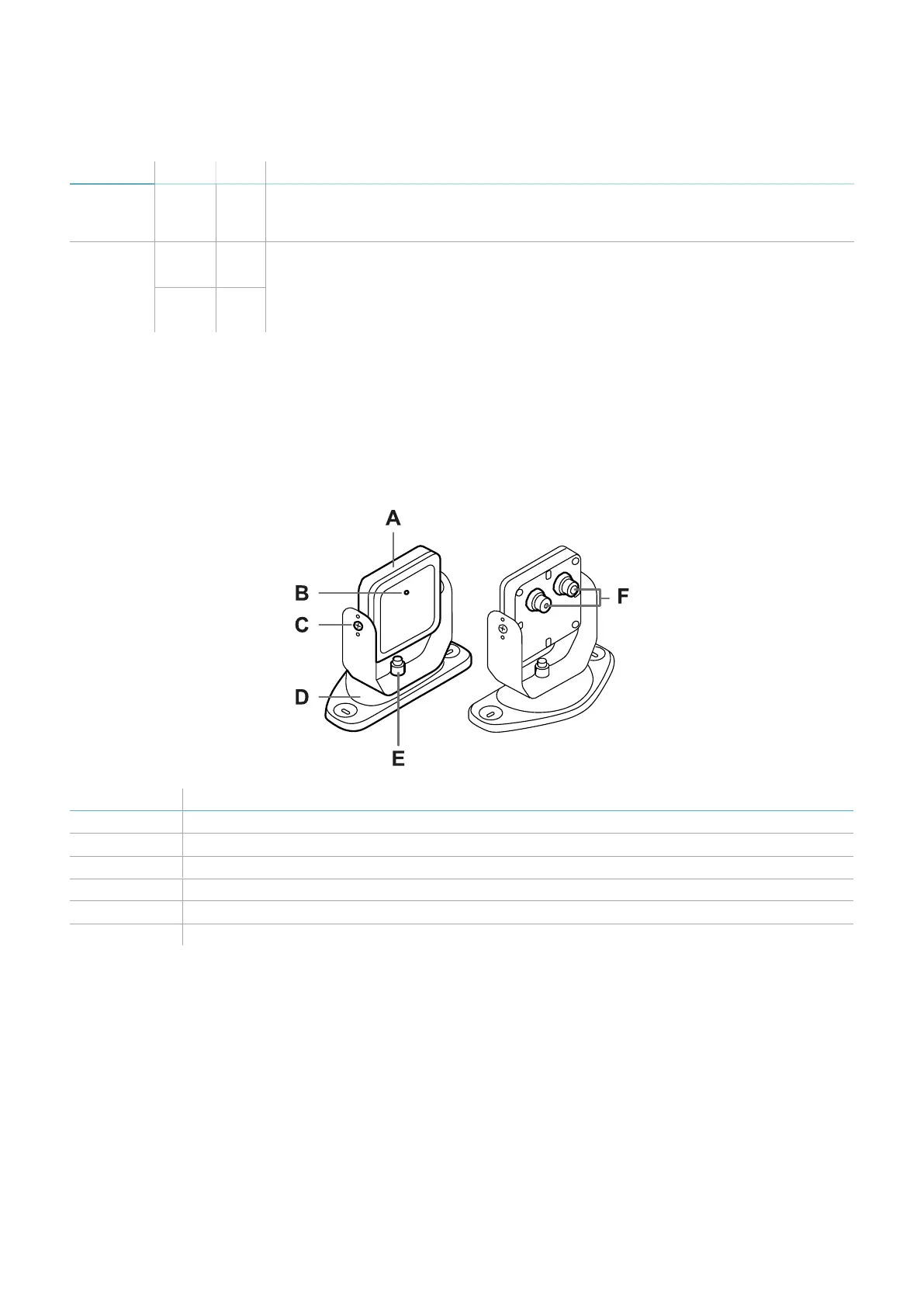

Part Description
A Sensor
B Status LED
C Tamper-proof screws to position the sensor at a specific angle around x-axis (tilt 10° steps)
D Mounting bracket
E Screw to position the sensor at a specific angle around y-axis (pan 10° steps)
F Connectors for connecting the sensors in a chain and to the control unit
