4. Functioning principles
WARNING! Configure the detection fields and associate them with the dual channel safety outputs
according to the risk assessment requirements.
4.2.2 Detection field parameters
These are the programmable parameters for each detection field:
l
angular coverage
l
detection distance
l
safety working mode (Access detection and restart prevention or Always-on access detection) (see
"Safety working modes and safety functions" on page42)
l
restart timeout
l
static object detection option
l
only for 5.x sensors, Advanced field of view shape
4.2.3 Angular coverage

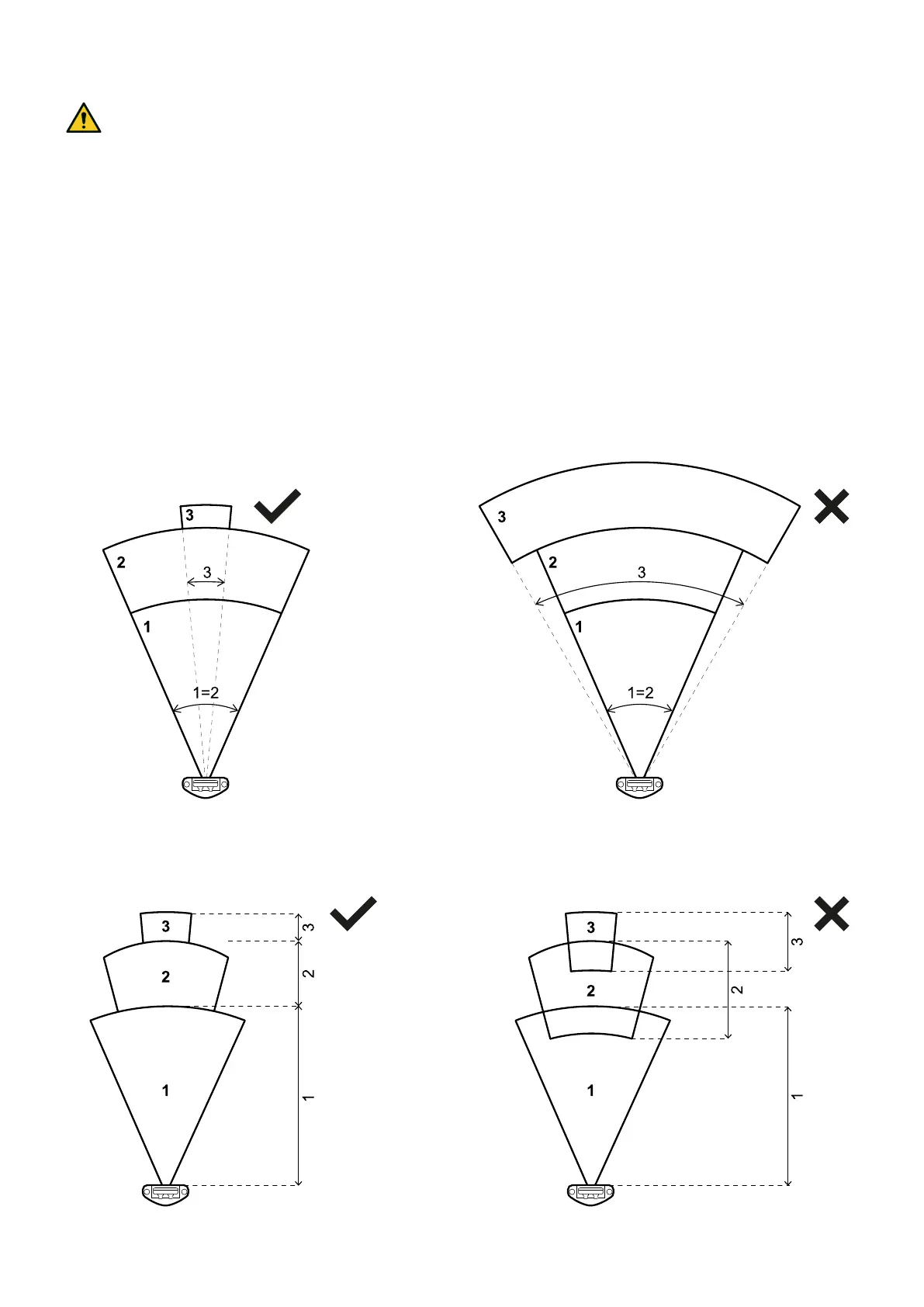

The angular coverage is in a range from 10° to 100° for the entire field of view.
The angular coverage of the detection field must be wider than, or equal to, the angular coverage of the following
detection fields.
4.2.4 Detection distance
The detection distance of the first detection field starts from the sensor. The detection distance of one field starts
where the one of the previous field ends.
